Adding Couchbase Cluster Cluster

eG Enterprise cannot auto-discover Couchbase Cluster. This implies that you need to manually add the component for monitoring. The steps for manually adding the Couchbase Cluster component are detailed below:

  1. Login to the eG administrative interface.

  2. Click on the Add Component button in the right corner of the Components at a Glance page that appeared or follow the Infrastructure -> Components -> Add/Modify menu sequence.

  3. Then, select the Couchbase Cluster as the Component type and click the Add New Component button. Figure 1 will then appear.

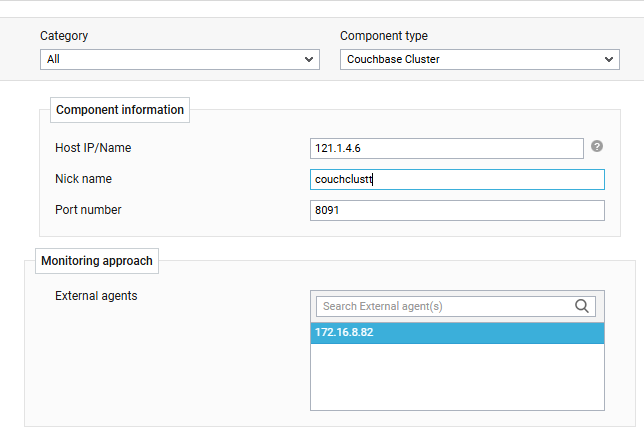

    Figure 1 : Adding a Couchbase Cluster for monitoring

  4. In Figure 1, provide the Host IP/Name of the Couchbase Cluster to be monitored. Then, provide a Nick name for the server.

  5. Finally, click the Add button to add the server for monitoring.

  6. Once the Couchbase Cluster component is added successfully, you will be again redirected to the Components page (see Figure 2). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

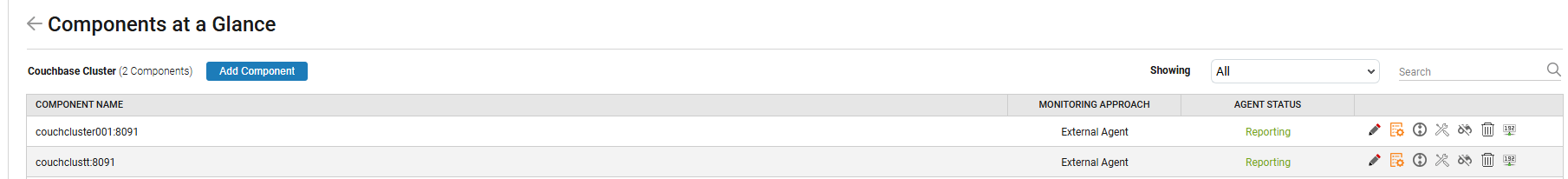

    Figure 2 : Configuring the Couchbase Cluster component

  7. To collect the performance metrics, you may need to manually configure the tests that are mapped to the Couchbase Cluster. To configure the tests that need manual configuration, click on the icon in Figure 2. This will lead you to the Specific Test Configuration page where the unconfigured tests for the Couchbase Cluster will be listed in the Unconfigured Tests list box.

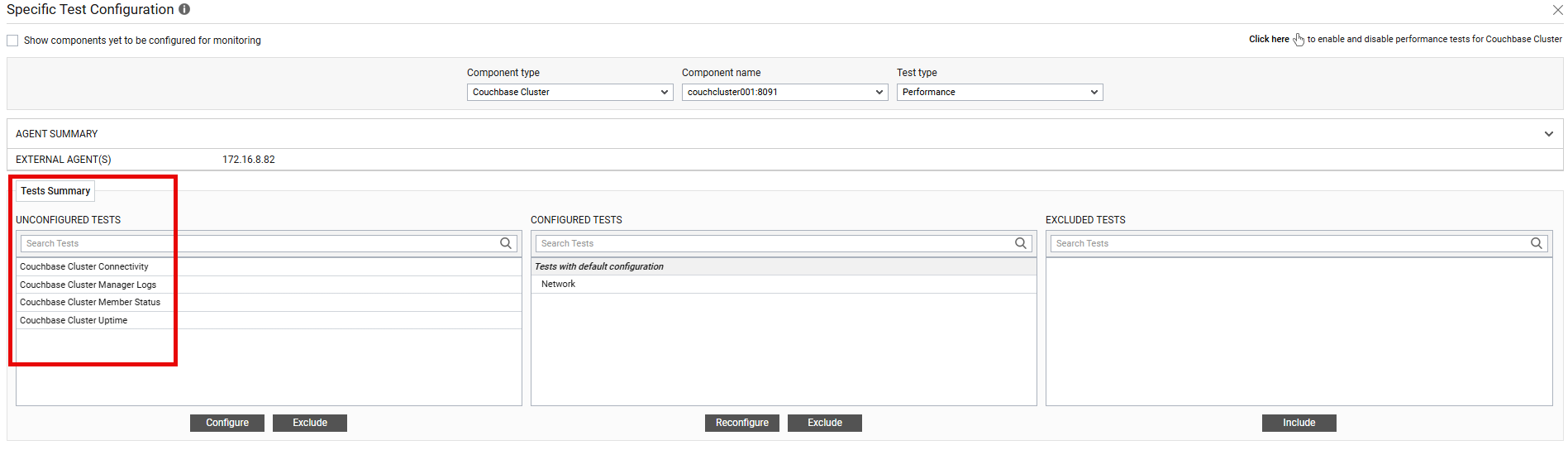

    Figure 3 : The list of unconfigured tests for the Couchbase Cluster component

  8. Now, click on the Couchbase Cluster Connectivity test to configure it. To know how to configure this test, refer to Couchbase Cluster Connectivity Test .

    The tests specific to Couchbase Cluster  tests will be listed in CONFIGURED TEST list box.

  9. Once all the tests are configured, switch to the Monitor tab to view the performance metrics reported by the tests.
