Retrieving Historical Data of a Measure
To figure out whether the target environment is functioning without any glitches, more often than not, administrators tend to monitor the performance of certain key measures over a period of time. Using the eG REST API, administrators are befitted in monitoring the performance of the measures over a period of time without logging into the eG console. The table below specifies the parameters that should be used to retrieve the historical data of the measures.
URL: http://<eG manager IP:port>/api/eg/analytics/getHistoricalData
Method: POST
Content-Type: application/json
Parameters | Key values | Example |
---|---|---|
Headers |
managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port> user: eG username or domain/eG username pwd: Base64 encoded password |
{ "timeline":"1 hour", "componentName":"TEZ-MSSQL-DB:1433", "componentType":"Microsoft SQL", "test":"Network", "measure":"Packet Loss" } Example for retrieving historical data of a measure pertaining to an Oracle Database Server: { "timeline":"1 day", "componentType":"Oracle Database Server" "componentName":"Oradb:1521:egora", "test":"Oracle Sessions", "measure":"Active Sessions" } |
Body |
Default: { "timeline":"Timeline for retrieving the measure data (in hours/days/weeks)", "componentName":"Hostname of the component:Port/Null", "componentType":"Component Type", "test":"Test name", "measure":"Measure name", "showDisplayName":true/false" } If current measures of the Oracle Database server is to be retrieved, then the Key values should be specified as follows: { "timeline":"Timeline for retrieving the measure data (in hours/days/weeks)", "componentName":"Hostname of the component:Port:SID", "componentType":"Component Type", "test":"Test name", "measure":"Measure name", "showDisplayName":true/false" } |
Type | Code | Example Response |
---|---|---|
JSON |
200 |
{ "Network": [ { "date": "Sep 01, 2022 17:15:50", "value": "100" }, { "date": "Sep 01, 2022 17:22:44", "value": "100" }, . . . ] } |
Type | Code | Content |
---|---|---|
JSON |
401 UNAUTHORIZED |
{"code": 401,"error": "Invalid username or password"} |
JSON |
400 BAD REQUEST |
You may receive one of the following responses: {"code": 400,"error": " Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or) {"code": 400,"error": " Bad Request. Manager Url,Username,password is not provided"} (or) {"code": 400,"error": " Bad Request. Please refer EG REST API documentation and add required parameters for this API."} (or) {"code": 400,"error": "Component Name or Component Type or Measure or Test or Timeline is not provided"} (or) {"code": 400,"error": "Component not associated with this user"} (or) {"code": 400,"error": "No components associated for this user"} (or) {"code": 400,"error": "Provide a space between value and unit in Timeline"} (or) {"code": 400,"error": "The test is not available with this component type"} (or) {"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API"} |
JSON |
500 Server Error |
{"code": 500,"error": " Server Error "} |

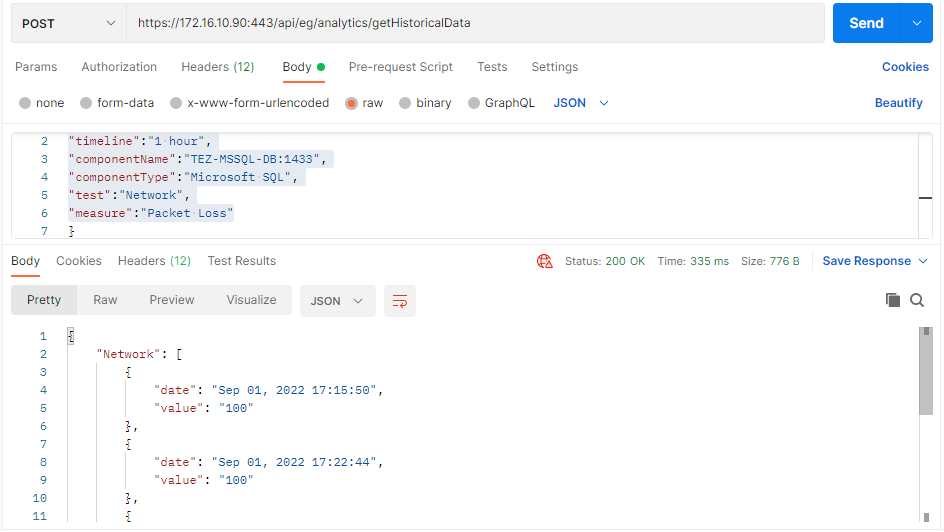

Figure 1 : Retrieving historical data of a measure using Postman REST Client
Retrieving Historical Data of a Measure using cURL
To retrieve the historical data of a measure using cURL, the command should be specified in the following format:
curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getHistoricalData" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type:application/json" --data-raw "{\"timeline\":\"Timeline for retrieving the measure data (in hours/days/weeks)\",\"componentType\":\"Component Type\",\"componentName\":\"Component name:Port\",\"test\":\"Test name\",\"measure\":\"Measure name\"}"

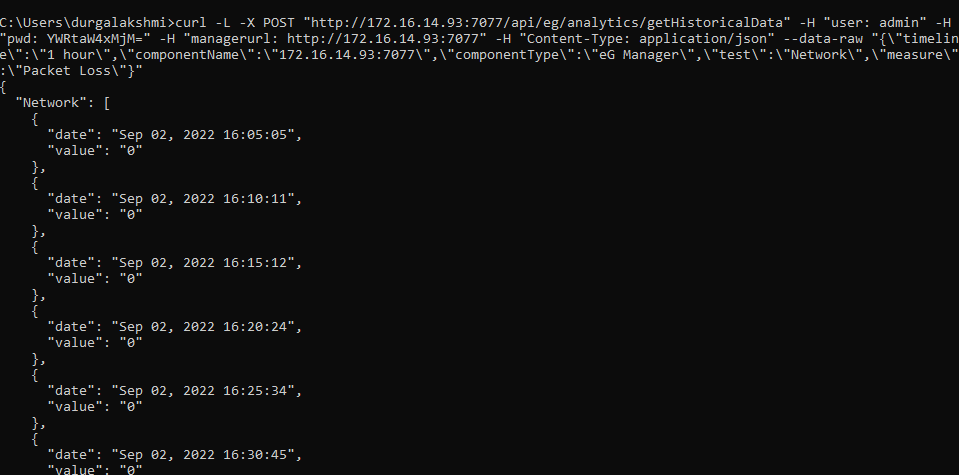

Figure 2 shows an example of retrieving the current measures of a component using cURL.
Figure 2 : Retrieving historical data of a measure using cURL
