Configuring Tests for APC ATS Component

After adding APC ATS component, you will be redirected to the Components page (see Figure 83). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

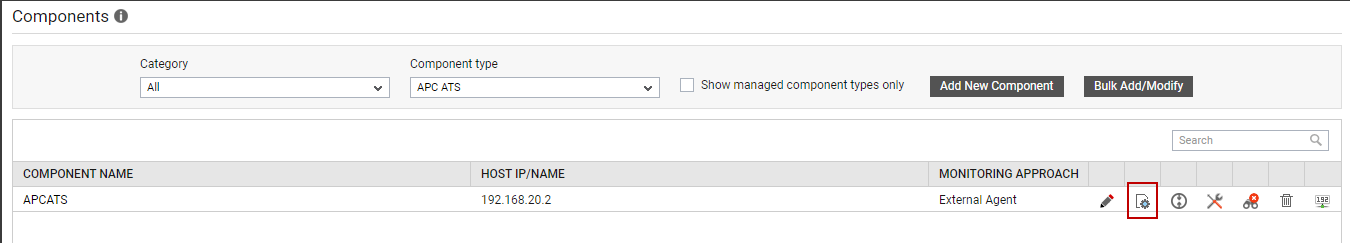

Figure 83 : Listing the newly added APC ATS component

To collect the performance metrics, you may need to configure the tests that are mapped to the APC ATS component. To configure the tests that need manual configuration, click on the icon in Figure 83.

Figure 84 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

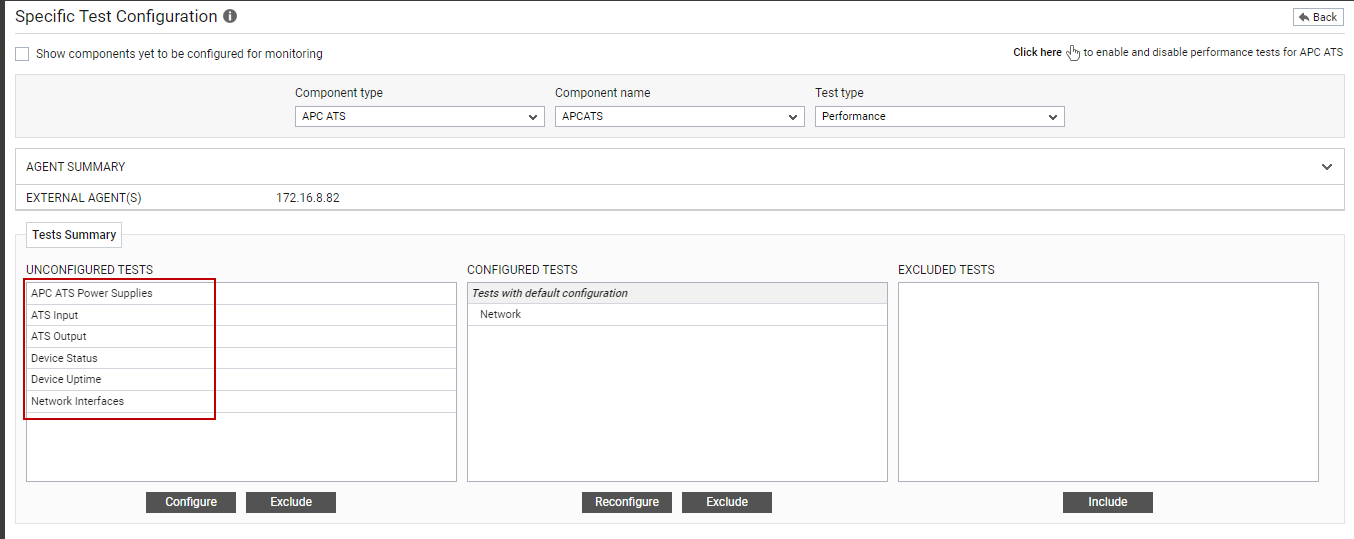

Figure 84 : The list of unconfigured tests for the APC ATS component

Click on any of the tests in Figure 84 to configure it. For instance, if you click on the Device Status test, Figure 85 will appear.

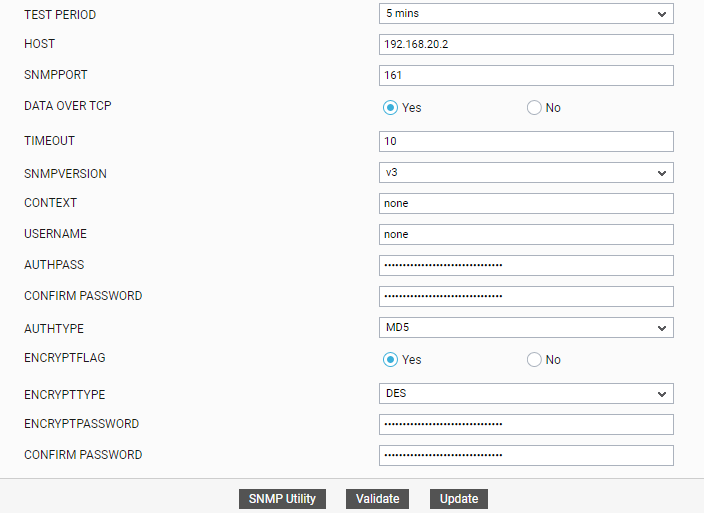

Figure 85 : Configuring the Device Status test

To know how to configure this test, refer to Device Status Test.

Click the Update button in Figure 85 to update the test configuration. This will automatically configure all the other unconfigured tests for the APC ATS component.
