Retrieving Configuration Changes
Using the eG REST API, administrators can figure out the configuration changes that were made to one/more components managed in the eG manager without logging into the eG console. The table below specifies the URL and the parameters that should be used to retrieve the health of the infrastructure.
URL: http://<eG manager IP:port>/api/eg/analytics/getConfiguration Changes
Method: POST
Content-Type: application/json
| Parameters | Key values | Example |
|---|---|---|
|
Headers |
managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port> user: eG username or domain/eG username pwd: Base64 encoded password |
Example to retrieve the configuration changes of the components managed in the target environment: { "filterBy":"component", "timeline":"3 days" } Example to retrieve the configuration changes made to the components belonging to a zone: { "filterBy":"zone", "zone":"SENTHIL-Oracle.Zone" "timeline":"3 days" } |
|
Body |
Default: { "filterBy":"zone/service/segment/component", "zone":"Name of Zone", "service":"Name of Service", "segment":"Name of Segment", "timeline":"Timeline for retrieving the data (in hours/days/weeks)" } |
| Type | Code | Content |
|---|---|---|
|
JSON |
200 |
{ "totalChanges": 5, "details": [ { "componentName": "Mic_AD_Cnct_ADDS_SEP1:443:Microsoft Azure AD Connect", "changes": 1, "changesIN": "Software" }, { "componentName": "Mic_AD_Cnct_ADFS_SEP1:443:Microsoft Azure AD Connect", "changes": 1, "changesIN": "Software" }, { "componentName": "Windows1:Microsoft Windows", "changes": 1, "changesIN": "Software" }, { "componentName": "Windows2:Microsoft Windows", "changes": 1, "changesIN": "Software" }, { "componentName": "ms_wndws_6PM_sep01:Microsoft Windows", "changes": 1, "changesIN": "Software" } ] } |
| Type | Code | Content |
|---|---|---|
|
JSON |
401 UNAUTHORIZED |
{"code": 401,"error": "Invalid username or password"} |
|
JSON |
400 BAD REQUEST |
You may receive one of the following responses: {"code": 400,"error": "Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or) {"code": 400,"error": "Bad Request. Manager Url,Username,password is not provided"} (or) {"code": 400,"error": "Provide a space between value and unit in Timeline"} (or) {"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API."} (or) {"code": 400,"error": "filterBy is not provided"} (or) {"code": 400,"error": "Invalid value for FilterBy"} (or) {"code": 400,"error": "Service name is not available/ not associated with this user"} (or) {"code": 400,"error": "Zone name is not available/ not associated with this user"} (or) {"code": 400,"error": "Segment name is not available/ not associated with this user"} |
|
JSON |
500 Server Error |
{"code": 500,"error": "Server Error. Please check /manager/logs/error_log in the installation directory for more informatio"} |

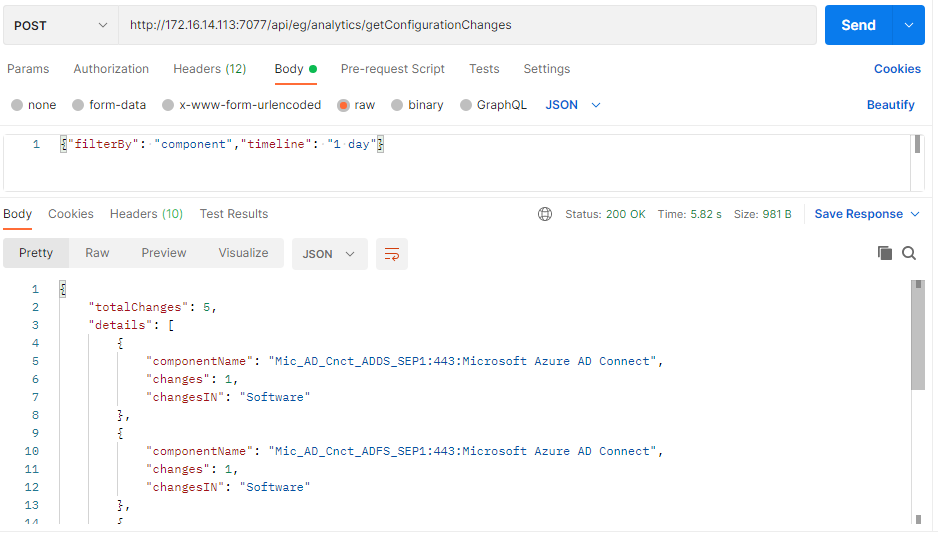

Figure 1 : Retrieving configuration changes made to the components using Postman REST Client
Retrieving Configuration Changes using cURL
To retrieve the configuration changes that were made to one/more components managed in the eG manager using cURL, the command should be specified in the following format:
curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getConfigurationChanges" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H"Content-Type:application/json" --data-raw "{\"filterBy\":\"zone/service/segment/component\",\"zone\":\"Name of zone\",\"service\":\"Name of service\",\"segment\":\"Name of segment\",\"timeline\":\"Timeline for retrieving the data (in hours/days/weeks)\"}”
Figure 2 shows an example of retrieving the configuration changes made to the components managed in the target environment using cURL.

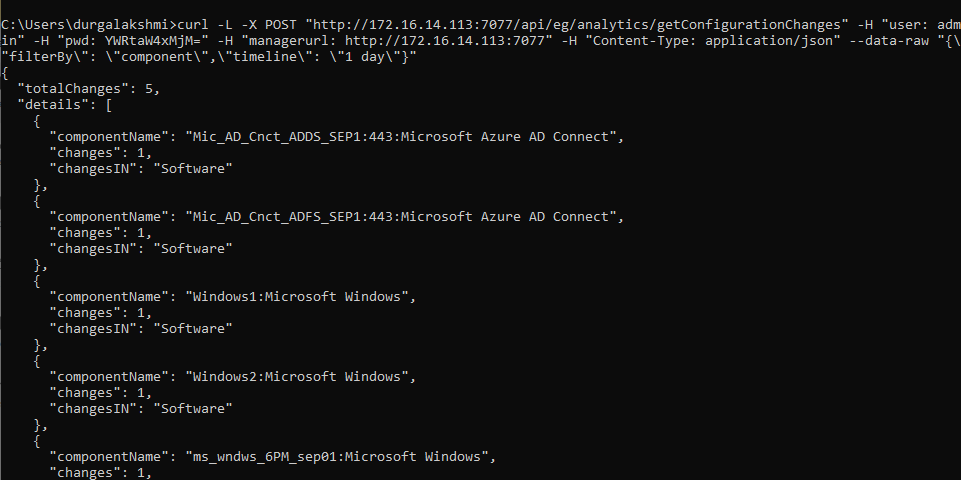

Figure 2 : Retrieving the configuration changes made to the components using cURL
