Managing the 3Com CoreBuilder Switch

The eG Enterprise cannot automatically discover a 3Com CoreBuilder switch so that you need to manually add the component for monitoring. To manage a 3Com CoreBuilder switch component, do the following:

  1. Log into the eG administrative interface.
  2. Follow the Components -> Add/Modify menu sequence in the Infrastructure tile of the Admin menu.
  3. In the COMPONENTS page that appears next, select 3Com Core Builder as the Component type. Then, click the Add New Component button. This will invoke Figure 1.
  4. Adding a 3Com Core Builder Switch

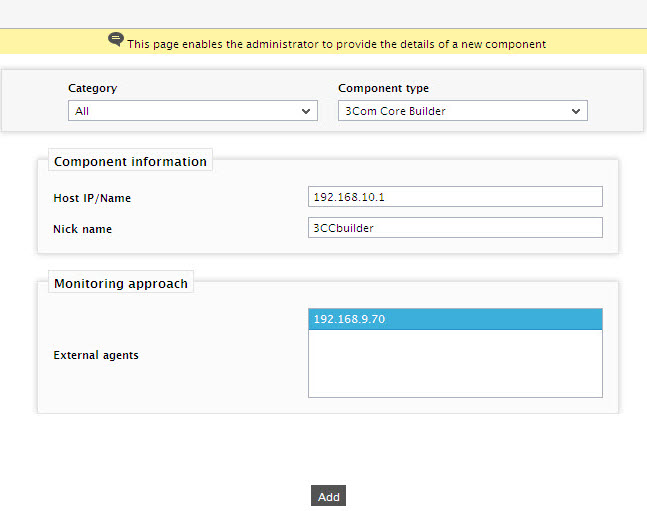

    Figure 1 : Adding a 3Com Core Builder switch component

  5. Specify the Host IP/Name of the 3Com Core Builder switch component. Then, click Add button to register the changes.
  6. When you attempt to sign out, a list of unconfigured tests appears (see Figure 2).

    Unconfigured Tests for 3Com Core Builder Switch

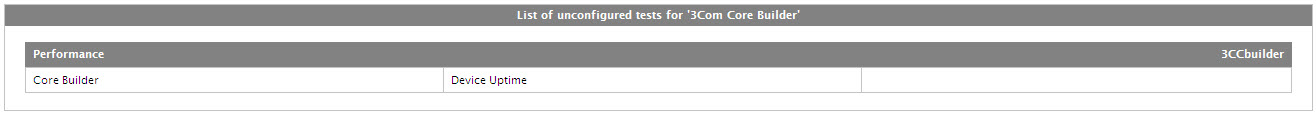

    Figure 2 : A list of unconfigured tests

  7. Click on the Core Builder test to configure it. This test monitors critical metrics relating to each of the network interfaces of a 3Com Core Builder switch. To know how to configure the test, click here
  8. Finally, sign out of the eG administrative interface.
