The ATS Hardware Layer

The tests mapped to this layer monitor the following:

  • APC ATS power supplies;

  • Input load to both sources A and B;

  • Output load of APC ATS device

  • Overall status of the switch and its core hardware components such as front panel.

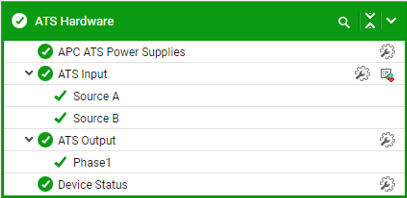

Figure 3 : The list of tests associated with the ATS Hardware layer
