Browser Activity – OS Test

When a user complains of a cloud-based virtual desktop slowdown, administrators will have to instantly figure out if that desktop is experiencing a resource crunch, and if so, which process/application on the desktop is contributing to it. One of the common reasons for CPU/memory contentions and handle leaks on a desktop is web browsing! If a user to a virtual desktop browses resource-intensive web sites, it is bound to result in over-usage of the resources allocated to that desktop, which in turn degrades the performance of not just that desktop but even the other desktops on that host. While the System Details – OS test can lead administrators to the exact browser application that is consuming the CPU/memory resources of the desktop excessively, it does not provide visibility into the precise websites that were been browsed when the resource contention occurred. This is where the Browser Activity – OS test helps.

For each web browser that is being accessed by a user per cloud-based desktop, this test reports how every browser uses the allocated CPU, memory, and disk resources and reveals the number and URLs of the web sites that are being accessed using each browser. This way, the test not only points administrators to resource-hungry browsers, but also indicates which web sites were being accessed using that browser.

Target of the test : An Amazon Cloud Desktop Group

Agent deploying the test : A remote agent

Outputs of the test : One set of results for each browser used by every user logged into a desktop

Configurable parameters for the test
Parameter Description

Test Period

How often should the test be executed.

Host

The nick name of the Amazon Cloud Desktop Group component for which this test is to be configured.

Port

Refers to the port at which the specified host listens to. By default, this is NULL.

Inside View Using

To obtain the 'inside view' of performance of the desktops - i.e., to measure the internal performance of the cloud-based virtual desktops - this test uses a light-weight eG VM Agent software deployed on each of the desktops. Accordingly, this parameter is by default set to eG VM Agent.

Report Powered OS

If this flag is set to Yes (which is the default setting), then the 'inside view' tests will report measures for even those desktops that do not have any users logged in currently. Such desktops will be identified by their name and not by the username_on_desktopname. On the other hand, if this flag is set to No, then this test will not report measures for those desktops to which no users are logged in currently.

Report By User

This flag is set to Yes by default. The value of this flag cannot be changed. This implies that the cloud-based virtual desktops in environments will always be identified using the login name of the user. In other words, in cloud environments, this test will, by default, report measures for every username_on_desktopname.

IsCloudVMs

Since this test runs for a 'Amazon Cloud Desktop Group' component, this flag is set to Yes, by default.

Show Recent Website DD

Typically, the detailed diagnosis of the Recent websites measure, if enabled, reveals the URL that is open in each browser tab of a desktop. In large cloud-based VDI environments supporting hundreds of virtual desktops and users on the cloud, collecting and storing the details of every browser tab that a user opens can increase the strain on the eG database. To avoid this, by default, this test does not collect detailed diagnostics for the Recent websites measure. Accordingly, the this flag is set to No by default. You can turn this flag on if you want, by selecting the Yes option. If this is done, then this test will collect detailed metrics for the Recent websites measure.

DD Frequency

Refers to the frequency with which detailed diagnosis measures are to be generated for this test. The default is 1:1. This indicates that, by default, detailed measures will be generated every time this test runs, and also every time the test detects a problem. You can modify this frequency, if you so desire. Also, if you intend to disable the detailed diagnosis capability for this test, you can do so by specifying none against DD frequency.

Detailed Diagnosis

To make diagnosis more efficient and accurate, the eG Enterprise embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option.

The option to selectively enable/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled:

  • The eG manager license should allow the detailed diagnosis capability
  • Both the normal and abnormal frequencies configured for the detailed diagnosis measures should not be 0.
Measurements made by the test
Measurement Description Measurement Unit Interpretation

Running browser instances

Indicates the number of instances of this browser currently running on this desktop.

Number

Use the detailed diagnosis of this measure to know how much resources were utilized by each instance of a browser, so that the resource-hungry instance can be isolated.

Recent web sites

Indicates the number of websites that were accessed using this browser on this desktop during the last measurement period.

Number

Use the detailed diagnosis of this measure to know which web sites are being accessed using a browser.

CPU utilization

Indicates the percentage CPU usage of this browser on this desktop.

Percent

Compare the value of this measure across browsers to know which browser consumed the maximum CPU on a desktop. If the value of this measure is close to 100% on that desktop, it indicates excessive CPU usage by the browser. You may then want to use the detailed diagnosis of the Recent web sites measure to know which web sites are being accessed using that browser, which caused CPU usage to soar.

Memory used

Indicates the percent usage of memory by this browser on this desktop.

Percent

Compare the value of this measure across browsers to know which browser consumed the maximum memory on a desktop. If the value of this measure is close to 100% on that desktop, it indicates excessive memory usage by the browser. You may then want to use the detailed diagnosis of the Recent web sites measure to know which web sites are being accessed using that browser, which caused CPU usage to soar.

Handles used

Indicates the number of handles opened by this browser on this desktop.

Number

Compare the value of this measure across browsers to know which browser opened the maximum number of handles on a desktop. If the value of this measure consistently increases on that desktop, it indicates that the corresponding browser is leaking memory. You may then want to use the detailed diagnosis of the Recent web sites measure to know which web sites are being accessed using that browser, which caused the memory leak.

Disk reads

Indicates the rate at which this browser read from the disks supported by this desktop.

KB/Sec

A high value for these measures indicates that the browser is generating high disk I/O. You may then want to use the detailed diagnosis of the Recent web sites measure of this browser to know which web sites on the browser are responsible for the high disk I/O.

Disk writes

Indicates the rate at which this browser read from the disks of this desktop.

KB/Sec

Disk IOPS

Indicates the rate of read and write operations performed by this browser on the disks of this desktop.

Operations/Sec

A high value for this measure indicates that the browser is generating high disk I/O. You may then want to use the detailed diagnosis of the Recent web sites measure of this browser to know which web sites on the browser are responsible for the high disk I/O.

Page faults

Indicates the rate at which page faults by the threads executing in this browser are occurring on this desktop.

Faults/Sec

Ideally, the value of this measure should be low. A high value for a browser is a cause for concern. You may then want to use the detailed diagnosis of the Recent web sites measure of this browser to know which web sites on the browser are responsible for page faults.

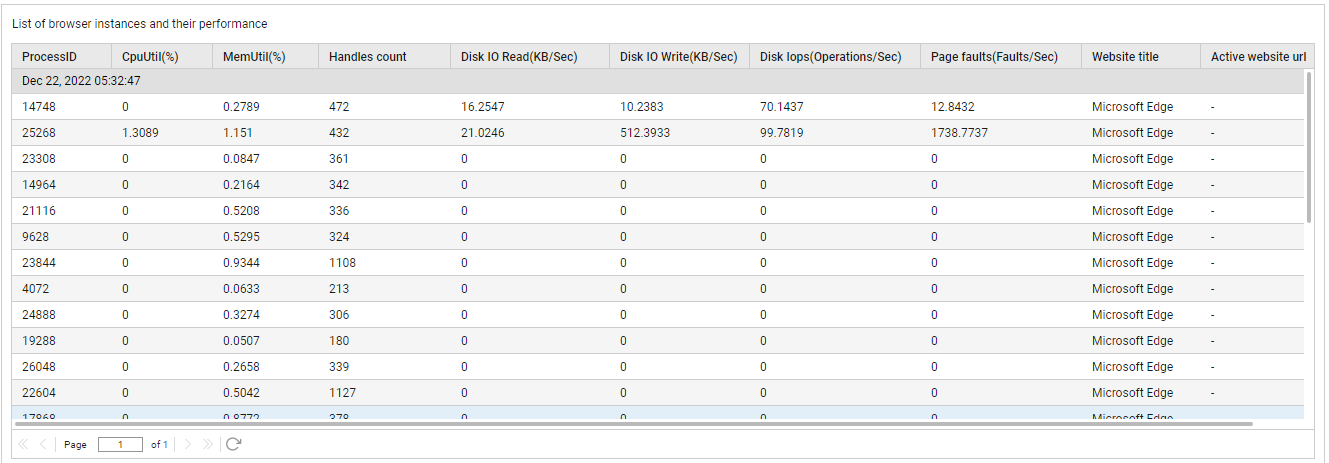

The detailed diagnosis of the Running browser instances measure reveals the process ID of each browser instance that is currently running on the desktop and the resource usage of each instance. This way, you can easily and accurately identify the instance that is consuming resources excessively.

Figure 1 : The detailed diagnosis of the Running browser instances measure

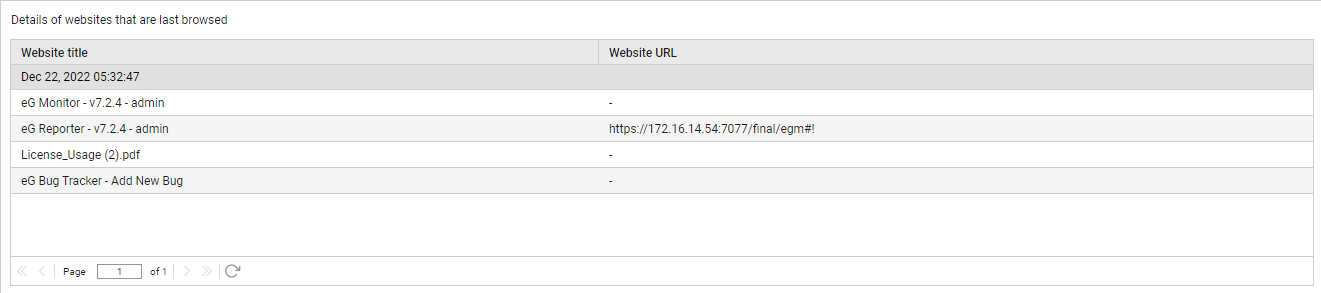

The detailed diagnosis of the Recent web sites measure reveals the names and URLs of the web sites that are being accessed using a browser.

Figure 2 : The detailed diagnosis of the Recent web sites measure
