Adding Apache Solr Component

eG Enterprise cannot auto-discover an Apache Solr. This implies that you need to manually add the component for monitoring. The steps for manually adding the Apache Solr component are detailed below:

  1. Log into the eG administrative interface.

  2. Click on the Add Component button in the right corner of the Components at a Glance page that appeared or follow the Infrastructure -> Components -> Add/Modify menu sequence.

  3. The Components page will then appear. In the Components page, select Apache Solr as the Component type and click the Add New Component button.

  4. Figure 1 will then appear.

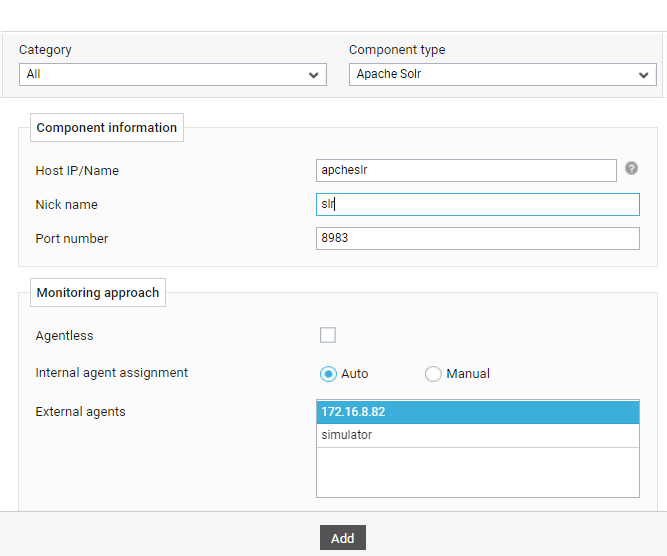

    Figure 1 : Adding a Apache Solr Component

  5. Specify the Host IP/Name and the Nick name for the Apache Solr component.

  6. Next, select the External agent that will monitor the target SAP System component.

  7. Finally, click the Add button to register the changes

  8. Once the Apache Solr component is added successfully, you will be again redirected to the Components page (see Figure 2). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

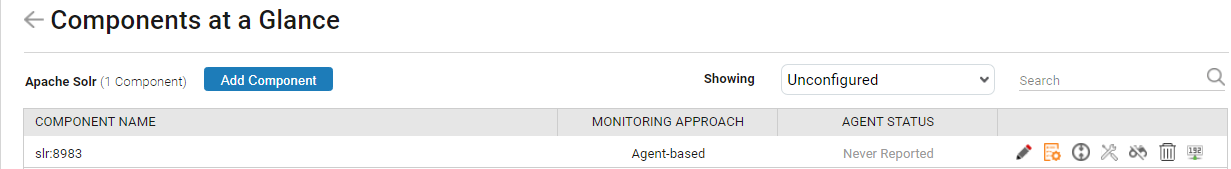

    Figure 2 : Configuring the Apache Solr component

  9. To collect the performance metrics, you may need to manually configure the tests that are mapped to the Apache Solr component. To configure the tests that need manual configuration, click on the icon in Figure 2. This will lead you to the Specific Test Configuration page where the unconfigured tests for the Apache Solr component will be listed in the Unconfigured Tests list box.

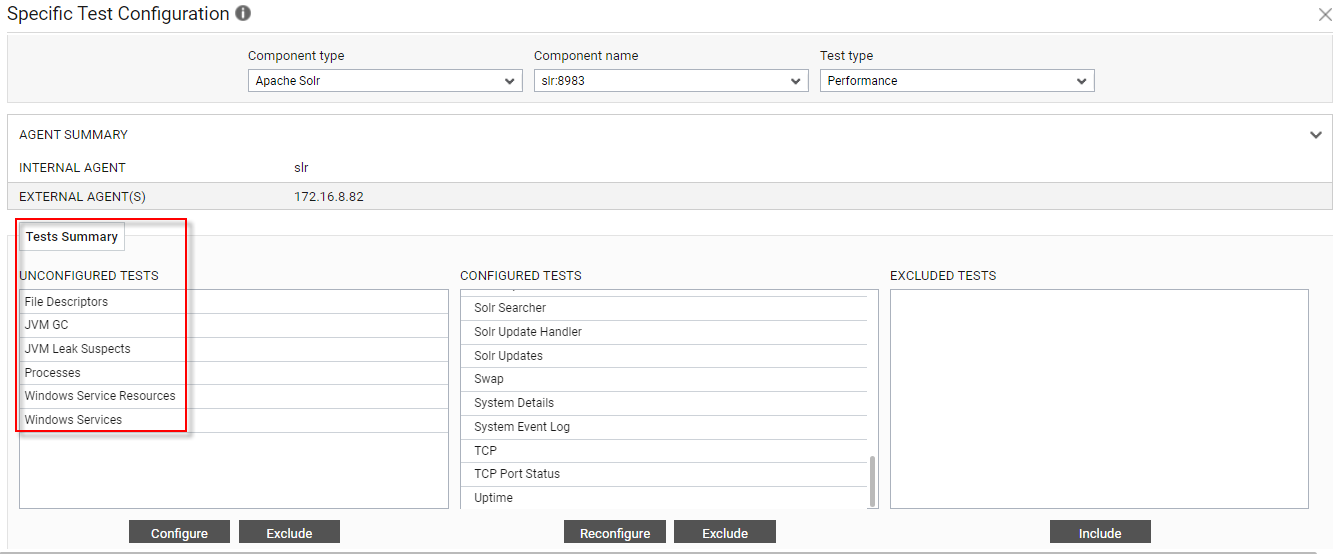

    Figure 3 : Unconfigured tests for the Apache Solr component

  10. The tests with default configuration will be listed in CONFIGURED TESTS list.To know how to configure Apache Solr related tests, refer to the Monitoring Apache Solr

  11. To configure File Descriptors, Windows Service Resources and JVM G C tests, refer to Monitoring Oracle Web Logic Application Server:

  12. To configure JVM Leak Suspects test, refer to Monitoring IBM WebSphere Liberty Server.

  13. To configure Processes and Windows Services tests, refer to Monitoring Unix-and-Windows-Servers.

  14. Once all the tests are configured, switch to the Monitor tab to view the performance metrics reported by the tests.
