Adding External Agents
Use this REST API to add external agents to the target eG manager.
URL: http://<eG manager IP:port>/api/eg/orchestration/addexternalagent
Method: POST
Content-Type: application/json
| Parameters | Key values | Example |
|---|---|---|
|
Headers |
managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port> user: eG username or domain/eG username pwd: Base64 encoded password |
Example with Default key values: { "hostip":"192.168.8.191", "agentname":"egdp119" } Example containing both Default and Optional key values: { "hostip":"192.168.8.191", "agentname":"egdp119", "clientemulation":"yes" } |
|
Body |
Default: { "hostip":"IP address of the component", "agentname":"Agent name" } |
|
|
Optional: { "clientemulation":"yes/no" } |
| Type | Code | Content |
|---|---|---|
|
JSON |
200 |
{ "Succeed": "External agent has been added successfully." } |
| Type | Code | Content |
|---|---|---|
|
JSON |
401 UNAUTHORIZED |
{ "Error": "Space is not allowed in component name/agent name." } |

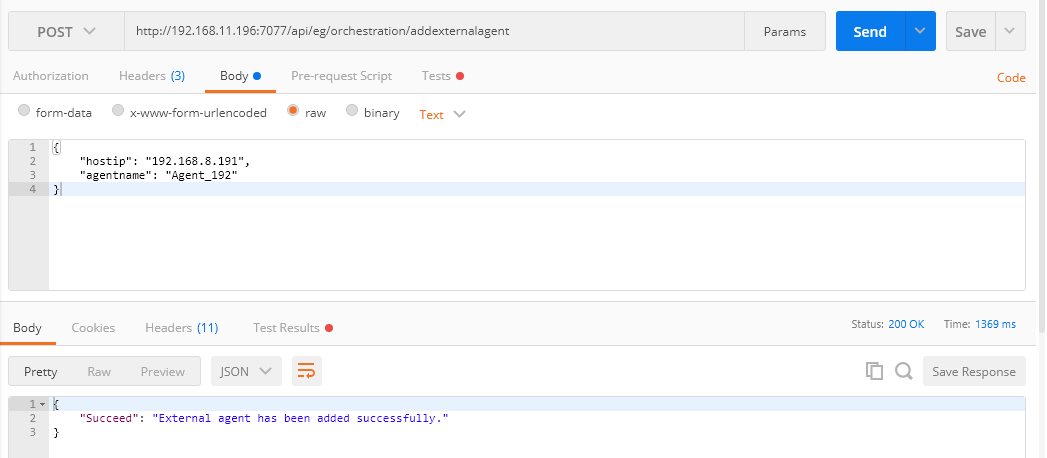

Figure 1 : Example to add an external agent using Postman REST Client
Adding External Agents using cURL
To add external agents through the REST API using cURL, the command should be specified in the following format:
curl --location --request POST "http://<eG Manager IP:Port>/api/eg/orchestration/addexternalagent" -H "managerurl:http://<eG Manager IP:Port>" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "Content-Type: application/json" --data-raw "{ 'hostip': 'IP address of the component', 'agentname': 'Agent name', 'clientemulation': 'yes/no'}"
Note that the command specified above contains both Default and Optional key values.

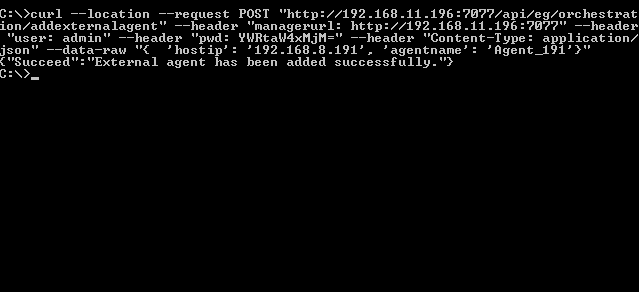

Figure 2 shows an example of adding external agents using cURL.
