Adding Groups

Use this API to add a group comprising of one/more components to the eG Enterprise.

URL: http://<eG manager IP:port>/api/eg/orchestration/addgroup

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

Example with Default key values:

{

"groupname":"group_X",

"elements":"Citrix Logon Simulator:TestLogon,Microsoft SQL:MSSQL:1433"

}

Body

Default:

{

"groupname":"Group name",

"elements":"comma-separated list of elements"

}



Success Response
Type Code Content

JSON

200

{

"Succeed": "Group has been added successfully."

}



Failure Response
Type Code Content

JSON



401 UNAUTHORIZED

{

"Error": "Required group details"

}

500 Server Error

{

"Error": "One or more elements do not exist or not available to associate. Invalid elements"

}

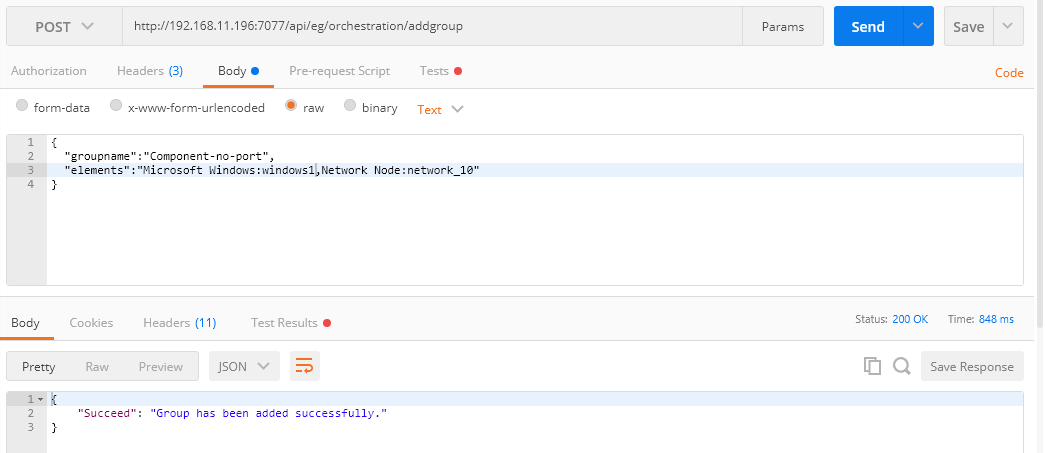

Figure 1 : Example to add a group using Postman REST Client

Adding a Group using cURL

To add a group through the REST API using cURL, the command should be specified in the following format:

curl --location --request POST "http://<eG Manager IP:Port>/api/eg/orchestration/addgroup" -H "managerurl:http://<eG Manager IP:Port>"-H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "Content-Type: application/json" --data-raw "{'groupname': 'Group name', 'elements': 'comma-separated list of elements'}"

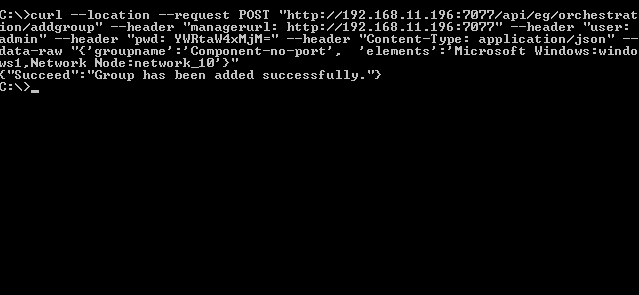

Figure 2 shows an example of adding a group using cURL.

Figure 2 : Adding a group using cURL
