Displaying the Details of the Tests
Use this API to display the details of a test pertaining to a chosen Component Type.
URL: http://<eG manager IP:port>/api/eg/orchestration/showtestsdetails
Method: POST
Content-Type: application/json
| Parameters | Key values | Example |
|---|---|---|
|
Headers |
managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port> user: eG username or domain/eG username pwd: Base64 encoded password |
Example with Optional Key values: { "componenttype": "Citrix NetScaler VPX/MPX", "componentname": "Netscaler176:NULL", "testtype": "Performance", "testname": "Application Flows" } |
|
Body |
Optional: { "componenttype":"Component type", "componentname":"Component name", "testtype":"Performance / Configuration", "testname":"Test name" } |
| Type | Code | Content |
|---|---|---|
|
JSON |
200 |
[ { "componentType": "Citrix NetScaler VPX/MPX", "componentName": "Netscaler176:NULL", "testType": { "performance": [ { "testName": "Application Flows", "details": { "TESTPERIOD": "5 mins", "HOST": "192.168.10.176", "NETSCALER USERNAME": "$unconfigured", "NETSCALER PASSWORD": "$unconfigured", "SSL": "No", "AGENTLESS": "y", "OS": "win7", "SSHPORT": "22" } } ], "configuration": [] } } ] |
| Type | Code | Content |
|---|---|---|
|
JSON |
401 UNAUTHORIZED |
{ "Error": "The test is not available for this component type." } |

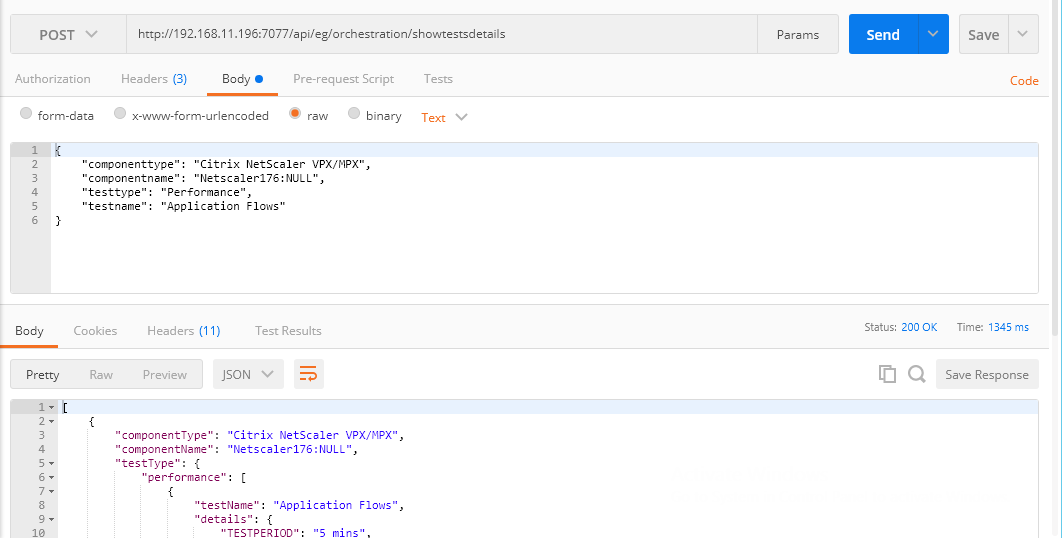

Figure 1 : Displaying the details of a test using Postman REST Client
Displaying the Details of the Tests using cURL
To display the details of a test through the REST API using cURL, the command should be specified in the following format:
curl --location --request POST "http://<eG Manager IP:Port>/api/eg/orchestration/showtestsdetails" -H "managerurl:http://<eG Manager IP:Port>" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "Content-Type: application/json" --data-raw "{'componenttype':'Component type', 'componentname':'Component name', 'testtype':'Performance / Configuration', 'testname':'Test name'}"

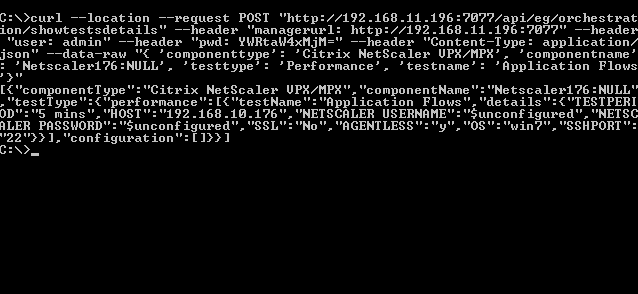

Note that the command specified above contains both the Default and Optional key values. Figure 2 shows an example of displaying the details of a test using cURL.
