Retrieving Configuration Changes Over Time

Using the eG REST API, administrators can figure out exact time on which configuration changes were made to the components belonging to a Zone/Service/Segment/Component Type without logging into the eG console. The table below specifies the URL and the parameters that should be used to retrieve the health of the infrastructure.

URL: http://<eG manager IP:port>/api/eg/analytics/getConfigurationChangesOverTime

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

Example to retrieve the configuration changes of components over a chosen time period

"filterBy":"component",

"componentType":"Microsoft Windows",

"timeline":"3 days"

}

Example to retrieve the configuration changes of the components belonging to a zone over a chosen time period:

{

"filterBy":"zone",

"zone":"SENTHIL-Oracle.Zone",

"componentType":"Microsoft Windows",

"timeline":"3 days"

}

Body

Default:

{

"filterBy":"zone/service/segment/component",

"zone":"Name of Zone",

"service":"Name of Service",

"segment":"Name of Segment",

"componentType":"Name of Component Type",

"timeline":"Timeline for retrieving the data (in hours/days/weeks)"

}



Success Response
Type Code Content

JSON

200

{

"totalChanges": 6,

"data": [

{

"date": "08/31/2022",

"value": 0

},

{

"date": "09/01/2022",

"value": 3

},

{

"date": "09/02/2022",

"value": 3

},

{

"date": "09/03/2022",

"value": 0

}

]

}



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Invalid username or password"}

JSON

400 BAD REQUEST

You may receive one of the following responses:

{"code": 400,"error": "Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or)

{"code": 400,"error": "Bad Request. Manager Url,Username,password is not provided"} (or)

{"code": 400,"error": "Provide a space between value and unit in Timeline"} (or)

{"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API."} (or)

{"code": 400,"error": "filterBy is not provided"} (or)

{"code": 400,"error": "Invalid value for FilterBy"} (or)

{"code": 400,"error": "Service name is not available/ not associated with this user"} (or)

{"code": 400,"error": "Zone name is not available/ not associated with this user"} (or)

{"code": 400,"error": "Segment name is not available/ not associated with this user"} (or)

{"code": 400,"error": "Component Type is not available/ not associated with this user"}

JSON

500 Server Error

{"code": 500,"error": "Server Error. Please check /manager/logs/error_log in the installation directory for more informatio"}

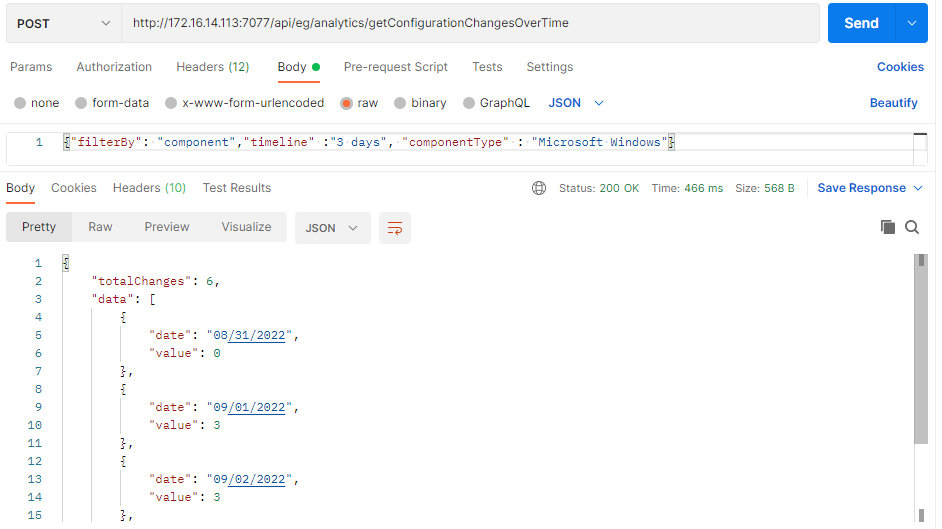

Figure 1 : Retrieving the configuration changes made to components over a chosen time period using Postman REST Client

Retrieving Infrastructure Health using cURL

To retrieve the configuration changes that were made to the components belonging to a Zone/Service/Segment/Component Type over a chosen time period using cURL, the command should be specified in the following format:

curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getConfigurationChangesOverTime" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type:application/json" --data-raw "{\"filterBy\":\"zone/service/segment/component\",\"zone\":\"Name of zone\",\"service\":\"Name of service\",\"segment\":\"Name of segment\",\"componentType\":\"Name of Component Type\",\"timeline\":\"Timeline for retrieving the data (in hours/days/weeks)\"}”

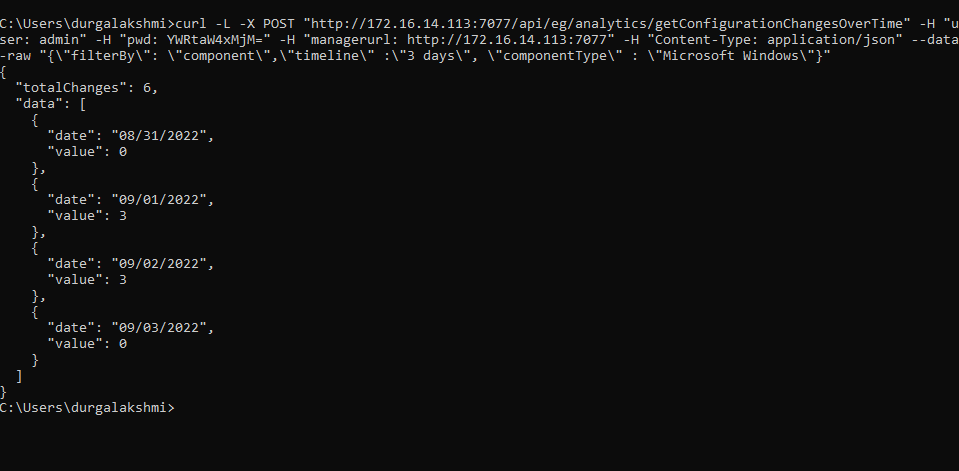

Figure 2 shows an example of retrieving the configuration changes that were made to the components managed in the target environment over a chosen time period using cURL.

Figure 2 : Retrieving the configuration changes made to the components over a chosen time period using cURL
