Retrieving Details of Components Associated with a User

To retrieve the details of the components such as the Component Type to which each component belongs to, count of components, name of the components and their severity for each user logged into eG Enterprise, administrators can use the eG REST API. The URL can be specified in the following format:

URL: http://<eG manager IP:port>/api/eg/analytics/getComponentsDetails

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

Not Applicable



Success Response
Type Code Content

JSON

200

{

"total": 54,

"summary": [

{

"critical": 37,

"color": "#cd0f0f"

},

{

"major": 1,

"color": "#fa9d1c"

},

{

"minor": 7,

"color": "#ccc100"

},

{

"unknown": 3,

"color": "#30a1d9"

},

{

"normal": 6,

"color": "#0c9a12"

}

],

"details": [

{

"eG Agent": [

{

"componentName": "172.16.10.90",

"priority": "critical"

},

{

"componentName": "C2112TS2DDC1",

"priority": "critical"

},

{

"componentName": "C2112TS2SF",

"priority": "critical"

},

{

"componentName": "C2112TS2XA2",

"priority": "critical"

}

]

},

{

"Citrix License": [

{

"componentName": "C2112TS2DDC1:27000",

"priority": "critical"

}

]

},

{

"Citrix Delivery Controller 7.x": [

{

"componentName": "C2112TS2DDC1:80",

"priority": "critical"

},

{

"componentName": "CTXCONNECTSRV:80",

"priority": "critical"

}

]

},

.

.

.

]

}



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Invalid username or password"}

JSON

400 BAD REQUEST

{"code": 400,"error": "Bad Request. Header parameters : Username or Password or Manager URL is missing"} (or)

{"code": 400,"error": "Bad Request. Header parameters : Manager URL, Username or Password is not provided"}

JSON

500 Server Error

{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information."}

Retrieving Components Mapped to User Using Postman REST Client

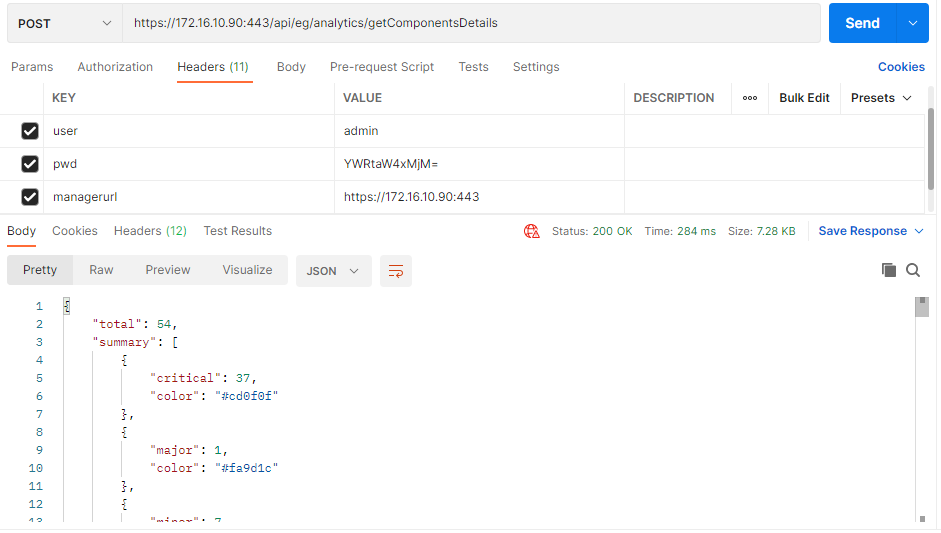

Figure 1 : Retrieving the details of the components associated with a user using Postman REST Client

Retrieving Details of Components Associated with Users using cURL

To retrieve the details of the components associated with a user logged into eG Enterprise using cURL, the command should be specified in the following format:

curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getComponentsDetails" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>"

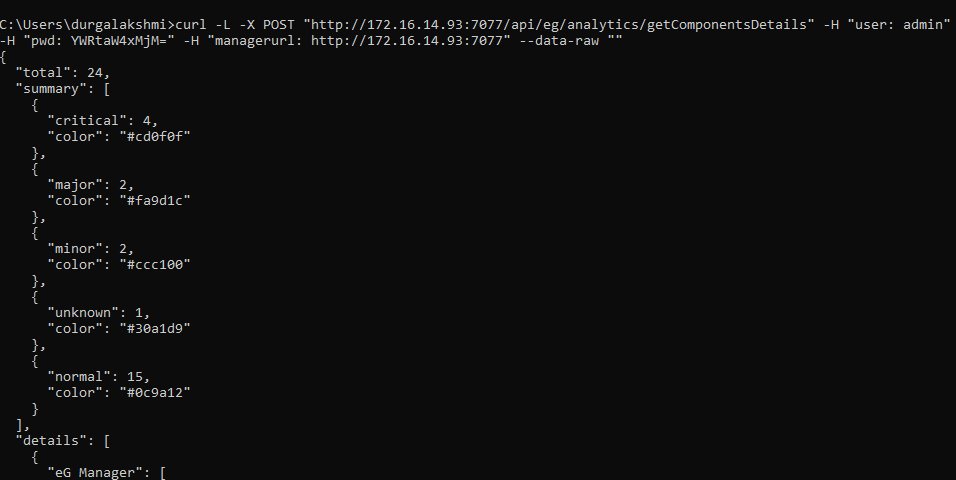

Figure 2 shows an example for retrieving the details of all the components associated with a user using cURL.

Retrieving Components Mapped to User Using cURL

Figure 2 : Retrieving the details of all the components associated with a user using cURL
