Retrieving Details of Components Managed in the target environment

The eG REST API can be used to retrieve all the components managed in the eG Manager along with their respective Component Types. For this, specify the URL in the following format:

URL: http://<eG manager IP:port>/api/eg/miscservice/getComponentMapping

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

Not Applicable



Success Response
Type Code Content

JSON

200

[

{

"ComponentType": "Cisco_router",

"servers": [

"cisco_router_d"

]

},

{

"ComponentType": "Citrix_NetScaler",

"servers": [

"Netscaler176",

"Netscaler"

]

},

.

.

.

}

]



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Unauthorized user"}

JSON

500 Server Error

{"code": 500,"error": " Server Error "}

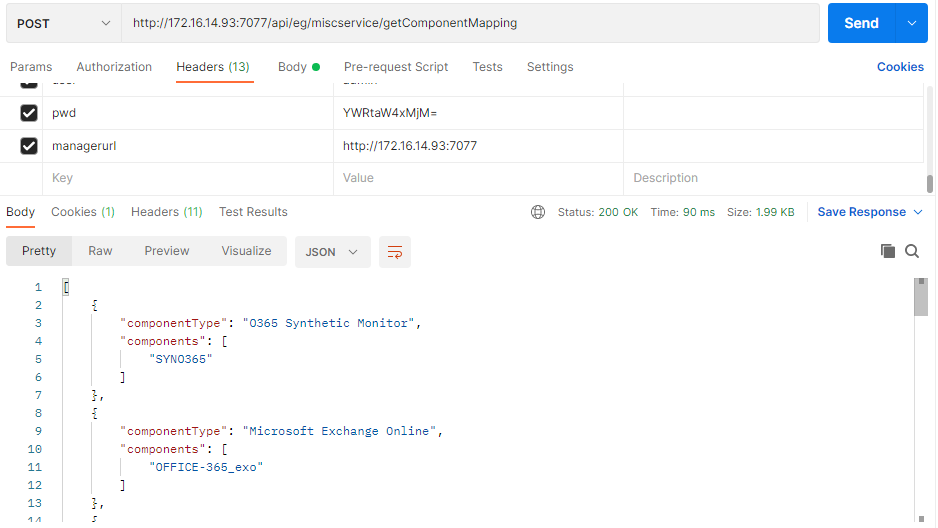

Figure 1 : Retrieving the components corresponding to all Component Types using Postman REST Client

Retrieving Details of Components Managed in the target environment using cURL

To retrieve the components corresponding to all component types managed in the target environment using cURL, the command should be specified in the following format:

curl -location -request POST "http://<eG Manager IP:Port>/api/eg/miscservice/getComponentMapping" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" --data-raw ""

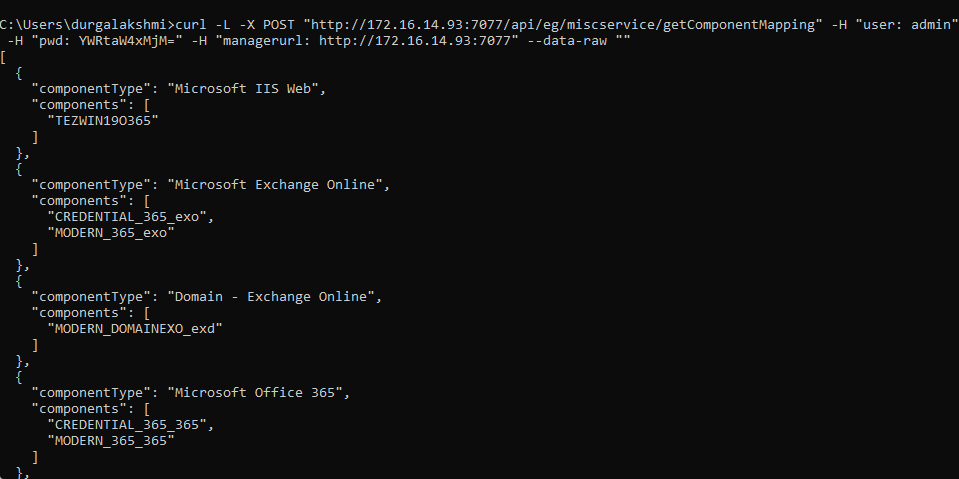

Figure 2 shows an example for retrieving the components corresponding to all component types managed in the target environment using cURL.

Figure 2 : Retrieving the components corresponding to all Component Types using cURL
