Retrieving Percentage of Proactive Alarms in the Target Environment
Use the URL specified below to retrieve the percentage of proactive alarms for all component types, components, layers and tests specific to the target environment. The percentage is calculated by considering the count of Major and Minor alarms against the Total alarms raised in the target environment.
Retrieving Percentage of Proactive Alarms across Component Types
URL: http://<eG manager IP:port>/api/eg/analytics/getProactiveProblemPercent/servertype
Method: POST
Content-Type: application/json
| Parameters | Key values | Example |
|---|---|---|
|
Headers |
managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port> user: eG username or domain/eG username pwd: Base64 encoded password |
{ "timeline":"2 weeks" } |
|
Body |
Default: { "timeline":"Timeline for retrieving proactive alarm percent (in hours/days/weeks)" } |
|
Type |
Code |
Content |
|---|---|---|
|
JSON |
200 |
{ "Proactive Problem Percent": [ { "componentType": "Linux server,MySql", "proactivePercent": "100" }, { "componentType": "Apache CouchDB", "proactivePercent": "44" }, . . . } |
| Type | Code | Content |
|---|---|---|
|
JSON |
401 UNAUTHORIZED |
{"code": 401,"error": "Invalid username or password"} |
|
JSON |
400 BAD REQUEST |
You may receive one of the following responses: {"code": 400,"error": " Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or) {"code": 400,"error": " Bad Request. Manager Url,Username,password is not provided"} (or) {"code": 400,"error": " Component type not associated with this user"} (or) {"code": 400,"error": "No components associated for this user"} (or) {"code": 400,"error": "Provide a space between value and unit in Timeline"} (or) {"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API"} |
|
JSON |
500 Server Error |
{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information"} |

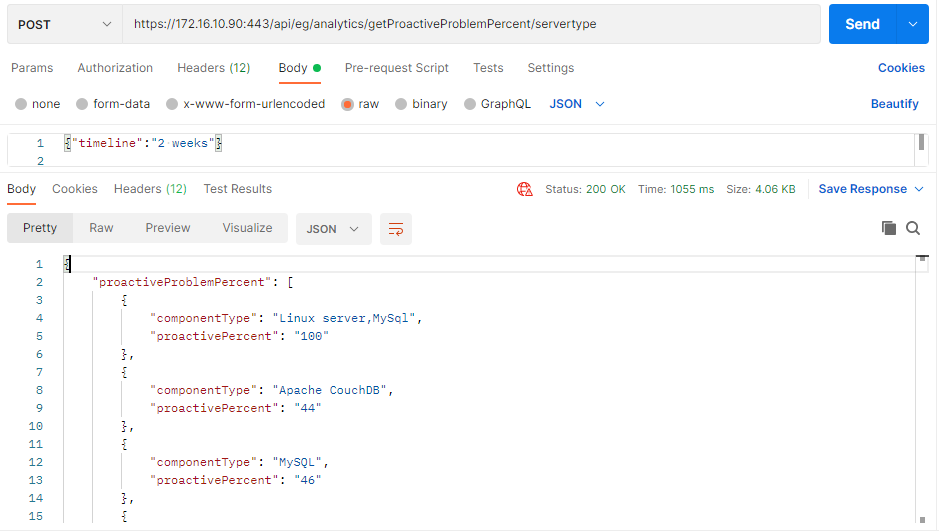

Figure 1 : Retrieving the percentage of proactive alarms for all Component Types using Postman REST Client
Retrieving Percentage of Proactive Alarms across Component Types using cURL
To retrieve the percentage of proactive alarms across all component types managed in the target environment using cURL, the command should be specified in the following format:
curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getProactiveProblemPercent/servertype" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type: application/json" --data-raw "{\"timeline\":\"Timeline for retrieving proactive alarm percent(in hours/days/weeks)\"}"
Figure 2 shows an example of retrieving the percentage of proactive alarms for all component types managed in the target environment using cURL.

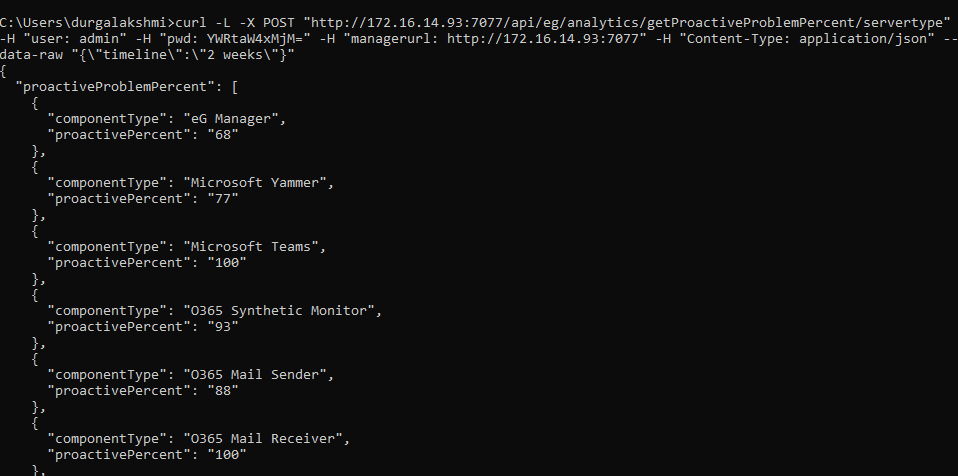

Figure 2 : Retrieving the percentage of proactive alarms for all Component Types using cURL
Retrieving Percentage of Proactive Alarms across all Components
URL: http://<eG manager IP:port>/api/eg/analytics/getProactiveProblemPercent/servername
Method: POST
Content-Type: application/json
| Parameters | Key values | Example |
|---|---|---|
|
Headers |
managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port> user: eG username or domain/eG username pwd: Base64 encoded password |
{ "timeline":"2 weeks" } |
|
Body |
Default: { "timeline":"Timeline for retrieving proactive alarm percent (in hours/days/weeks)" } |
| Type | Code | Content |
|---|---|---|
|
JSON |
200 |
{ "proactiveProblemPercent": [ { "componentName": "CTXCONNECTSRV", "proactivePercent": "0" }, { "componentName": "PostgreSQL_10.68:5432", "proactivePercent": "100" }, . . . } |
| Type | Code | Content |
|---|---|---|
|
JSON |
401 UNAUTHORIZED |
{"code": 401,"error": "Invalid username or password"} |
|
JSON |
400 BAD REQUEST |
You may receive one of the following responses: {"code": 400,"error": " Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or) {"code": 400,"error": " Bad Request. Manager Url,Username,password is not provided"} (or) {"code": 400,"error": " Component type not associated with this user"} (or) {"code": 400,"error": "No components associated for this user"} (or) {"code": 400,"error": "Provide a space between value and unit in Timeline"} (or) {"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API"} |
|
JSON |
500 Server Error |
{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information"} |

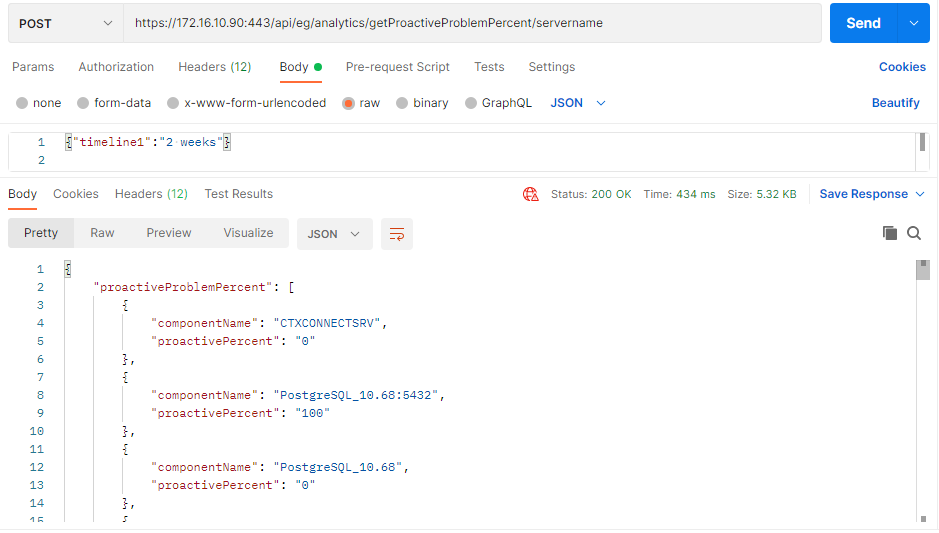

Figure 3 : Retrieving the percentage of proactive alarms for all Components using Postman REST Client
Retrieving Percentage of Proactive Alarms across Components using cURL
To retrieve the percentage of proactive alarms across all components managed in the target environment using cURL, the command should be specified in the following format:
curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getProactiveProblemPercent/servername" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type: application/json" --data-raw "{\"timeline\":\"Timeline for retrieving proactive alarm percent(in hours/days/weeks)\"}"
Figure 2 shows an example of retrieving the percentage of proactive alarms for all components managed in the target environment using cURL.

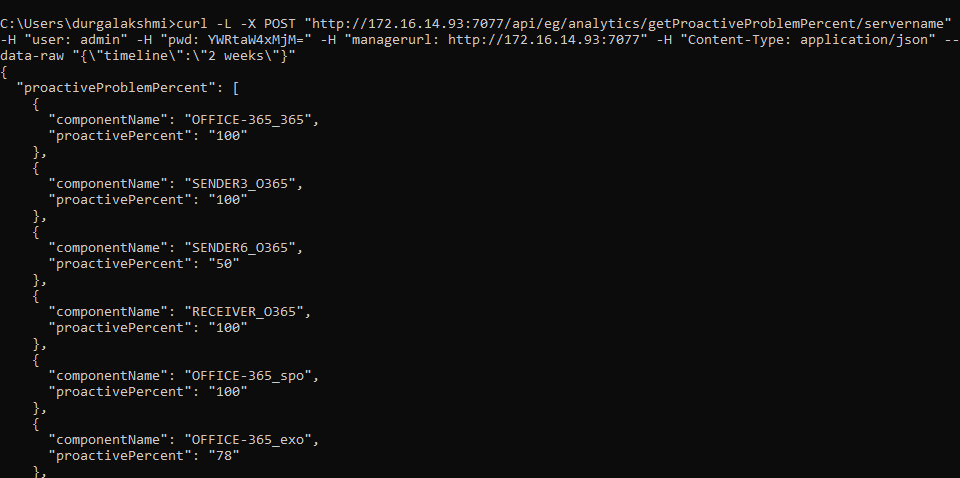

Figure 4 : Retrieving the percentage of proactive alarms for all Components using cURL
Retrieving Percentage of Proactive Alarms specific to Layers of a Component Type
URL: http://<eG manager IP:port>/api/eg/analytics/getProactiveProblemPercent/layer
Method: POST
Content-Type: application/json
| Parameters | Key values | Example |
|---|---|---|
|
Headers |
managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port> user: eG username or domain/eG username pwd: Base64 encoded password |
{ "timeline":"2 weeks", "componentType":"Apache CouchDB" } |
|
Body |
Default: { "timeline":"Timeline for retrieving proactive alarm percent (in hours/days/weeks)", "componentType":"Component Type" } |
| Type | Code | Content |
|---|---|---|
|
JSON |
200 |
{ "proactiveProblemPercent": [ { "layer": "Network", "proactivePercent": "40" }, { "layer": "Application Processes", "proactivePercent": "42" }, . . . } |
| Type | Code | Content |
|---|---|---|
|
JSON |
401 UNAUTHORIZED |
{"code": 401,"error": "Invalid username or password"} |
|
JSON |
400 BAD REQUEST |
You may receive one of the following responses: {"code": 400,"error": " Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or) {"code": 400,"error": " Bad Request. Manager Url,Username,password is not provided"} (or) {"code": 400,"error": " Component type not associated with this user"} (or) {"code": 400,"error": "No components associated for this user"} (or) {"code": 400,"error": "Provide a space between value and unit in Timeline"} (or) {"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API"} |
|
JSON |
500 Server Error |
{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information"} |

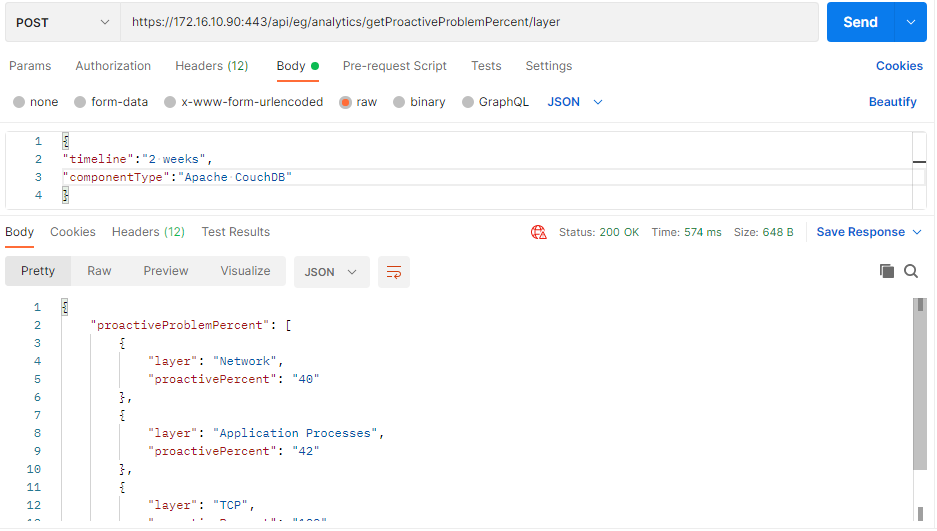

Figure 5 : Retrieving the percentage of proactive alarms for the layers of a component type using Postman REST Client
Retrieving Percentage of Proactive Alarms specific to Layers of a Component Type using cURL
To retrieve the percentage of proactive alarms specific to layers of a component type managed in the target environment using cURL, the command should be specified in the following format:
curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getProactiveProblemPercent/layer" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type: application/json" --data-raw "{\"timeline\":\"Timeline for retrieving proactive alarm percent(in hours/days/weeks)\",\"componentType\":\"Component Type\"}"
Figure 2 shows an example of retrieving the percentage of proactive alarms for the layers specific to a component type managed in the target environment using cURL.

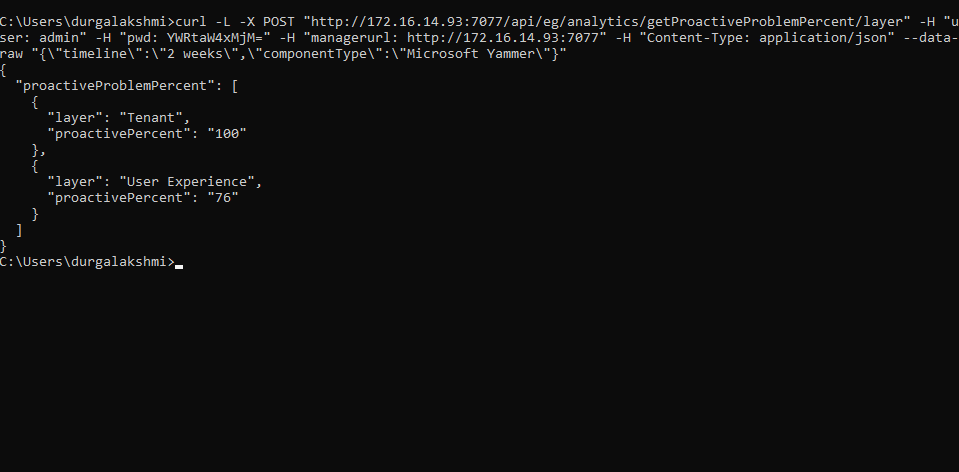

Figure 6 : Retrieving the percentage of proactive alarms for the layers of a component type using cURL
