Retrieving Problem Duration

Using the eG REST API, administrators can retrieve the duration for which an alarm was open for all component types or components or layers specific to the component type or tests specific to a component type.

Retrieving Problem Duration for Component Types

URL: http://<eG manager IP:port>/api/eg/analytics/getProblemDuration/servertype

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

{

"timeline":"1 hour"

}

Body

Default:

{

"timeline":"Timeline for retrieving the alarm duration (in hours/days/weeks)"

}



Success Response
Type Code Content

JSON

200

{

"problemDuration": [

{

"componentType": "Citrix License",

"minDuration": "0s",

"maxDuration": "1D",

"avgDuration": "3h 33m"

},

.

.

.

}



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Invalid username or password"}

JSON

400 BAD REQUEST

You may receive one of the following responses:

{"code": 400,"error": " Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or)

{"code": 400,"error": " Bad Request. Manager Url,Username,password is not provided"} (or)

{"code": 400,"error": " Component type not associated with this user"} (or)

{"code": 400,"error": "No components associated for this user"} (or)

{"code": 400,"error": "Provide a space between value and unit in Timeline"} (or)

{"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API"}

JSON

500 Server Error

{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information"}

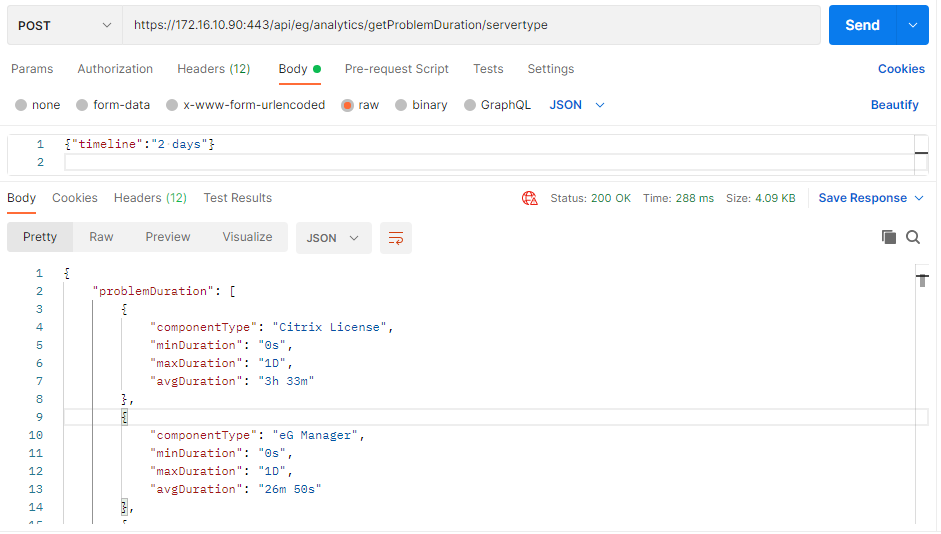

Retrieving Problem Duration Across Component Types Using Postman REST Client

Figure 1 : Retrieving the duration for which an alarm was open for all Component Types using Postman REST Client

Retrieving Problem Duration for all Component Types using cURL

To retrieve the duration for which an alarm was open for the component types managed in the target environment using cURL, the command should be specified in the following format:

curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getProblemDuration/servertype" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type: application/json" --data-raw "{\"timeline\":\"Timeline for retrieving the alarm duration(in hours/days/weeks)\"}"

Figure 2 shows an example of retrieving the duration for which an alarm was open for the component types managed in the target environment using cURL.

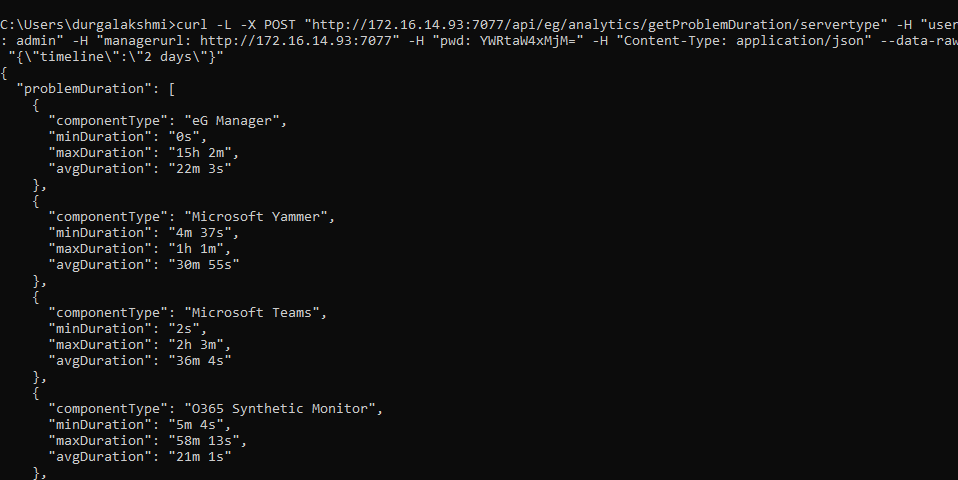

Retrieving Problem Duration Across Component Types Using cURL

Figure 2 : Retrieving the duration for which an alarm was open for all Component Types using cURL

Retrieving Problem Duration for all Components

URL: http://<eG manager IP:port>/api/eg/analytics/getProblemDuration/servername

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

{

"timeline":"1 hour"

}

Body

Default:

{

"timeline":"Timeline for retrieving the alarms (in hours/days/weeks)"

}



Success Response
Type Code Content

JSON

200

{

"problemDuration": [

{

"componentName": "CTXCONNECTSRV",

"minDuration": "0s",

"maxDuration": "2D 22h",

"avgDuration": "14h 55m"

},

.

.

.

}



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Invalid username or password"}

JSON

400 BAD REQUEST

You may receive one of the following responses:

{"code": 400,"error": " Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or)

{"code": 400,"error": " Bad Request. Manager Url,Username,password is not provided"} (or)

{"code": 400,"error": " Component type not associated with this user"} (or)

{"code": 400,"error": "No components associated for this user"} (or)

{"code": 400,"error": "Provide a space between value and unit in Timeline"} (or)

{"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API"}

JSON

500 Server Error

{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information"}

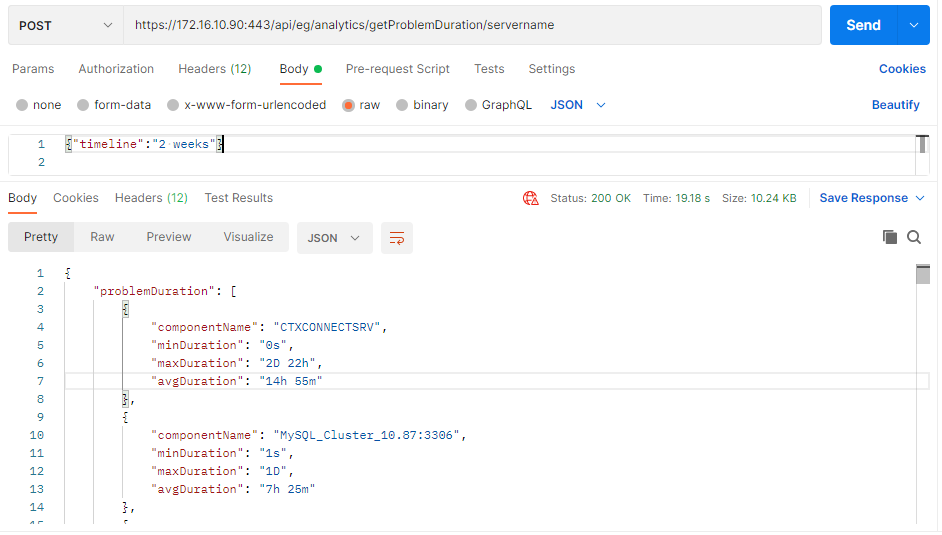

Retrieving Problem Duration Across Components Using Postman REST Client

Figure 3 : Retrieving the duration for which an alarm was open for all Components using Postman REST Client

Retrieving Problem Duration for all Components using cURL

To retrieve the duration for which an alarm was open for all components managed in the target environment using cURL, the command should be specified in the following format:

curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getProblemDuration/servername" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type: application/json" --data-raw "{\"timeline\":\"Timeline for retrieving the alarm duration(in hours/days/weeks)\"}"

Figure 2 shows an example of retrieving the duration for which an alarm was open for all components managed in the target environment using cURL.

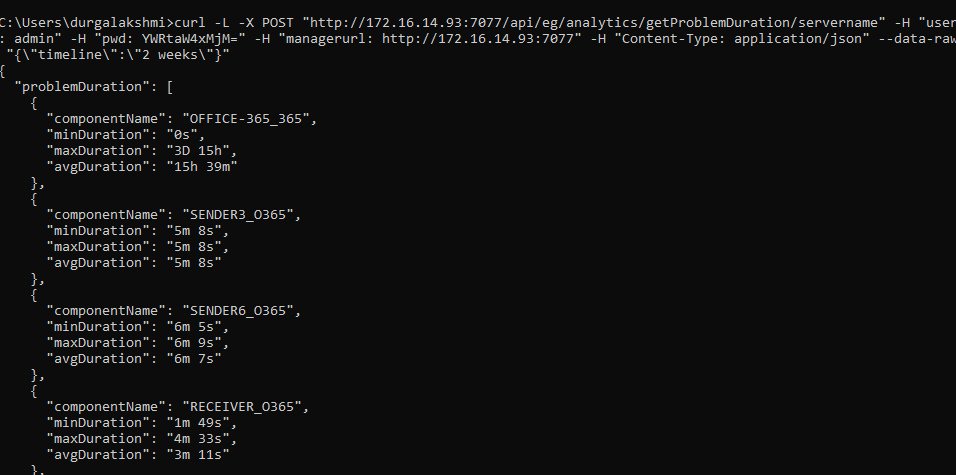

Retrieving Problem Duration Across Components Using cURL

Figure 4 : Retrieving the duration for which an alarm was open for all Components using cURL

Retrieving Problem Duration for all Layers of a Component Type

URL: http://<eG manager IP:port>/api/eg/analytics/getProblemDuration/layer

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

{

"timeline":"2 weeks",

"componentType":Microsoft SQL"

}

Body

Default:

{

"timeline":"Timeline for retrieving the alarms (in hours/days/weeks)",

"componentType":"Component Type"

}



Success Response
Type Code Content

JSON

200

{

"problemDuration": [

{

"layer": "Windows Service",

"minDuration": "1s",

"maxDuration": "2h 5m",

"avgDuration": "6m 8s"

},

.

.

.

}



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Invalid username or password"}

JSON

400 BAD REQUEST

You may receive one of the following responses:

{"code": 400,"error": " Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or)

{"code": 400,"error": " Bad Request. Manager Url,Username,password is not provided"} (or)

{"code": 400,"error": " Component type not associated with this user"} (or)

{"code": 400,"error": "No components associated for this user"} (or)

{"code": 400,"error": "Provide a space between value and unit in Timeline"} (or)

{"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API"}

JSON

500 Server Error

{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information"}

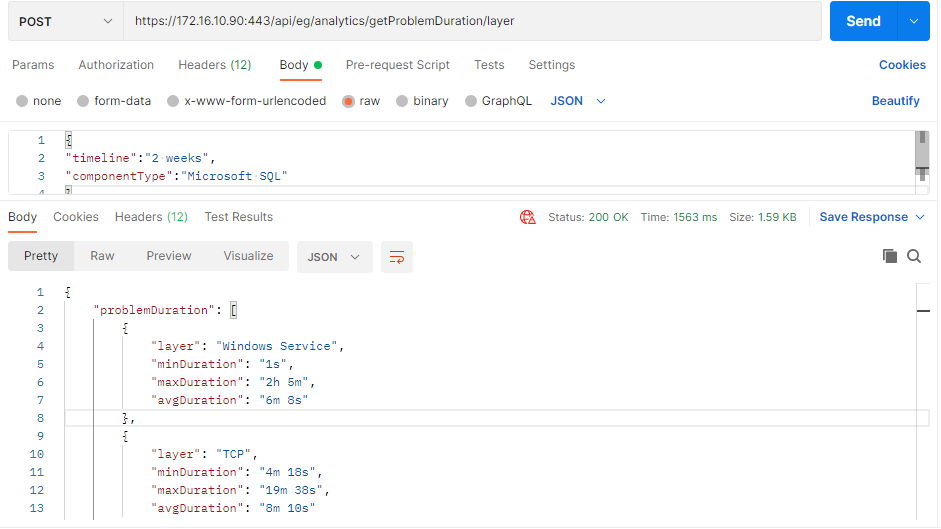

Retrieving Problem Duration Across Layers of Component Type Using Postman REST Client

Figure 5 : Retrieving the duration for which an alarm was open for all layers of a Component type using Postman REST Client

Retrieving Problem Duration for all Layers of a Component Type using cURL

To retrieve the duration for which an alarm was open for all layers of a component type managed in the target environment using cURL, the command should be specified in the following format:

curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getProblemDuration/layer" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type: application/json" --data-raw "{\"timeline\":\"Timeline for retrieving the alarm duration(in hours/days/weeks)\",\"ComponentType\":\"Component Type\"}"

Figure 2 shows an example of retrieving the duration for which an alarm was open for all layers corresponding to a component type managed in the target environment using cURL.

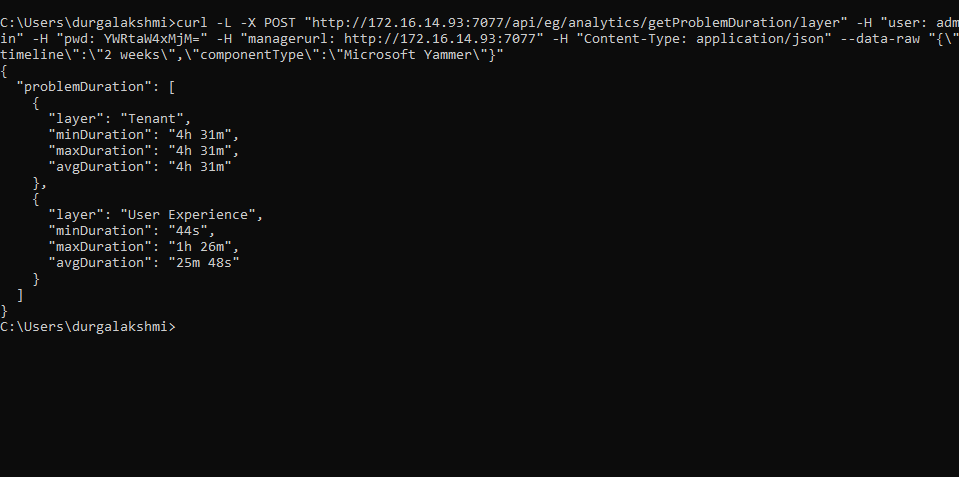

Retrieving Problem Duration Across Layers of Component Type Using cURL

Figure 6 : Retrieving the duration for which an alarm was open for all layers of a Component types using cURL

Retrieving Problem Duration for all Tests of a Component Type

URL: http://<eG manager IP:port>/api/eg/analytics/getProblemDuration/test

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

{

"timeline":"2 weeks",

"componentType":Microsoft SQL"

}

Body

Default:

{

"timeline":"Timeline for retrieving the alarms (in hours/days/weeks)",

"componentType":"Component Type"

}



Success Response
Type Code Content

JSON

200

{

"problemDuration": [

{

"test": "Uptime",

"minDuration": "4m 2s",

"maxDuration": "5m 9s",

"avgDuration": "4m 35s"

},

.

.

.

}



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Invalid username or password"}

JSON

400 BAD REQUEST

You may receive one of the following responses:

{"code": 400,"error": " Bad Request. Header parameters : Username or Password or Manager Url is missing"} (or)

{"code": 400,"error": " Bad Request. Manager Url,Username,password is not provided"} (or)

{"code": 400,"error": " Component type not associated with this user"} (or)

{"code": 400,"error": "No components associated for this user"} (or)

{"code": 400,"error": "Provide a space between value and unit in Timeline"} (or)

{"code": 400,"error": "Invalid Timeline. Please refer EG REST API documentation for this API"}

JSON

500 Server Error

{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information"}

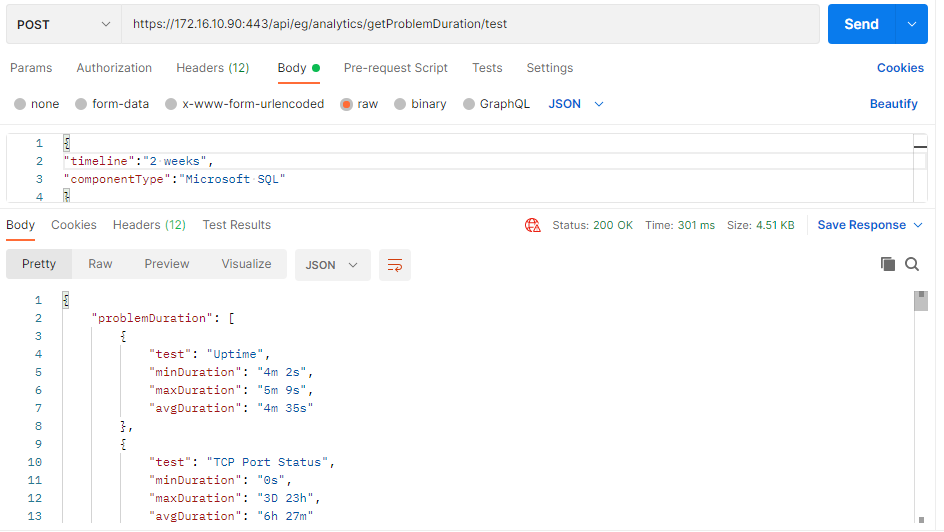

Retrieving Problem Duration Across Tests of Component Type Using Postman REST Client

Figure 7 : Retrieving the duration for which an alarm was open for all Tests of a Component Type using Postman REST Client

Retrieving Problem Duration for all Tests of a Component Type using cURL

To retrieve the duration for which an alarm was open for all tests of a component type managed in the target environment using cURL, the command should be specified in the following format:

curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getProblemDuration/test" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" -H "Content-Type: application/json" --data-raw "{\"timeline\":\"Timeline for retrieving the alarm duration(in hours/days/weeks)\",\"componentType\":\"Component Type\"}"

Figure 2 shows an example of retrieving the duration for which an alarm was open for all tests of a component type managed in the target environment using cURL.

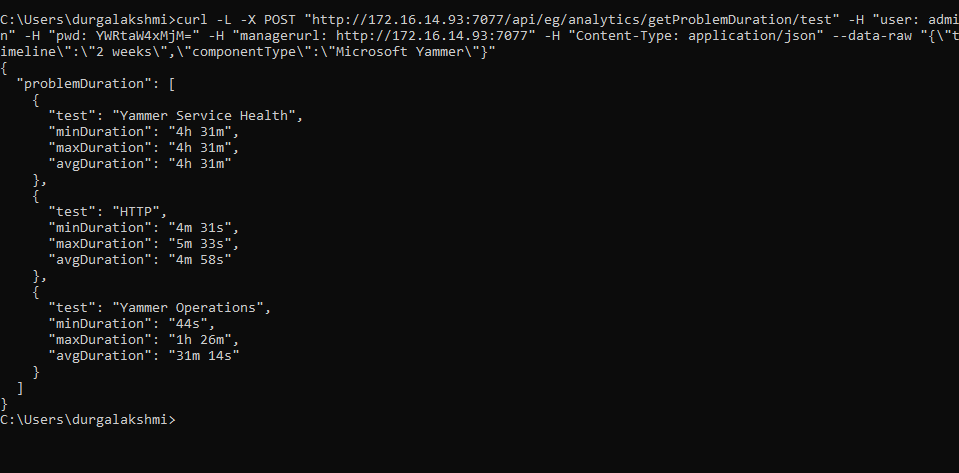

Retrieving Problem Duration Across Tests of Component Type Using cURL

Figure 8 : Retrieving the duration for which an alarm was open for all Tests of a Component Type using cURL
