Retrieving the Measurements Reported by eG Enterprise

To retrieve the measures that are reported by eG Enterprise, by default, administrators can use the eG REST API. The URL can be specified in the following format:

URL: http://<eG manager IP:port>/api/eg/miscservice/getMeasureMapping

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters	Key values	Example
Headers	managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port> user: eG username or domain/eG username pwd: Base64 encoded password	Not Applicable

Success Response
Type	Code	Content
JSON	200	{ "CIsEqChassisTest:OperState": "Overall status", "CIsEqChassisTest:Presence": "Presence state", "CIsEqChassisTest:FaultSummary": "Fault summary", "CIsEqChassisTest:Blades": "Blade servers", "CIsEqChassisTest:FanModules": "Fan modules", "CIsEqChassisTest:IOMS": "IO modules", "CIsEqChassisTest:Psus": "PSUs", "CIsEqFanTest:OperState": "Overall status", . . . }

Failure Response
Type	Code	Content
JSON	401 UNAUTHORIZED	{"code": 401,"error": "Invalid username or password."}
JSON	500 Server Error	{"code": 500,"error": "Server Error. Please check /manager/logs/error_log in the installation directory for more information."}

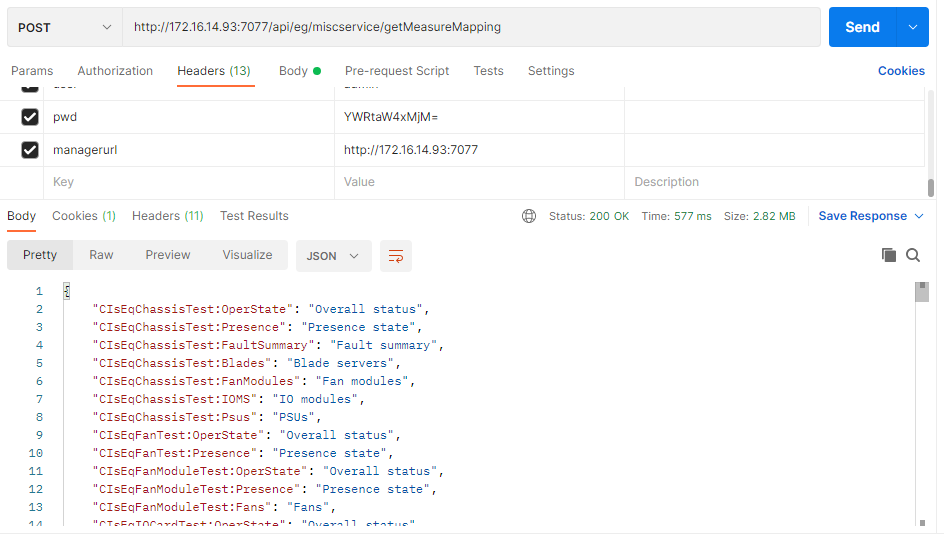

Retrieving List of Measurements Using Postman REST Client

Figure 1 : Retrieving the list of measurements using Postman REST Client

Retrieving the Measurements Reported by eG Enterprise using cURL

To retrieve the measures reported by eG Enterprise by monitoring the components in the target environment using cURL, the command should be specified in the following format:

curl -L -X POST "http://<eG Manager IP:Port>/api/eg/miscservice/getMeasureMapping" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>"

Figure 2 shows an example cURL command for retrieving the measurements reported by eG Enterprise by monitoring the components in the target environment.

cURL Command to Retrieve List of Measurements

Figure 2 : An example cURL command to retrieve the measurements

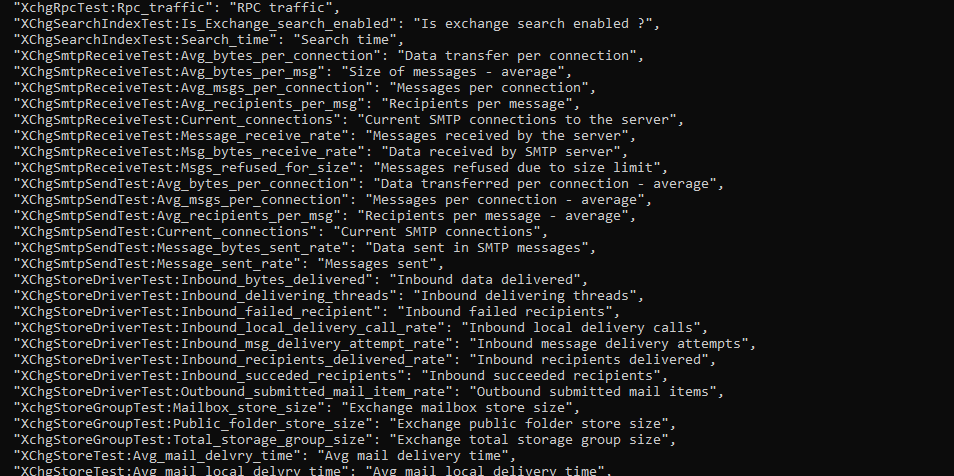

Figure 3 shows a sample output that retrieves the measurements reported by eG Enterprise using cURL.

Retrieving List of Measurements Using cURL

Figure 3 : Sample output with the list of measurements supported by eG Enterprise
