Configuring the Tests

  1. Once the Cisco SD-WAN component is added successfully, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

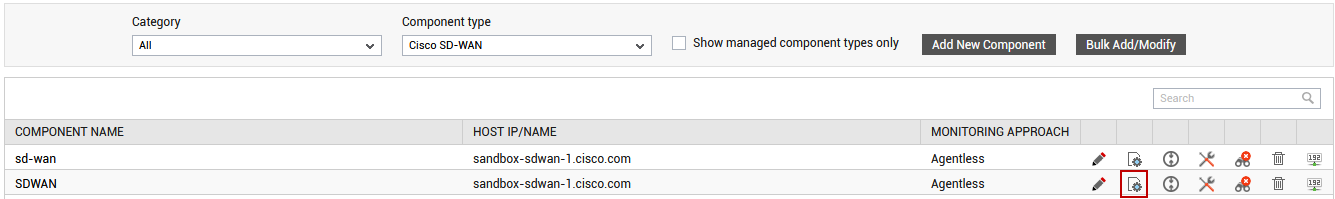

    Figure 1 : Listing the newly added Cisco SD-WAN component

  2. To collect the performance metrics, you may need to configure the tests that are mapped to the Cisco SD-WAN component. To configure the tests that need manual configuration, click on the icon in Figure 1.

  3. Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

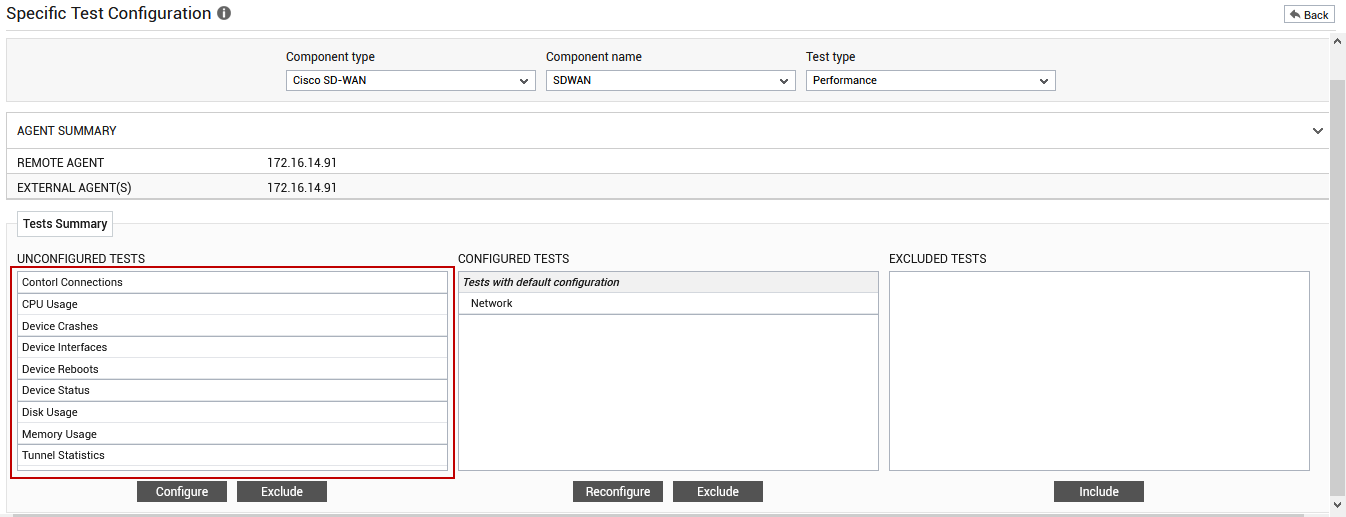

    Figure 2 : The list of unconfigured tests for Cisco SD-WAN

    Click on any of the tests to configure it. For instance, if you click on the CPU Usage test, Figure 3 will appear.

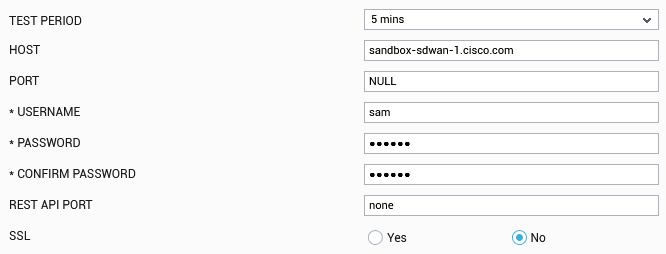

    Figure 3 : Configuring the CPU Usage test

    To know how to configure this test, refer to CPU Usage Test.

    Click the Update button to update the test configuration. This will automatically configure all the other unconfigured tests of Cisco SD-WAN component.
