Managing Cisco SG Switch

The Cisco SG Switch can be automatically discovered by eG Enterprise. Therefore, administrators can either auto-discover the switch in their environment or manually add the switch.

To manage the Cisco SG Switches that are automatically discovered, follow the steps below:

  1. Login to the eG admin interface.
  2. If the component is yet to be discovered, then, run discovery (Infrastructure -> Components -> Discovery).
  3. To manage an already discovered component, follow the menu sequence: Infrastructure -> Components -> Manage/Unmanage/Delete.

  4. Figure 1 and Figure 2 clearly illustrate the process of managing a Cisco SG Swtich.

    Figure 1 : Selecting the Cisco SG Switch to be managed

    Figure 2 : Managing the Cisco SG Switch

  5. Next, sign out of the eG administrative interface.

To add the Cisco SG Switch manually to eG Enterprise, follow the steps below:

  1. Follow the Components -> Add/Modify menu sequence in the Infrastructure tile of the Admin menu.
  2. Next, select Cisco SG Switch from the Component type drop-down and then click the Add New Component button.

  3. When Figure 3 appears, provide the Host IP/Name of the Cisco SG Switch that you want to manage.

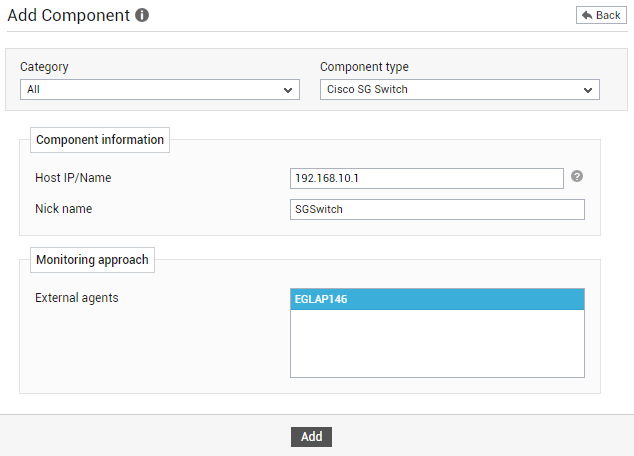

    Figure 3 : Adding a Cisco SG Switch

  4. Then, provide a Nick name for the switch.
  5. Pick an external agent from the External agents list box and click the Add button to add the component for monitoring.
  6. Next, signout of the eG administrative interface.
