The Operating System layer

The Operating System layer of the Cisco SG Switch tracks the CPU utilization of the switch, current status of the hardware elements such as fans, power supply units and sensors. The PoE ports of the switch are monitored and ports that have failed are determined. The tests of this layer are discussed in the forthcoming sections.

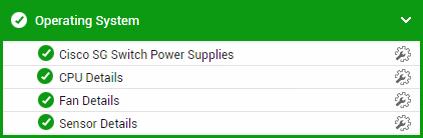

Figure 1 : The tests associated with the Operating System layer
