Managing the Citrix Branch Repeater

To achieve this, follow the steps given below:

  1. Log into the eG administrative interface.
  2. eG Enterprise cannot automatically discover the Citrix Branch Repeater. You need to manually add the server using the COMPONENTS page (see ) that appears when the Infrastructure -> Components -> Add/Modify menu sequence is followed. Remember that components manually added are managed automatically.

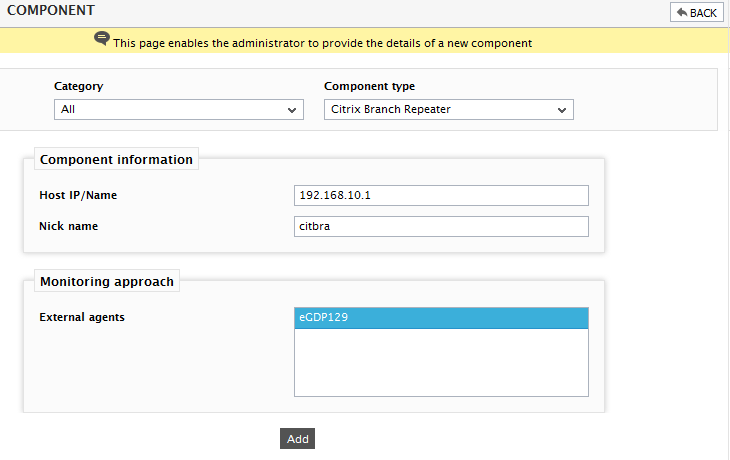

    Figure 1 : Adding a Citrix Branch Repeater

  3. Specify the Host IP and the Nick name of the Citrix Branch Repeater in Figure 1. Then click the Add button to register the changes.
  4. When you attempt to sign out, a list of unconfigured tests will appear as shown in Figure 2.

    Figure 2 : List of Unconfigured tests to be configured for the Citrix Branch Repeater

  5. Click on any test from the list to configure it. To know how to configure the tests, refer to The Citrix Branch Repeater Monitoring Model chapter.
  6. Finally, sign out of the eG administrative interface.
