Configuring Tests for the Citrix Cloud Control Plane
After adding the Citrix Cloud Control Plane component to the eG Enterprise system, proceed to configure the tests for it. For that, follow the Infrastructure -> Components -> Add/Modify menu sequence, and select Citrix Cloud Control Plane as the Component type. Figure 1 will appear listing the managed components of the chosen type.

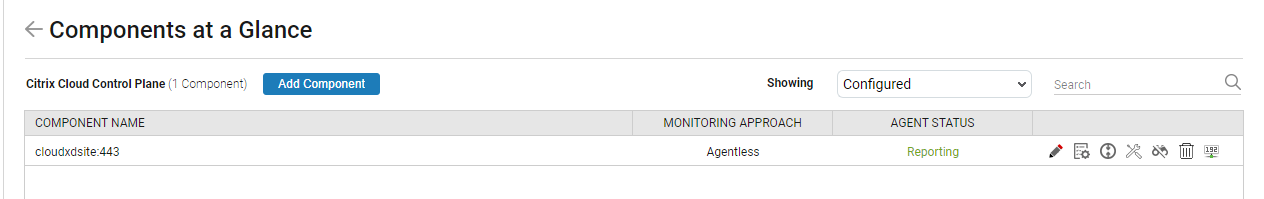

Figure 1 : List of unconfigured tests for the Citrix Cloud Control Plane
To configure tests for any of the managed components, click on the button corresponding to that component. Figure 2 will then appear. Select the test that you want to configure from the UNCONFIGURED TESTS list box, and click the Configure button. For instance, say you want to configure the Applications - Cloud test. For that, select that test from the UNCONFIGURED TESTS list box, and click the Configure button.

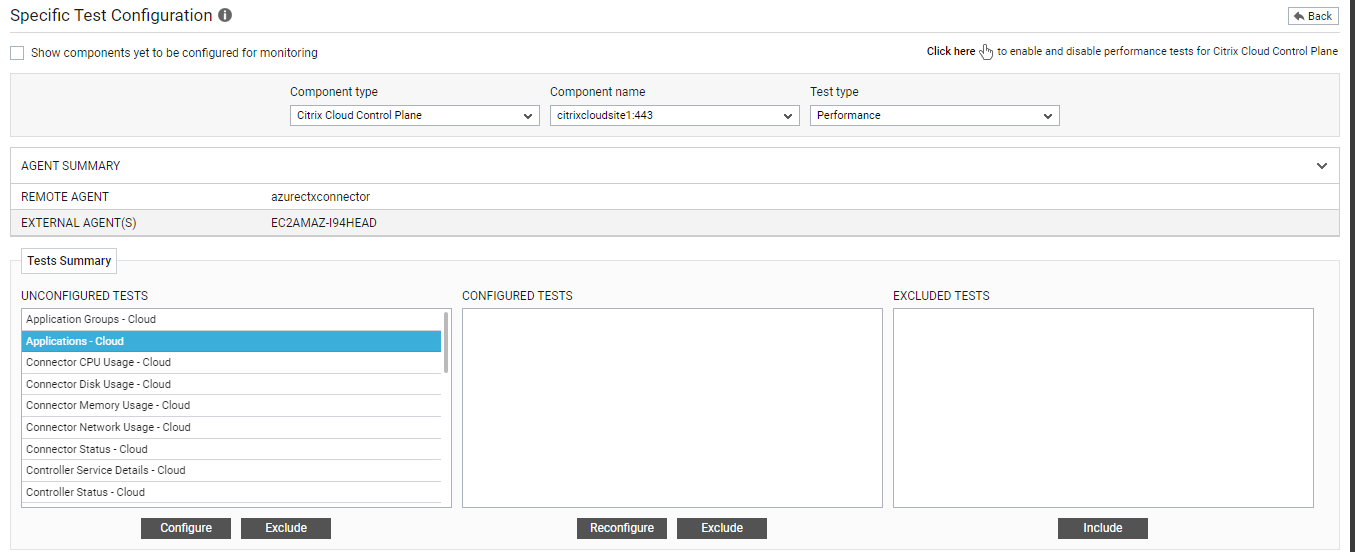

Figure 2 : Selecting the test to be configured
Figure 3 will then appear displaying the parameters that need to be configured for that test. To know how to configure these parameters, refer the Applications - Cloud Test topic.

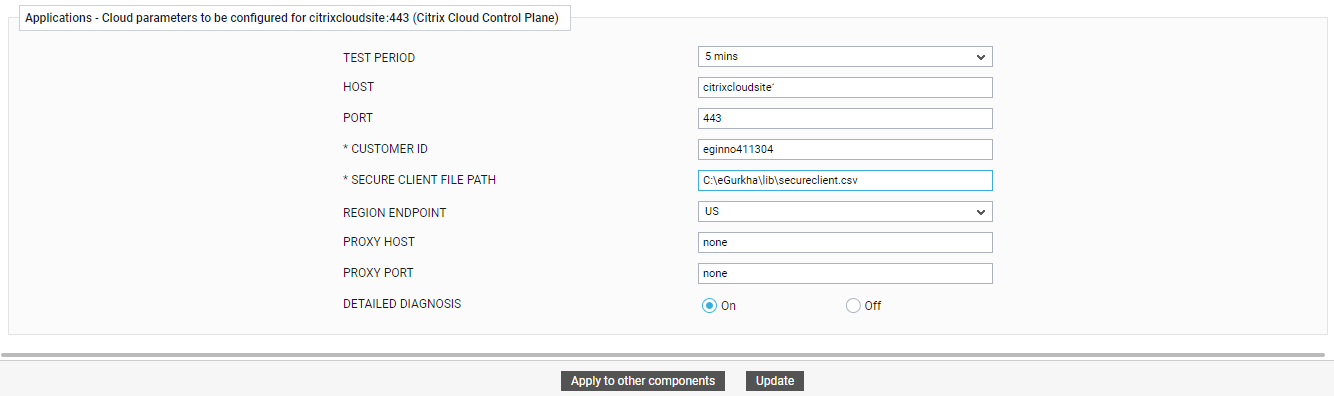

Figure 3 : Configuring the Applications - Cloud test
Once the component is managed, click on the Monitor tab to view the current state and metrics of the Citrix Cloud Control Plane.
