Network Layer

The tests associated with the Network layer reveal whether a network connection to the Citrix SD-WAN appliance is available or not, and also monitors the current status of the network interfaces supported by the appliance. Additionally, administrators can easily figure out the efficiency of the Ethernet ports in handling the traffic and the errors encountered by the ports. In addition, the tests help tracking the data/packet traffic handled by the access interfaces and WAN links.

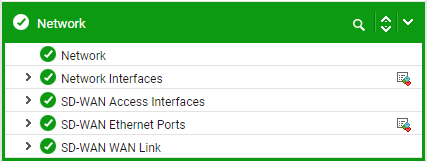

Figure 1 : The Network Layer
