SD-WAN Protocols Layer

The tests associated with this layer enable administrators to find out the following:

• The current status of each IP address in the ARP table of the target SD-WAN appliance;
• The time duration taken by each IP address to receive the response via the ARP protocol;
• The data/packet traffic between LAN to WAN and WAN to LAN for each rule configured on the target appliance.

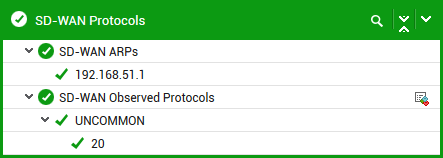

Figure 1 : The SD-WAN Protocols Layer
