Administering the eG Manager to Monitor the Citrix Virtual Apps v7 (or above)

Follow the procedure explained below for managing the Citrix Virtual Apps servers using the eG administrative interface.

1. Log into the eG administrative interface.

2. eG Enterprise is capable of automatically discovering the Citrix Virtual Apps server. If a Citrix Virtual Apps server is already discovered, then directly proceed towards managing it using the COMPONENTS - MANAGE/UNMANAGE page (Infrastructure -> Components -> Manage/Unmanage). However, if it is yet to be discovered, then run discovery (Infrastructure -> Components -> Discovery) to get it discovered or add the Citrix Virtual Apps server manually using the COMPONENTS page (Infrastructure -> Components -> Add/Modify). Remember that components manually added are managed automatically. Discovered components, however, are managed using the COMPONENTS - MANAGE/UNMANAGE page.

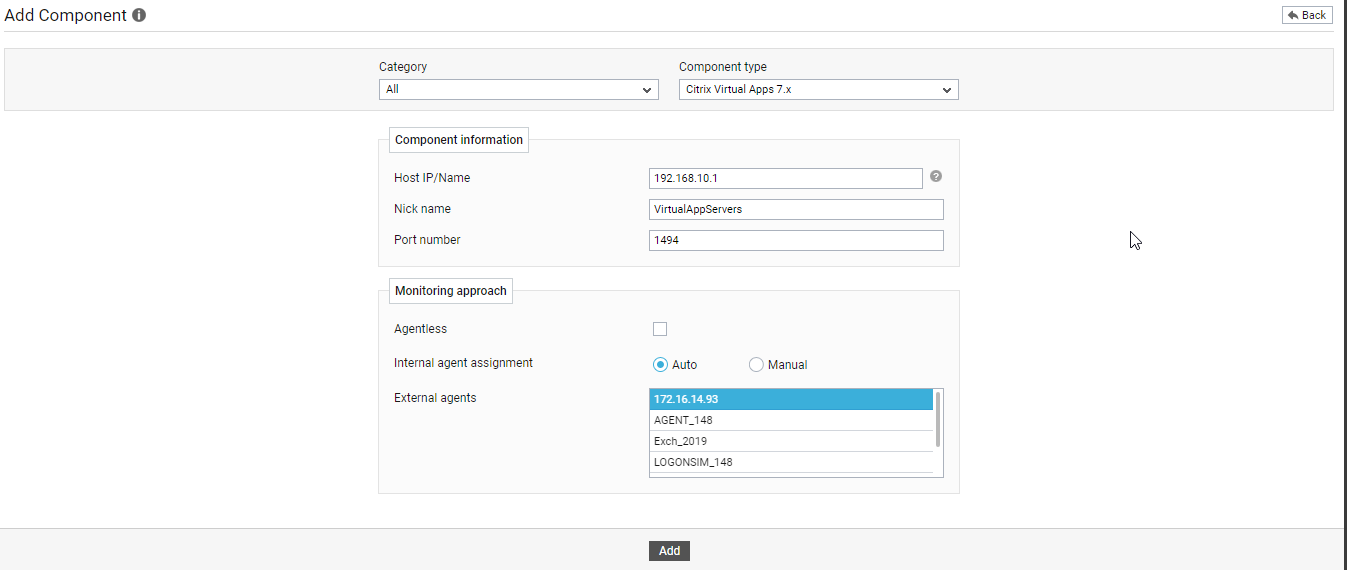

   Figure 1 : Adding a Citrix Virtual Apps server 7.x

2. Specify the Host IP and the Nick name of the Citrix Virtual Apps server in Figure 1. Then click the Add button to register the changes.
3. The tests pertaining to the Citrix Virtual Apps 7.x server will be configured automatically.
4. Finally, signout of the eG administrative interface.
