The Memory Structures Layer

The tests mapped to the Memory Structures layer (see Figure 1), report critical statistics that reveal:

  • How efficiently the locking and sorting activities occur on the monitored DB2 database
  • How well the buffer pools are managed
  • The level of I/O activity on the DB2 database

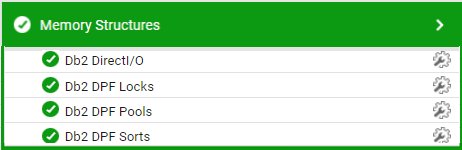

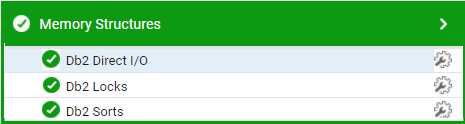

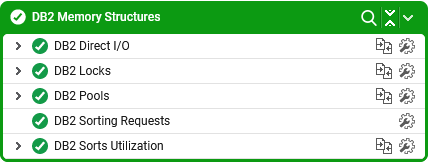

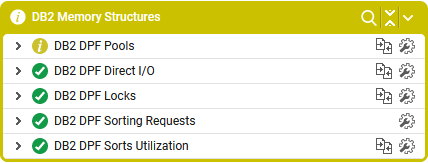

Figure 1 : The tests associated with the Memory Structures layer
