The Hardware Layer

One of the key components of a UPS is its battery. A defective battery can often cause failure of the UPS, thus disrupting the delivery of the critical business services it supports. Using the tests mapped to the Hardware layer, users can accurately determine the current health of the UPS battery, the performance of the battery and the traps captured whenever the battery is low.

Hardware layer

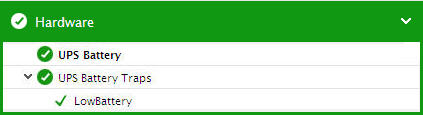

Figure 1 : The tests mapped to the Hardware layer
