Configuring Tests for Domain Exchange Online Component
After adding a Domain-Exchange Online component, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

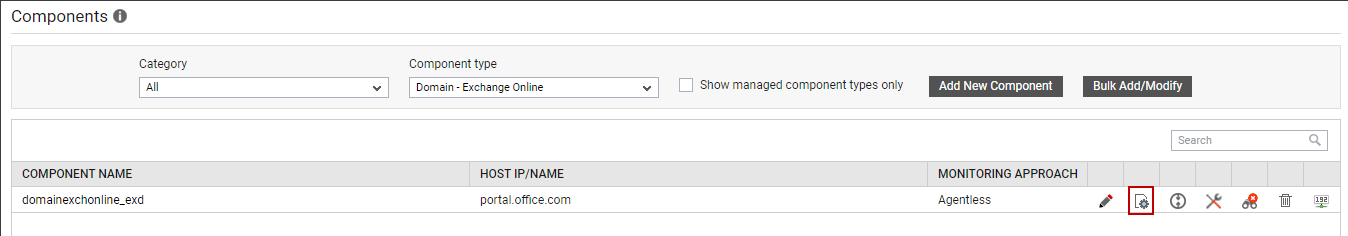

Figure 1 : Listing the newly added Domain-Exchange Online component
To collect the performance metrics, you may need to configure the tests that are mapped to the Domain-Exchange Online component. To configure the tests that need manual configuration, click on the icon in Figure 1.
Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

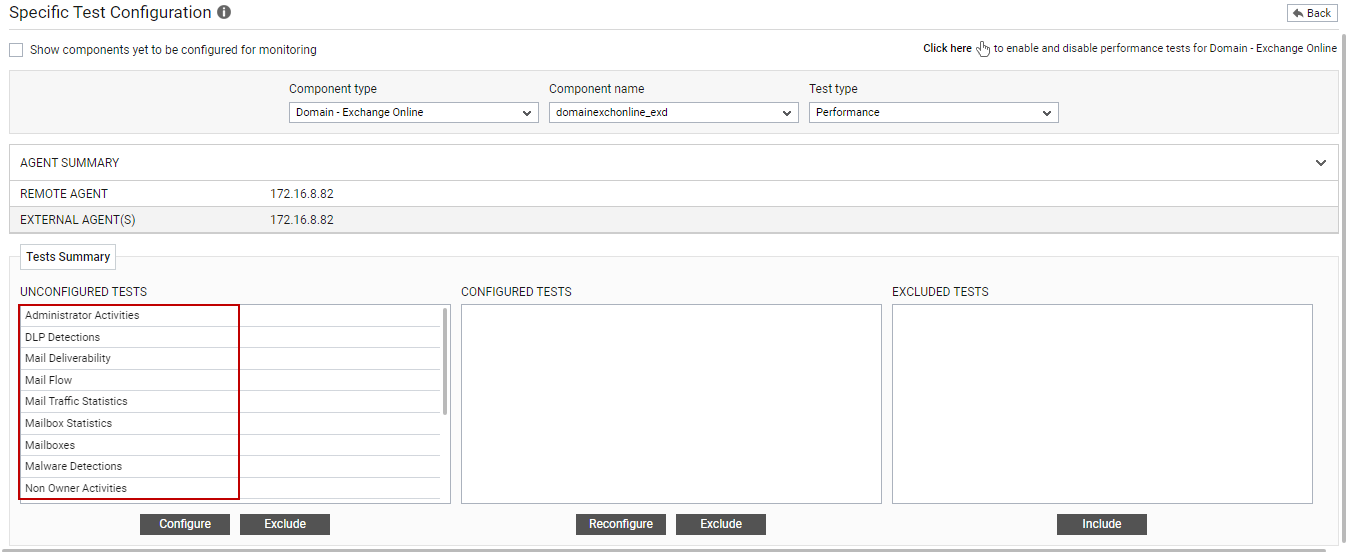

Figure 2 : The list of unconfigured tests for the Domain-Exchange Online component
Click on any of the tests in Figure 2 to configure it. For instance, if you click on the Mail Flow test, Figure 3 will appear.

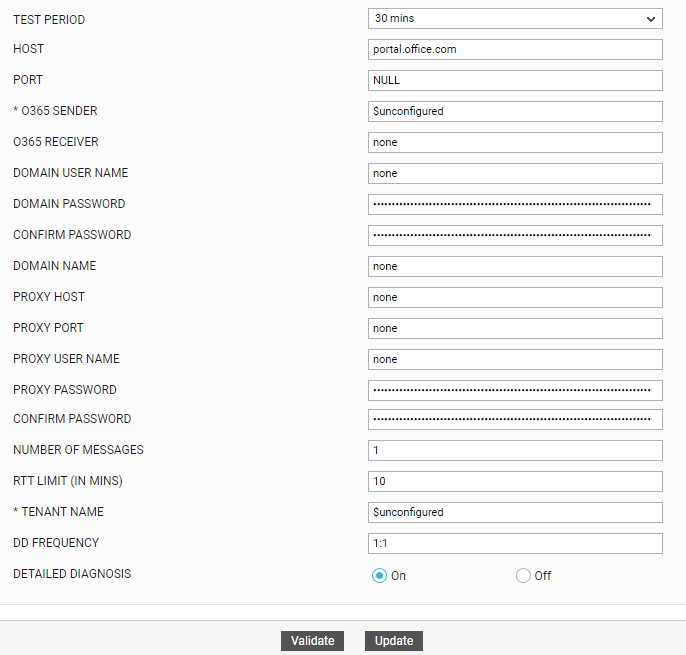

Figure 3 : Configuring the Mail Flow test
To know how to configure this test, refer to Mail Flow Test.
Click the Update button in to update the test configuration. This will automatically configure all the other unconfigured tests for the Domain-Exchange Online component.
