System Management Layer

Using the tests associated with the System Management layer (see Figure 2), you can monitor the following:

  • Status of domain and redundancy status of HP VC-Flex blade interconnect

  • Status of each blade enclosure which can hold multiple blade servers

  • Availability of VC Flex Ethernet Network

  • Status of VC Flex Fabric that is used to implement LAN/SAN convergence technology

  • Health status of the modules within the target HP VC Flex

  • Track the traffic through each port and quickly identify the port that is handling the maximum amount of traffic and resolve the problem.

  • Status of server profiles on the target environment

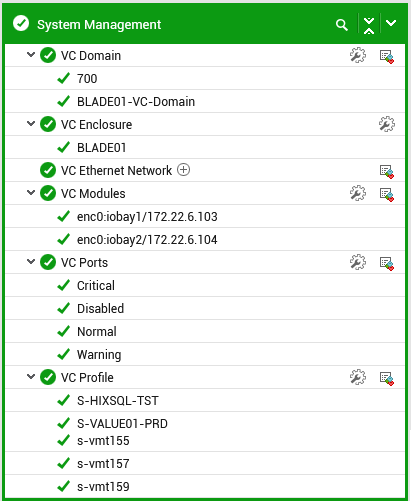

Figure 2 : The list of tests associated with System Management layer
