Datapower Statistics layer

Using the tests associated with the Datapower Statistics layer (see Figure 1), you can monitor the following:

• Total amount of encrypted/unencrypted/temporary/internal storage space on the device.

• Total amount of encrypted/unencrypted/temporary/internal space that is currently being used by this device

• Amount of encrypted/unencrypted/temporary/internal space that is currently available for use on this device.

• Percentage of encrypted/unencrypted/temporary/internal space that is currently being used by this device.

• Total size of the redundant array of inexpensive disks (RAID).

• Amount of space that is currently utilized on the RAID.

• Amount of space that is available for storing the data on the RAID.

• Percentage of space used on the RAID.

• Percentage of total load for the task during the measurement interval.

• Total number of users currently logged into the device.

• Number of new users logged into the device.

• Number of users who are currently disconnected from the device.

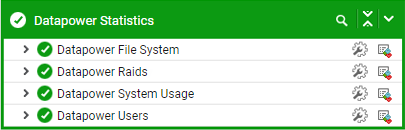

Figure 1 : The list of tests associated with the Datapower Statistics layer
