Monitoring Juniper EX Switch

eG Enterprise provides a specialized Juniper EX Switch monitoring model (see Figure 1), which periodically polls the SNMP MIB of the switch to measure the CPU usage, temperature and memory of each hardware component of the switch and notifies administrators of potential resource crunches and failures of the power supply, fans etc.

layer model

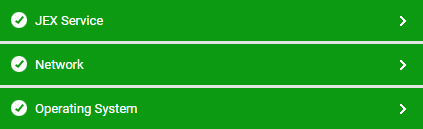

Figure 1 : The layer model of the Juniper EX Switch

Using the metrics reported , administrators can find quick and accurate answers for the following performance questions:

  • Is the CPU utilization of each hardware component optimal? If not, which hardware component is utilizing the emaximum CPU?
  • Which hardware component is consuming the maximum memory resources? Is the buffer memory and heap memory allocated to each hardware component utilized effectively?
  • Is the temperature maintained optimally for all the hardware components of the Juniper EX Switch?
  • Is any VPN tunnel hogging the bandwidth resources? If so, which one is it?
  • Are  too many fragmented packets flowing through the firewall? If so, why? Is it because of an incorrect configuration?
  • What is the mode of the routing engine available in the Juniper EX Switch?

The Network layer of the Juniper EX Switch model is similar to that of a Windows Generic server model. The tests associated to the Network layer have been dealt with in the Unix and Windows Servers model.
