The Operating System Layer

This layer tracks the current CPU usage, memory, temperature and the uptime of each hardware component of the Juniper EX Switch. Besides this, this layer helps you in identifying the number of trap messages that were sent by the switch for failures of the power supply units , fans and abnormal deduction in temperature of the hardware components.

Operating system layer

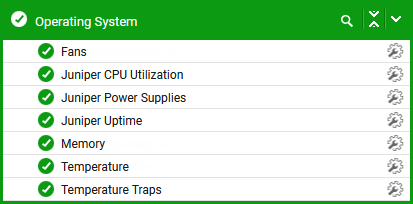

Figure 1 : The tests mapped to the Operating System layer
