Operating System Layer

This layer tracks the current CPU load, and the current status of each hardware component of the Juniper MX Router.  In addition, kernel memory utilization of the MX router is also revealed.

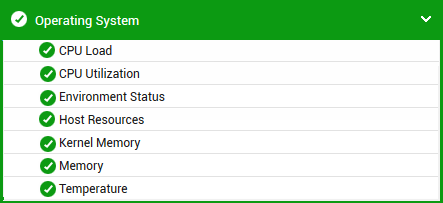

Figure 2 : The tests mapped to the Operating System layer
