Central Points Layer

The tests mapped to this layer monitors the SRX flow details of gateway, SRX forwarding engine process of gateway, and monitors Micro Kernel CPU usage, Heap usage and FWDD Realtime threads total CPU utilization and also reports key statistics like current and maximum number of sessions which help administrators to plan the management of sessions accordingly.

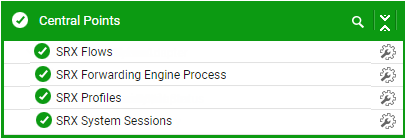

Figure 1 : The tests mapped to the Central Points layer
