Azure VPN Gateway Test

A VPN gateway is a specific type of virtual network gateway that is used to send encrypted traffic between an Azure virtual network and an on-premises location over the public Internet. You can also use a VPN gateway to send encrypted traffic between Azure virtual networks over the Microsoft network. Each virtual network can have only one VPN gateway. However, you can create multiple connections to the same VPN gateway.

Needless to say, problems experienced by a VPN gateway can adversely impact network communication and traffic routed by that gateway. Such problems can include the failure of a gateway, excessive bandwidth usage by the tunnels to a gateway, unsuitable configuration of the gateway, error events, packet drops, disconnected routes, and unusually high traffic levels. Administrators should keep an eye on these hot-spots to promptly capture real/potential anomalies and eliminate them, before critical business communication is impacted. This is where the Azure VPN Gateway test helps!

This test monitors each VPN gateway that is configured for a resource group in the target Azure subscription. For every gateway, the test reports the configuration of the gateway, and measures the bandwidth/throughput used by the tunnels of the gateway in real-time, thus indicating to administrators if the configuration fulfills the throughput requirements. Based on these insights, administrators can even decide to switch to a VPN gateway configuration that is ideal for their specific needs. The test also monitors the incoming and outgoing traffic through each VPN gateway, and alerts administrators to potentially abnormal traffic levels. In addition, the test highlights issues that can impede smooth communication over the network such as unexpected gateway failures, packet drops, sudden route disconnects, and revoked certificates. This enables administrators to accurately identify what went wrong and why, so that the appropriate remedial measures can be employed. '

Note:

Typically, to consolidate log entries, correlate log data, and perform complex analysis, the resource logs of VPN gateways are often sent to one/more Log Analytics Workspaces. This test reports valid metrics on gateway performance and problems by reading data from these Log Analytics Workspaces only. If the diagnostic logs of VPN gateways are not sent to any Log Analytics Workspace, then this test will only report the value 0 for most of its measures. To avoid this, before configuring this test, make sure that every VPN gateway's diagnostic logs are configured to be sent to at least one Log Analytics Workspace. Follow the steps discussed in Configuring a VPN Gateway's Diagnostic Logs to be Sent to a Log Analytics Workspace to achieve this.

Target of the Test: A Microsoft Azure Subscription

Agent deploying the test: A remote agent

Output of the test: One set of results for each VPN gateway configured in every resource group of the target Azure subscription

Configurable parameters for the test
Parameters Description

Test Period

How often should the test be executed.

Host

The host for which the test is to be configured.

Subscription ID

Specify the GUID which uniquely identifies the Microsoft Azure Subscription to be monitored. To know the ID that maps to the target subscription, do the following:

  1. Login to the Microsoft Azure Portal.

  2. When the portal opens, click on the Subscriptions option (as indicated by Figure 1).

    Figure 1 : Clicking on the Subscriptions option

  3. Figure 2 that appears next will list all the subscriptions that have been configured for the target Azure AD tenant. Locate the subscription that is being monitored in the list, and check the value displayed for that subscription in the Subscription ID column.

    Figure 2 : Determining the Subscription ID

  4. Copy the Subscription ID in Figure 2 to the text box corresponding to the SUBSCRIPTION ID parameter in the test configuration page.

Tenant ID

Specify the Directory ID of the Azure AD tenant to which the target subscription belongs. To know how to determine the Directory ID, refer to Configuring the eG Agent to Monitor the Microsoft Azure App Service

Client ID and Client Password

The eG agent communicates with the target Microsoft Azure Subscrption using Java API calls. To collect the required metrics, the eG agent requires an Access token in the form of an Application ID and the client secret value. To know how to determine the Application ID and the key, refer to Configuring the eG Agent to Monitor the Microsoft Azure App Service. Specify the Application ID of the created Application in the Client ID text box and the client secret value in the Client Password text box.

Proxy Host

In some environments, all communication with the Azure cloud be routed through a proxy server. In such environments, you should make sure that the eG agent connects to the cloud via the proxy server and collects metrics. To enable metrics collection via a proxy, specify the IP address of the proxy server and the port at which the server listens against the Proxy Host and Proxy Port parameters. By default, these parameters are set to none, indicating that the eG agent is not configured to communicate via a proxy, by default.

Proxy Username, Proxy Password and Confirm Password

If the proxy server requires authentication, then, specify a valid proxy user name and password in the Proxy Username and Proxy Password parameters, respectively. Then, confirm the password by retyping it in the Confirm Password text box.

Log Analytics Workspace

The resource logs pertaining to a VPN gateway can be sent to a designated Log Analytics Workspace, so that administrators can easily consolidate, correlate, and perform complex analysis on the log entries.

By default, the Log Analytics Workspace Name parameter is set to All. This indicates that the test reads event data from all Log Analytics Workspaces configured for the monitored VPN gateways, by default. However, if you want the test to use only specific Log Analytics Workspaces for metrics collection, then provide the names of these workspaces here as a comma-separated list. To determine the names of the workspaces, do the following:

  1. Login to the Microsoft Azure Portal and select the Monitor service. Figure 3 will then appear. Click on the Diagnostic Settings option in the left panel of Figure 3.

Figure 3 : Selecting the Diagnostic Settings option of the Azure Monitor

  1. Figure 4 will then appear listing all the resources of a chosen subscription. Here, select the Subscription being monitored. In the resource list of that subscription, locate the VPN gateway (this should typically be of the Resource Type, Virtual Network Gateway) for which you want to define/view diagnostic settings. Then, click on that gateway.

    Figure 4 : Clicking on the VPN gateway to be monitored

  2. Figure 5 will then appear. This will list the diagnostic settings that pre-exist for the chosen VPN gateway. If any of the existing diagnostic settings have already been configured with Log Analytics Workspaces, then the Log Analytics workspace column highlighted in Figure 5 will display these workspace names. You can configure the LOG ANALYTICS WORKSPACE NAME parameter of this test with any of these workspace names. If required, you can even configure this parameter with two/more workspaces listed in Figure 5, as a comma-separated list

    Figure 5 : List of workspace names

  1. However, If the Log Analytics workspace column in Figure 5 is blank for all the existing diagnostic settings, it is a clear indication that the VPN gateway's diagnostic logs are yet to be configured to be sent to any Log Analytics Workspace. In this case therefore, you should create a new diagnostic setting for the target VPN gateway, where a Log Analytics Workspace is configured as the destination for the resource logs. To achieve this, follow the procedure detailed in Configuring a VPN Gateway's Diagnostic Logs to be Sent to a Log Analytics Workspace.

Gateway Success DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the Gateway success events measure. If you want to know the details of gateway connections established successfully, then set this flag to True.

Gateway Failed DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the Gateway failed events measure. If you want to know the details of gateway connections that failed, then set this flag to True.

Tunnel Connected DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the Tunnels connected measure. If you want to know the details of all the tunnels that are connected to each VPN gateway, then set this flag to True.

Tunnel Disconnected DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the Tunnels disconnected measure. If you want to know the details of all the tunnels that are disconnected from each VPN gateway, then set this flag to True.

Routes Connected DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the Routes connected measure. If you want to know the details of all the routes that are connected to each VPN gateway, then set this flag to True.

Routes Disconnected DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the Routes disconnected measure. If you want to know the details of all the routes that are disconnected from each VPN gateway, then set this flag to True.

Routes Updates DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the Route updates measure. If you want to know the details of all the routes that are updated, then set this flag to True.

P2S Events DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the P2S events measure. If you want to view the complete list of Point-to-Site control messages and events on each VPN gateway, then set this flag to True.

IKE Events DD

By default, this flag is set to False. This means that by default, this test does not report detailed diagnosis for the IKE events measure. If you want to view the complete list of IKE control messages and events on each VPN gateway, then set this flag to True.

Detailed Diagnosis

To make diagnosis more efficient and accurate, the eG Enterprise embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option.

The option to selectively enable/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled:

  • The eG manager license should allow the detailed diagnosis capability
  • Both the normal and abnormal frequencies configured for the detailed diagnosis measures should not be 0.
Measures reported by the test:

Measurement

Description

Measurement Unit

Interpretation

Provisioning state

Indicates the current provisioning state of this VPN gateway.



The values reported by this measure and its numeric equivalents are mentioned in the table below:

Measure Value Numeric Value
Failed 1
Updating 2
Deleting 3
Succeeded 4

Note:

By default, this measure reports the Measure Values listed in the table above to indicate the current provisioning state of this VPN gateway. In the graph of this measure however, the same is represented using the numeric equivalents only.

Use the detailed diagnosis of this measure to know the resource GUID, location,SKU, tier capacity, and etag of the VPN gateway.

Gateway types

Indicates the type of this gateway.



The values reported by this measure and its numeric equivalents are mentioned in the table below:

Measure Value Numeric Value

Description

VPN 1 To send encrypted traffic across the public Internet, you use the gateway type 'Vpn'
Express Routes 2 To send network traffic on a private connection, you use the gateway type 'ExpressRoute'
Local Gateway 3 Represents the hardware or software VPN device in your local network at In-house. This is generally created in Azure to set up a site to site (s2s) VPN connection between an Azure Virtual network and your local network.

Note:

By default, this measure reports the Measure Values listed in the table above to indicate the type of gateway. In the graph of this measure however, the same is represented using the numeric equivalents only.

VPN types

Indicates the type of this VPN.

Number

The values reported by this measure and its numeric equivalents are mentioned in the table below:

Measure Value Numeric Value

Description

PolicyBased 1 Policy-based VPNs encrypt and direct packets through IPsec tunnels based on the combinations of address prefixes between your on-premises network and the Azure VNet.
RouteBased 2 Route-based VPNs use "routes" in the IP forwarding or routing table to direct packets into their corresponding tunnel interfaces.

Note:

By default, this measure reports the Measure Values listed in the table above to indicate the type of VPN. In the graph of this measure however, the same is represented using the numeric equivalents only.

Gateway generations

Indicates this VPN gateway's generation



The values reported by this measure and its numeric equivalents are mentioned in the table below:

Measure Value Numeric Value
Generation1 1
Generation2 2
none 0

Note:

By default, this measure reports the Measure Values listed in the table above to indicate the generation this VPN gateway belongs to. In the graph of this measure however, the same is represented using the numeric equivalents only.

Is BGP enabled?

Indicates if the BGP feature is enabled for this VPN gateway.



BGP is the standard routing protocol commonly used in the Internet to exchange routing and reachability information between two or more networks. When used in the context of Azure Virtual Networks, BGP enables the Azure VPN Gateways and your on-premises VPN devices, called BGP peers or neighbors, to exchange "routes" that will inform both gateways on the availability and reachability for those prefixes to go through the gateways or routers involved. BGP can also enable transit routing among multiple networks by propagating routes a BGP gateway learns from one BGP peer to all other BGP peers.

The values reported by this measure and its numeric equivalents are mentioned in the table below:

Measure Value Numeric Value
False 1
True 2

Note:

By default, this measure reports the Measure Values listed in the table above to indicate whether/not BGP is enabled for a VPN gateway. In the graph of this measure however, the same is represented using the numeric equivalents only.

Is private IP enabled?

Indicates whether/not private IPs are enabled on this VPN gateway.



The values reported by this measure and its numeric equivalents are mentioned in the table below:

Measure Value Numeric Value
False 1
True 2

Note:

By default, this measure reports the Measure Values listed in the table above to indicate whether/not private IPs are enabled on a VPN gateway. In the graph of this measure however, the same is represented using the numeric equivalents only.

Is activeActive flag enabled?

Indicates whether/not this VPN gateway is created in an Active-Active configuration.



You can create an Azure VPN gateway in an active-active configuration, where both instances of the gateway VMs will establish S2S VPN tunnels. Because the Azure gateway instances are in active-active configuration, the traffic from your Azure virtual network to your on-premises network will be routed through both tunnels simultaneously, even if your on-premises VPN device may favor one tunnel over the other. When a planned maintenance or unplanned event happens to one gateway instance, the IPsec tunnel from that instance to your on-premises VPN device will be disconnected. The corresponding routes on your VPN devices should be removed or withdrawn automatically so that the traffic will be switched over to the other active IPsec tunnel. On the Azure side, the switch over will happen automatically from the affected instance to the active instance.

The values reported by this measure and its numeric equivalents are mentioned in the table below:

Measure Value Numeric Value
False 1
True 2

Note:

By default, this measure reports the Measure Values listed in the table above to indicate whether/not the gateway is created in an Active-Active configuration. In the graph of this measure however, the same is represented using the numeric equivalents only.

Total IPs configured

Indicates the number of IPs configured on this VPN gateway.

Number

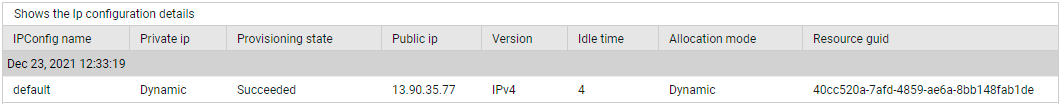

Use the detailed diagnosis of this measure to view the private IPs that have been configured on the gateway, the public IPs that map to each, the location, the SKU, the tier, allocation mode, and idle time of every private IP.

Client root certificates

Indicates the number of root certificates that this VPN gateway uses to authenticate clients connecting to it.

Number

Certificates are used by Azure to authenticate clients connecting to a VNet over a Point-to-Site VPN connection. Once you obtain a root certificate, you upload the public key information to Azure. The root certificate is then considered 'trusted' by Azure for connection over P2S to the virtual network. You also generate client certificates from the trusted root certificate, and then install them on each client computer. The client certificate is used to authenticate the client when it initiates a connection to the VNet.

Use the detailed diagnosis of this measure to know the name, state, and public certificate associated with every root certificate used by a gateway.

Client revoked certificates

Indicates the number of client certificates that are revoked for this VPN gateway.

Number

You can revoke client certificates. The certificate revocation list allows you to selectively deny Point-to-Site connectivity based on individual client certificates. This is different than removing a trusted root certificate. If you remove a trusted root certificate .cer from Azure, it revokes the access for all client certificates generated/signed by the revoked root certificate. Revoking a client certificate, rather than the root certificate, allows the other certificates that were generated from the root certificate to continue to be used for authentication.

Use the detailed diagnosis of this measure to know the name, state, and public certificate associated with every client certificate that is revoked.

Client IPsec policies

Indicates the number of IPsec policies created for this VPN gateway.

Number

VPN gateways use IPsec policies for Site-to-Site VPN or VNet-to-VNet connections using the Azure portal.

Use the detailed diagnosis of this measure to view the complete information related to the IPsec policies created for a gateway.

Radius servers

Indicates the number of RADIUS servers used for authenticating P2S (Point-to-Site) connections via this VPN gateway.

Number

Using the detailed diagnosis of this measure, you can determine the address and score of each RADIUS server used for authenticating P2S connections.

Client protocols

Indicates the number of client protocols supported by this VPN gateway.

Number

The detailed diagnosis of this measure lists the client protocols supported by the gateway.

Authentication types

Indicates the number of authentication types supported by this VPN gateway.

Number

The detailed diagnosis of this measure lists the authentication types supported by the gateway.

Gateway P2S bandwidth

Indicates the average combined bandwidth utilization of all point-to-site connections on this gateway.

KB/Sec

Throughput is the rate that data is sent through the VPN Gateway. VPN Gateways have different throughput benchmarks depending on the gateway type and SKU. Both Site-to-Site (S2S) and Point-to-Site (P2S) connections share the same bandwidth on a VPN gateway, so increased usage from one type of connection can impact the performance of the other type. Hitting the maximum throughput on a VPN Gateway can be an indication that you should look at your network to either decrease throughput requirements, or increase the capacity of the gateway.

Gateway S2S bandwidth

Indicates the average combined bandwidth utilization of all site-to-site connections on this gateway.

KB/Sec

P2S connections count

Indicates the number of point-to-site connections on this gateway.

Number

Azure VPN Gateways limit the number of Point-to-Site (P2S) connections allowed to a single gateway. Depending on their SKU, VPN Gateways can be configured to allow connections using these protocols:

  • Secure Socket Tunneling Protocol (SSTP)

  • OpenVPN

  • IKEv2 VPN

SSTP Connections are limited to 128 concurrent connections for all VPN Gateway SKUs. There is not a way to increase this limit, but most VPN clients will support one of the other protocols so connecting over a different protocol may help avoid the limit. OpenVPN and IKEv2 connections are limited together and together have a higher limit than SSTP connections.

Hitting the limit on the number of connections will prevent additional connections from succeeding. This can impact your employee by not allowing them access to the network when it is needed. If you are hitting P2S connection limits frequently, you may consider implementing a policy such that your employees only connect when they need access to the virtual network, or you can upgrade your gateway to allow for more connections or set up multiple gateways.

Tunnels bandwidth

Indicates the average bandwidth utilization of tunnels created on this gateway.

KB/Sec

When you create a virtual network gateway, you specify the gateway SKU that you want to use. Select the SKU that satisfies your requirements based on the types of workloads, throughputs, features, and SLAs.

Aggregate Throughput Benchmark for a VPN Generation:SKU combination is based on measurements of multiple tunnels aggregated through a single gateway. The Aggregate Throughput Benchmark for a VPN Gateway is S2S + P2S combined. If the value of this measure is consistently close to the Aggregate Throughput Benchmark, it means that SKU chosen may not be able to fulfill the application throughput requirements of the gateway. You may want to consider choosing a different SKU for the gateway in this case.

Egress traffic

Indicates the traffic flowing out of the tunnels created on this gateway.

KB

If the value of the Tunnel bandwidth measure is abnormally high for a gateway, you may want to compare the value of these measures to figure out if the unusual bandwidth consumption is owing to incoming or outgoing traffic.



Ingress traffic

Indicates the traffic flowing into the tunnels created on this gateway.

KB

Egress packets

Indicates the number of outgoing packets for this gateway.

Number

If the value of the Tunnel bandwidth measure is abnormally high for a gateway, you may want to compare the value of these measures to figure out if the unusual bandwidth consumption is owing to incoming or outgoing traffic.





Ingress packets

Indicates the number of incoming packets for this gateway.

Number

Egress TS mismatch packet drops

Indicates the number of outgoing packets dropped by tunnels on this gateway, because of a traffic-selector mismatch.

Number

Traffic selector mismatch occurs when the local and remote addresses for traffic in the VPN tunnel does not match the traffic selectors configured on either end of the VPN.

Traffic selector mismatch is caused by configuration on either end of the VPN tunnel. Azure VPN Gateways support specific IPsec and IKE configurations that must match with the device on the other end of the tunnel.

Ideally therefore, the value of these measures should be 0.

Ingress TS mismatch packet drops

Indicates the number of incoming packets dropped by tunnels on this gateway, because of a traffic-selector mismatch.

Number

NAT allocations

Indicates the number of NAT ports allocated by this gateway.

Number



NAT flows

Indicates the number of outbound traffic flows provided by this gateway.

Number

NAT gateway provides outbound internet connectivity for one or more subnets of a virtual network. Once NAT gateway is associated to a subnet, NAT provides source network address translation (SNAT) for that subnet. NAT gateway specifies which static IP addresses virtual machines use when creating outbound flows.

Each NAT gateway can support 64,000 flows each for TCP and UDP per assigned outbound IP address.

NATed traffic

Indicates the number of bytes processed inbound and outbound by this gateway.

KB



Reverse NATed traffic

Indicates the data traffic - inbound and outbound - over reverse NAT.

KB

Reverse NAT is a specific sub-type of Static NAT. It refers to the translation of a Public IP (For example on the DSL Router) to a Private IP (User PC). Since the direction is 'Reverse' its called Reverse NAT.

NATed packets

Indicates the number of packets processed inbound and outbound by this gateway.

Number



Reverse NATed packets

Indicates the number of packets processed - inbound and outbound - over reverse NAT.

Number



NAT packet drops

Indicates the number of packets dropped by this NAT gateway.

Number

Ideally, the value of this measure should be 0.

Gateway success events

Indicates the number of events logged in the GatewayDiagnosticLog of this gateway, which are tagged as successful.

Number

Configuration changes are audited in the GatewayDiagnosticLog. The events that trigger such changes are: SetGatewayConfiguration, SetConnectionConfiguration, HostMaintenanceEvent, GatewayTenantPrimaryChanged, MigrateCustomerSubscription, GatewayResourceMove, ValidateGatewayConfiguration

Use the detailed diagnosis of this measure to know which configuration changes triggered successful change events.

Note that this measure will report detailed metrics only if the GATEWAY SUCCESS DD flag of this test is set to True.

Gateway failed events

Indicates the number of events logged in the GatewayDiagnosticLog of this gateway, which are tagged as failed.

Number

Ideally, the value of this measure should be 0.

Use the detailed diagnosis of this measure to know which configuration changes failed to be effected on the gateway.

Note that this measure will report detailed metrics only if the GATEWAY FAILED DD flag of this test is set to True.

Tunnels connected

Indicates the number of TunnelConnected events logged in the TunnelDiagnosticLog of this gateway.

Number

For details of all the TunnelConnected events logged in the TunnelDiagnosticLog, use the detailed diagnosis of this measure.

Note that this measure will report detailed metrics only if the TUNNEL CONNECTED DD flag of this test is set to True.

Tunnels disconnected

Indicates the number of TunnelDisconnected events logged in the TunnelDiagnosticLog of this gateway.

Number

Ideally, the value of this measure should be 0.

For details of all the TunnelDisconnected events logged in the TunnelDiagnosticLog, use the detailed diagnosis of this measure.

Note that this measure will report detailed metrics only if the TUNNEL DISCONNECTED DD flag of this test is set to True.

Routes connected

Indicates the number of BgpConnectedEvent events logged in the RouteDiagnosticLog of this gateway.

Number

For details of all the BgpConnected events logged in the RouteDiagnosticLog, use the detailed diagnosis of this measure.

Note that this measure will report detailed metrics only if the ROUTES CONNECTED DD flag of this test is set to True.

Routes disconnected

Indicates the number of BgpDisconnectedEvent events logged in the RouteDiagnosticLog of this gateway.

Number

Ideally, the value of this measure should be 0.

For details of all the BgpDisconnected events logged in the RouteDiagnosticLog, use the detailed diagnosis of this measure.

Note that this measure will report detailed metrics only if the ROUTES DISCONNECTED DD flag of this test is set to True.

Route updates

Indicates the number of StaticRouteUpdate and BgpRouteUpdate events logged in the RouteDiagnosticLog of this gateway.

Number

For details of all the StaticRouteUpdate and BgpRouteUpdate events logged in the RouteDiagnosticLog, use the detailed diagnosis of this measure.

Note that this measure will report detailed metrics only if the ROUTES UPDATES DD flag of this test is set to True

P2S events

Indicates the number of P2SLogEvent events logged in the P2SDiagnosticLog of this gateway.

Number

For details of all the P2SLogEvent events logged in the P2SDiagnosticLog, use the detailed diagnosis of this measure.

Note that this measure will report detailed metrics only if the P2S EVENTS DD flag of this test is set to True

IKE events

Indicates the number of events logged in the IKEDiagnosticLog of this gateway.

Number

For details of all the events logged in the IKEDiagnosticLog, use the detailed diagnosis of this measure.

Note that this measure will report detailed metrics only if the IKE EVENTS DD flag of this test is set to True

Use the detailed diagnosis of the Total IPs configured measure to view the private IPs that have been configured on the gateway, the public IPs that map to each, the location, the SKU, the tier, allocation mode, and idle time of every private IP.

Figure 6 : The detailed diagnosis of the Total IPs configured measure
