Configuring Tests for the Microsoft Teams Domain Component

After adding a Domain-Microsoft Teams component, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

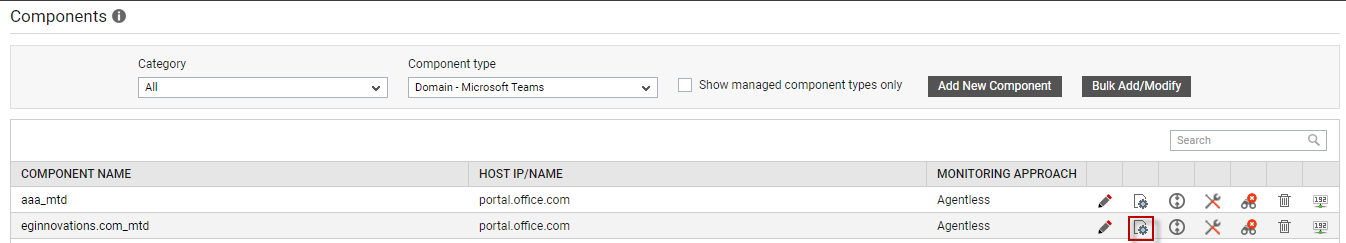

Figure 1 : Listing the newly added Domain-Microsoft Teams component

To collect the performance metrics, you may need to configure the tests that are mapped to the Domain-Microsoft Teams component. To configure the tests that need manual configuration, click on the icon in Figure 1.

Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

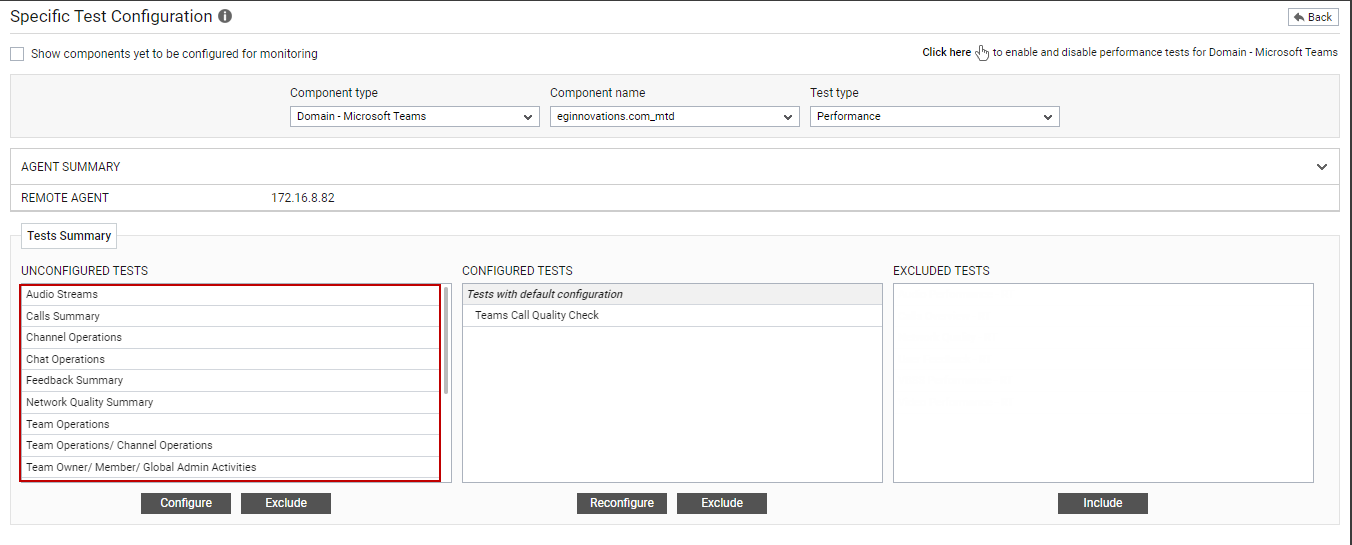

Figure 2 : The list of unconfigured tests for the Domain-Microsoft Teams component

Click on any of the tests in Figure 2 to configure it. For instance, if you click on the Audio Streams test, Figure 3 will appear.

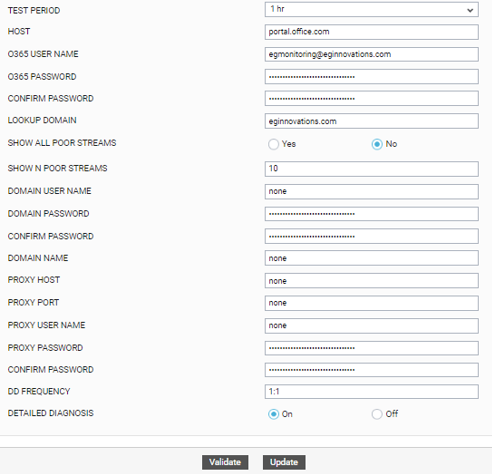

Figure 3 : Configuring the Audio Streams test

To know how to configure this test, refer to Audio Streams Test.

Click the Update button in Figure 3 to update the test configuration. This will automatically configure all the other unconfigured tests for the Domain-Microsoft Teams component.
