Configuring Tests for the Nutanix AHV Server

Once the AHV server is managed in eG, sign out of the eG administrative interface. When doing so, you will be prompted to manually configure the tests associated with the AHV server.

Unconfigured Tests for Nutanix AHV Server

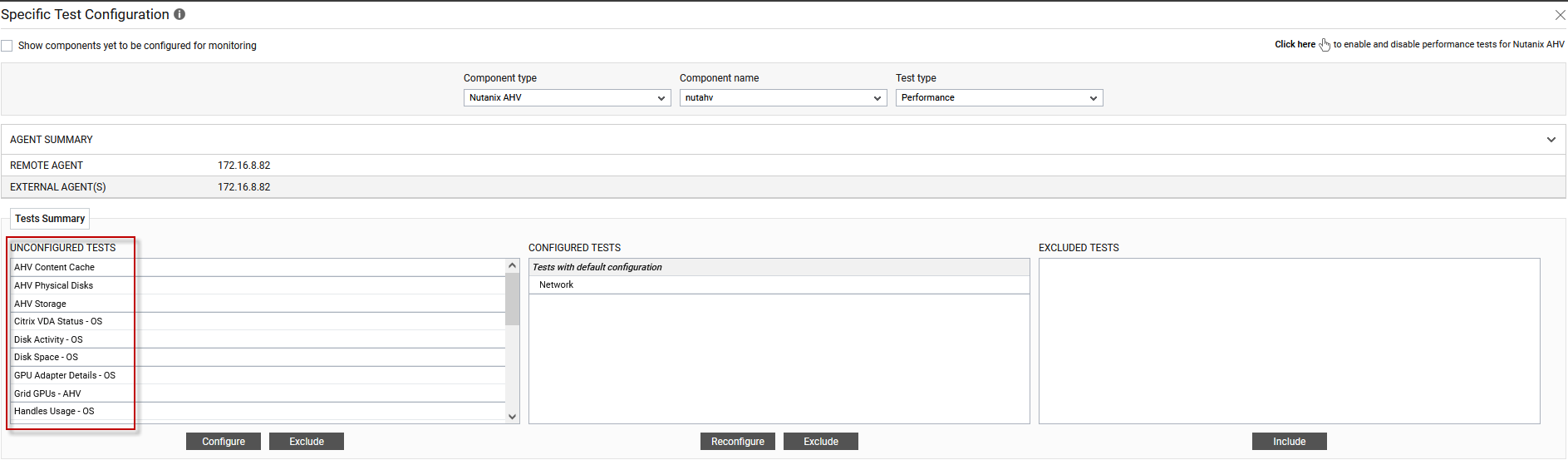

Figure 1 : The list of unconfigured tests for the Nutanix AHV server

Click on any test to configure it. Say, you click on the Citrix VDA Status - OS test to configure it. Figure 2 will then appear.

Configuring Citrix VDA Status - OS Test

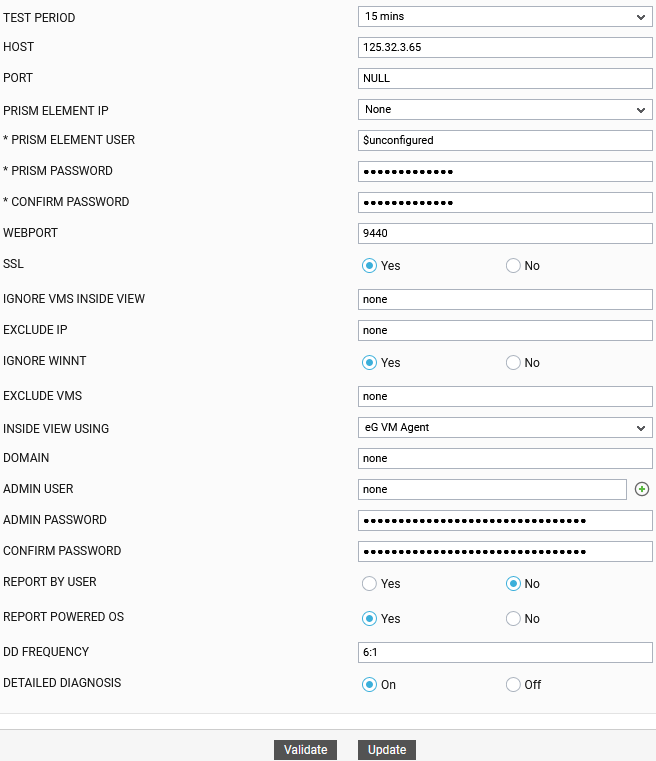

Figure 2 : Configuring the Citrix VDA Status - OS test

To know how to configure this test, refer to the Citrix VDA Status - OS Test topic.

Finally, click the Update button to save the test configuration. Configuring a single test will automatically configure all other AHV tests. You can now sign out of the eG administrative interface, and then log into the eG monitor interface to view the layer model of the Nutanix AHV server and the performance metrics reported by the tests mapped to each layer. For details regarding the same, refer to Monitoring the Nutanix AHV Server.
