Oracle Objects Test

The OracleObjects test is used to monitor one or more database user accounts. This test is disabled by default. To enable the test, go to the enable / disable tests page using the menu sequence : Agents -> Tests -> Enable/Disable, pick Oracle Database as the Component type, Performance as the Test type, choose this test from the disabled tests list, and click on the << button to move the test to the ENABLED TESTS list. Finally, click the Update button.

Target of the test : An Oracle server

Agent deploying the test : An internal agent

Outputs of the test : One set of results for every user account monitored.

Configurable parameters for the test
  1. TEST PERIOD - How often should the test be executed
  2. Host – The host for which the test is to be configured
  3. Port - The port on which the server is listening

  4. User – In order to monitor an Oracle database server, a special database user account has to be created in every Oracle database instance that requires monitoring. A Click here hyperlink is available in the test configuration page, using which a new oracle database user can be created. Alternatively, you can manually create the special database user. When doing so, ensure that this user is vested with the select_catalog_role and create session privileges.

    The sample script we recommend for user creation (in Oracle database server versions before 12c) for eG monitoring is:

    create user oraeg identified by oraeg

    create role oratest;

    grant create session to oratest;

    grant select_catalog_role to oratest;

    grant oratest to oraeg;

    The sample script we recommend for user creation (in Oracle database server 12c) for eG monitoring is:

    alter session set container=<Oracle_service_name>;

    create user <user_name>identified by <user_password> container=current default tablespace <name_of_default_tablespace> temporary tablespace <name_of_temporary_tablespace>;

    Grant create session to <user_name>;

    Grant select_catalog_role to <user_name>;

    The name of this user has to be specified here.

  5. Password – Password of the specified database user

    This login information is required to query Oracle’s internal dynamic views, so as to fetch the current status / health of the various database components.

  6. Confirm password – Confirm the password by retyping it here.

  7. ACCOUNTS - Specify the database user account to be monitored. Multiple database user accounts can be provided as a comma-separated list.

  8. ISPASSIVE – If the value chosen is yes, then the Oracle server under consideration is a passive server in an Oracle cluster. No alerts will be generated if the server is not running. Measures will be reported as “Not applicable" by the agent if the server is not up.
  9. SSL- By default, this flag is set to No, as the target Oracle database is not SSL-enabled by default. If the target database is SSL-enabled, then set this flag to Yes.
  10. SSL Cipher-This parameter is applicable only if the target Oracle database is SSL-enabled, if not, set this parameter to none. A cipher suite is a set of cryptographic algorithms that are used before a client application and server exchange information over an SSL/TLS connection. It consist of sets of instructions on how to secure a network through SSL (Secure Sockets Layer) or TLS (Transport Layer Security). In this text box, provide a comma-seperated list of cipher suites that are allowed for SSL/TLS connection to the target database. By default, this parameter is set to none.
  11. TRUSTSTORE FILE- This parameter is applicable only if the target Oracle database is SSL-enabled, if not, set this parameter to none. TrustStore is used to store certificates from Certified Authorities (CA) that verify and authenticate the certificate presented by the server in an SSL connection. Therefore, the eG agent should have access to the truststore where the certificates are stored to authenticate and connect with the target database and collect metrics. For this, first import the certificates into the following default location <eG_INSTALL_DIR>/lib/security/mytruststore.jks. To know how to import the certificate into the truststore, refer toPre-requisites for monitoring Oracle Cluster. Then, provide the truststore file name in this text box. For example: mytruststore.jks. By default, none is specified against this text box.
  12. TRUSTSTORE TYPE-This parameter is applicable only if the target Oracle database is SSL-enabled, if not, set this parameter to none.Specify the type of truststore that contains the certificates for server authentication in this text box. For eg.,JKS. By default, this parameter is set to the value none.
  13. TRUSSTORE PASSWORD-This parameter is applicable only if the target Oracle database is SSL-enabled, if not, set this parameter to none. If a Truststore File name is provided, then, in this text box, provide the password that is used to obtain the associated certificate details from the Truststore File. By default, this parameter is set to none.

  14. DETAILED DIAGNOSIS – To make diagnosis more efficient and accurate, the eG Enterprise embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option.

    The option to selectively enable/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled:

    • The eG manager license should allow the detailed diagnosis capability
    • Both the normal and abnormal frequencies configured for the detailed diagnosis measures should not be 0.
Measurements made by the test
Measurement Description Measurement Unit Interpretation

Invalid objects:

The number of invalid objects in the database for a specific user account. The detailed diagnosis capability, if turned on, provides the list of invalid objects and their type.

Number

The detailed diagnosis capability for this measure, if enabled, lists the names and the type of the invalid objects of a user.

Modified objects:

The number of objects for a specific user account that have been modified in the last measurement period

Number

This measure allows changes to the database structure to be tracked over time. The detailed diagnosis capability, if enabled, indicates the names of the objects that have been modified and their type.

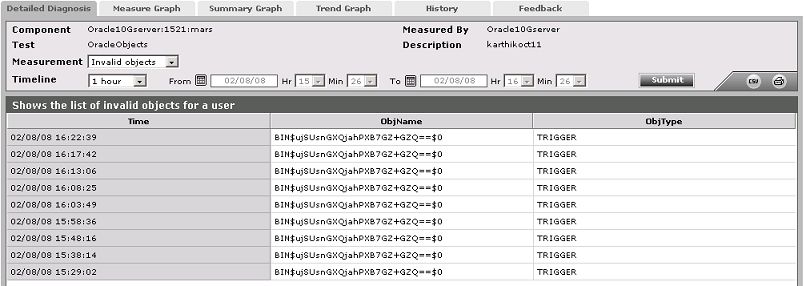

The detailed diagnosis of the Invalid objects measure lists the invalid objects in the database for a user (see Figure 1). By dropping such invalid objects, tablespace can be conserved.

invalidobjDD-final

Figure 1 : The detailed diagnosis of the Invalid objects measure
