Configuring tests for Oracle VM Manager

  1. After adding a Oracle VM Manger component, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

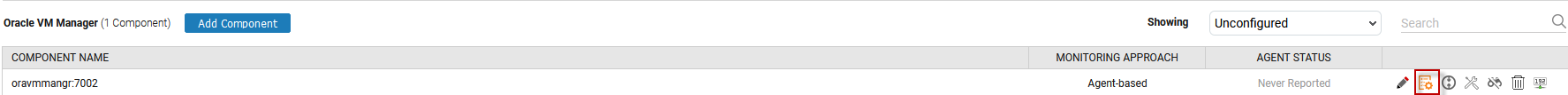

    Figure 1 : Listing the newly added Oracle VM Manger components

  2. To collect the performance metrics, you may need to configure the tests that are mapped to the Oracle VM Manager component. To configure the tests that need manual configuration, click on the icon in Figure 1.

  3. Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

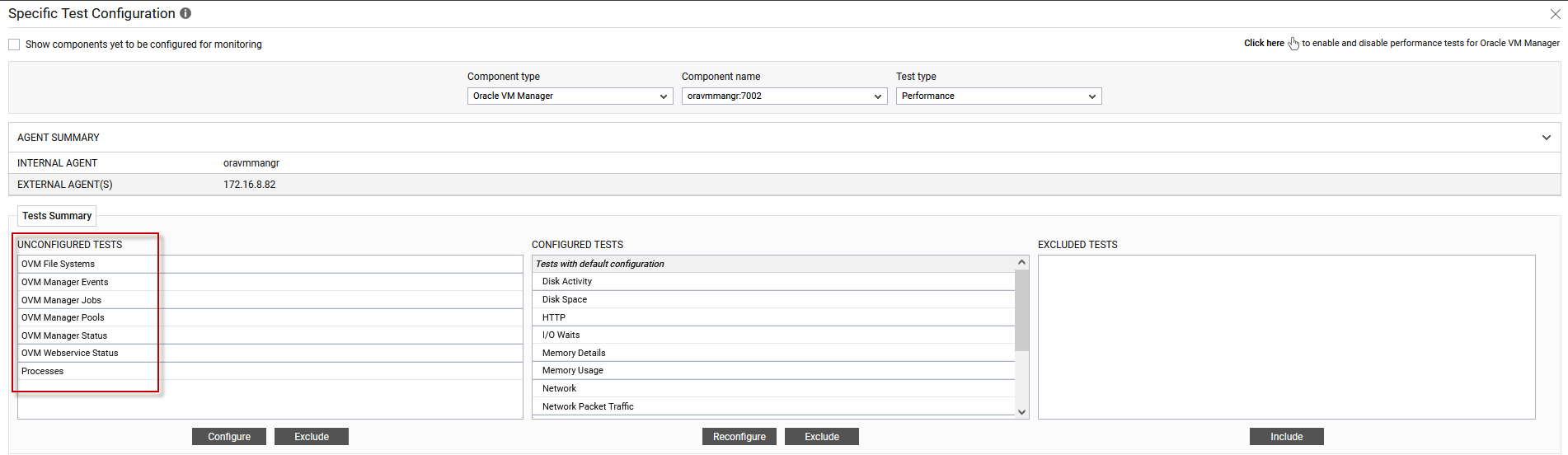

    Figure 2 : The list of unconfigured tests for Oracle VM Manger component

  4. Click on any of the tests inFigure 2 to configure it. For instance, if you click on the OVM Manager Events Test,Figure 3 will appear.

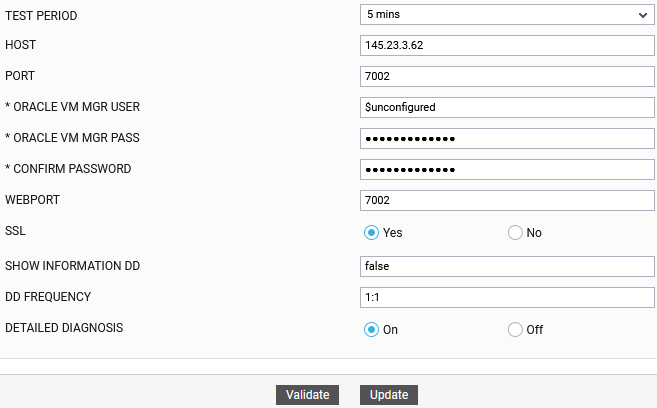

    Figure 3 : Configuring the OVM Manager Events Test

  5. To know how to configure this test, refer to OVM Manager Events Test

  6. Click the Update button in  to update the test configuration. This will automatically configure all the other unconfigured tests for the Oracle VM Manger component.
