Managing the RHEV Hypervisor

eG Enterprise can automatically discover the RHEV Hypervisor in the environment. The discovered hypervisor can be managed using the following steps:

1. Log into the eG administrative interface.

2. To manage the RHEV Hypervisor that is already discovered, directly proceed towards managing it using the COMPONENTS – MANAGE/UNMANAGE page (Infrastructure -> Components -> Manage/Unmanage).

3. However, if it is yet to be discovered, then run discovery (Infrastructure -> Components -> Discover) to discover or add the component manually using the COMPONENTSpage (Infrastructure -> Components -> Add/Modify). Remember that components manually added are managed automatically. Discovered components, however, are managed using the COMPONENTS – MANAGE / UNMANAGEpage. and Figure 2 clearly illustrate the process of managing the RHEV Hypervisor server.

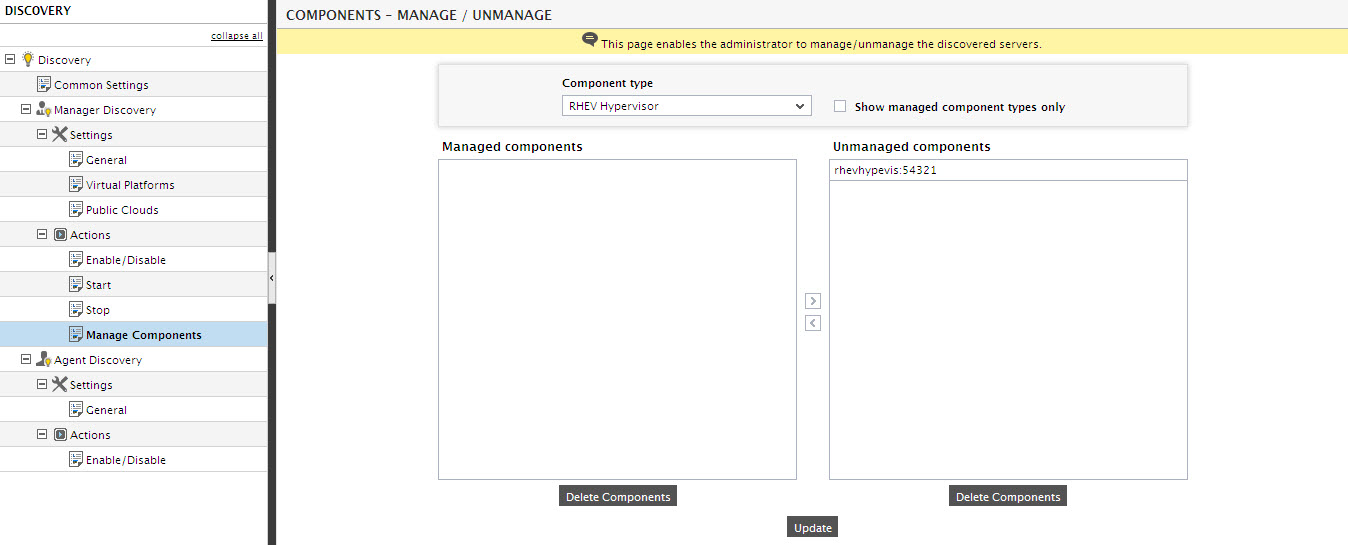

   Figure 1 : Viewing unmanaged RHEV Hypervisors



   Figure 2 : Managing RHEV Hypervisors

4. When you attempt to sign out of the eG administrative interface, a list of unconfigured tests will appear as shown in Figure 3:

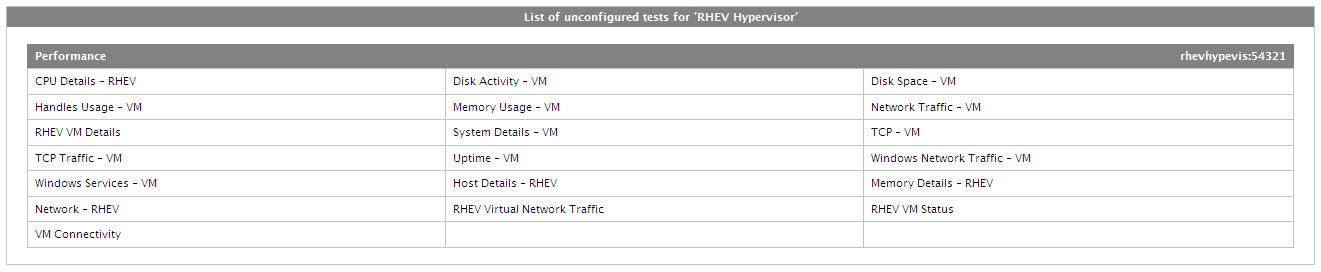

   Figure 3 : List of Unconfigured tests for RHEV Hypervisor

5. Configure the tests by clicking on the test names. See Monitoring the RHEV Hypervisor chapter for more details on configuring the tests.

6. Finally, signout of the administrative interface.
