Monitoring the Voyager Front End (FE)

eG Enterprise uses the Voyager FrontEnd hierarchical model (see Figure 1)  to represent the front end of the Voyager application.

layermodel-finalest

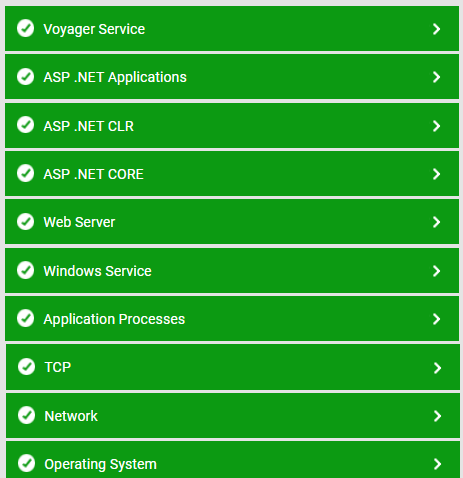

Figure 1 : The layer model of the Voyager Front End component

Of the top 4 layers in Figure 1, the last 3 layers execute tests that extract .NET-specific statistics. The first layer – i.e., the Voyager Service layer- is the one that reports Voyager presentation layer metrics.The bottom four layers are similar to that of the Windows Generic Server model and elaborately discussed with in the Monitoring Unix and Windows Servers chapter.
