Managing the IBM Integration Bus

The eG Enterprise cannot automatically discover the IBM Integration bus server. This implies that you need to manually add the component for monitoring. Remember that the eG Enterprise automatically manages the components that are added manually. To add the target server, do the following:

  1. Log into the eG administrative interface.
  2. eG Enterprise cannot automatically discover IBM Integration Bus server. You need to manually add the server using the COMPONENTS page (see Figure 1 ) that appears when the Infrastructure -> Components -> Add/Modify menu sequence is followed. Remember that components manually added are managed automatically.

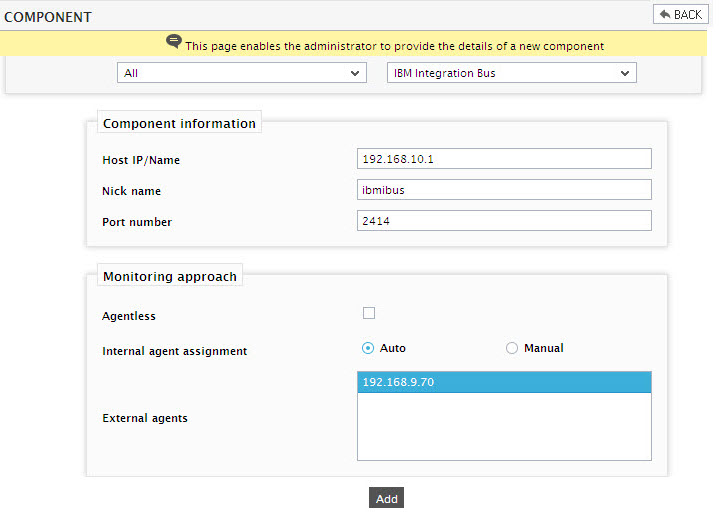

    Figure 1 : Adding an IBM Integration Bus server

  3. Specify the Host IP and the Nick name of the IBM Integration Bus server in Figure 1. The IBM Integration Bus server is monitored in both Agentless and Agent based manners. Then click the Add button to register the changes.
  4. When you attempt to sign out, a list of unconfigured tests will appear as shown in Figure 2.

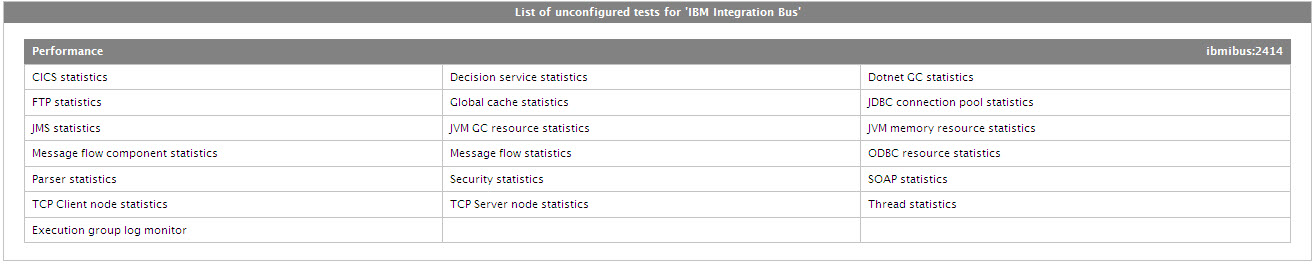

    Figure 2 : List of Unconfigured tests to be configured for the IBM Integration Bus server

  5. Click on any test in the list of unconfigured tests. For instance, click on the CICS Statistics test to configure it. To know how to configure the test, refer to Monitoring the IBM Integration Bus chapter.
  6. Once the tests are configured, signout of the eG administrative interface.
