Configuring Tests for the Microsoft OneDrive for Business Component

After adding a Microsoft OneDrive for Business component, click the Sign out button at the right, top corner of the eG admin interface to exit that interface. Doing so will invoke the list of tests that need to be manually configured for the managed OneDrive for Business component.

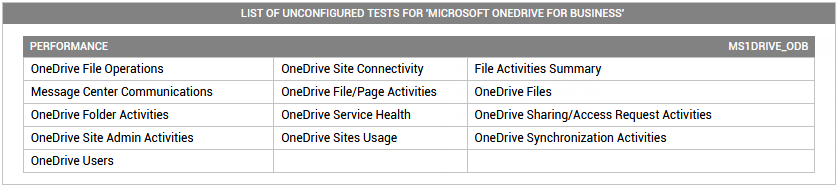

Figure 1 : List of tests to be manually configured for Microsoft OneDrive for Business

Click on any of the tests in Figure 1 to configure it. Say, you want to configure the OneDrive File Operations test. Clicking on that test in Figure 1 will open Figure 2.

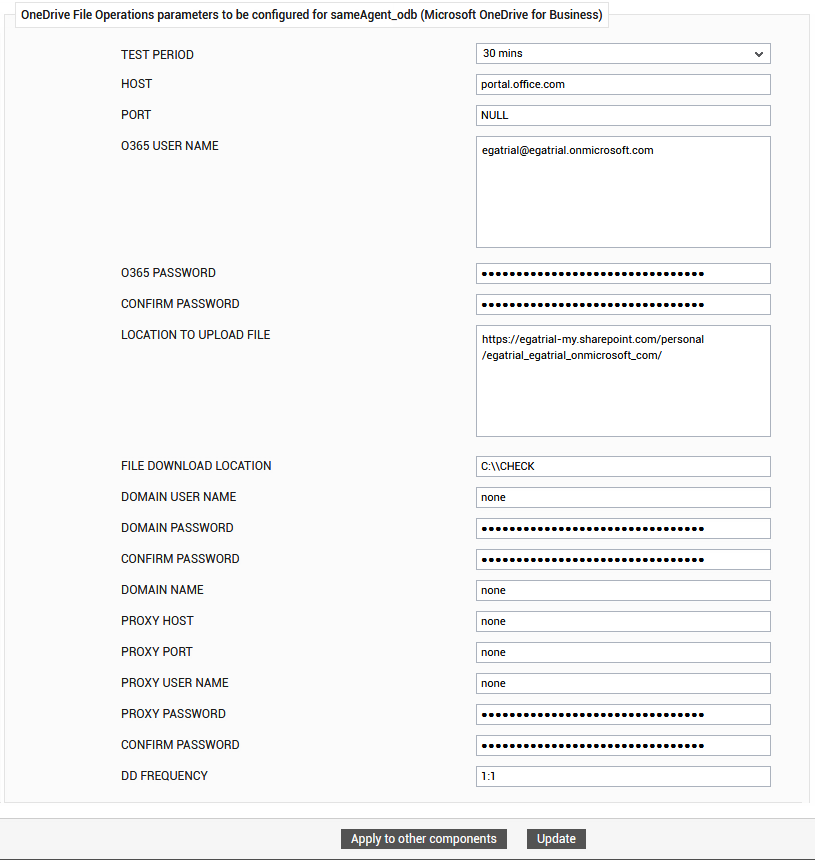

Figure 2 : Configuring the OneDrive File Operations test

This test emulates a file upload, download, checkin, checkout, and delete operation, and reports the status and time taken by each operation. In the process, the test proactively alerts administrators to the failure/slowness in a file operation, thereby enabling them to investigate and resolve the bottleneck before users complain. To know what parameters this test takes and how to configure it, refer to the OneDrive File Operations Test. Once the test is configured, click the Update button in Figure 2 to save the test configuration. Once again, try to sign out of the eG admin interface.

You will now be prompted to configure the OneDrive Site Connectivity test. For each site that is configured for monitoring, this test, at frequent intervals, emulates an HTTP/S connection to that site and reports on the availability and responsiveness of that site. Refer to the OneDrive Site Connectivity Test to know how to configure this test. Once the test is configured, click the Update button to save the changes. Finally, sign out of the eG admin interface.
