The Network Flows Layer

The tests mapped to this layer read the aggregated netflow statistics that the collector stores in the binary files, groups these statistics by network interface, and for each interface, reports the network traffic and bandwidth usage of:

• Top-N sources
• Top-N destinations
• Top-N conversations
• Top-N applications/protocols

You can also optionally configure this layer to report on the network activity of key sites and specific sources/destinations.

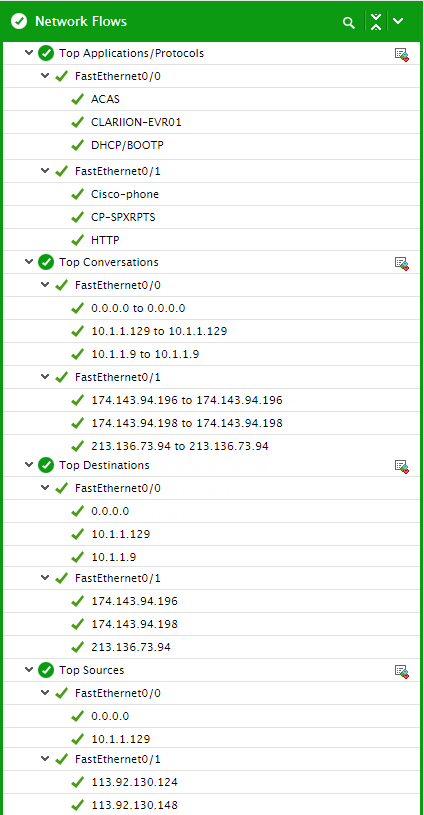

Figure 1 : The tests mapped to the Network Flows layer

To know what each test does and what metrics it reports, click on the corresponding test link below:

• Top Sources By Interfaces Test
• Top Destinations By Interfaces Test
• Top Applications/Protocols By Interfaces Test
• Top Conversations Test
• Key Sites Test
• Traffic from Sources Test
• Traffic to Destinations Test
