Managing the OpenVPN Access Server

The eG Enterprise cannot automatically discover the OpenVPN Access Server. This implies that you need to manually add the component for monitoring. Remember that the eG Enterprise automatically manages the components that are added manually. To manage a OpenVPN Access Server component, do the following:

  1. Log into the eG administrative interface.
  2. Follow the Components -> Add/Modify menu sequence in the Infrastructure tile of the Admin menu.

  3. In the COMPONENT page that appears next, select OpenVPN Access Server as the Component type. Then, click the Add New Component button. This will invoke .

    fig1

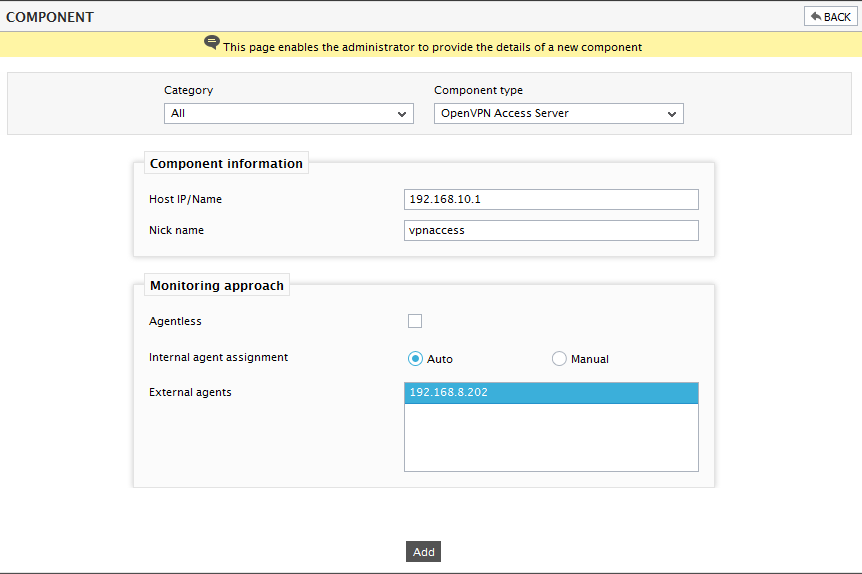

    Figure 1 : Adding an OpenVPN Access server

  4. Specify the Host IP/Name and Nick name for the OpenVPN Access Server (see Figure 1). Then, click on the Add button to register the changes.
  5. Next, try to sign out of the eG administrative interface. Now, you will be prompted to configure the Processes test. To know how to configure this test, refer to Processes Test page.
  6. Finally, signout of the eG administrative interface.
