Mailbox Statistics Test

Typically, the amount of mailbox storage available is determined by the mailbox type and the user’s subscription license. For instance, if a user has subscribed to Office 365 Enterprise E1, then the maximum storage available to the user mailbox is 50 GB and archive mailboxes is 50 GB. On the other hand, if a user has subscribed to Office 365 Enterprise E3, then the maximum storage available to the user mailbox is 100 GB and archive mailboxes is Unlimited.

Depending upon how every type of mailbox is used, administrators can reduce the size of the mailbox either per user or globally.

If for instance, a user mailbox runs out of storage space, then that mailbox will not be able to accept any more emails. To avoid this, administrators can configure Exchange Online to send out different types of notifications, namely - Warning, Prohibit Send, and Prohibit Send/Receive - to users, depending upon the usage of their mailbox and how soon its storage space will be exhausted. Such notifications prompt users to clear up storage space, so that they can continue using their mailboxes without any interruption.

Besides the individual users, administrators also need to keep tabs on how the users use the different mailboxes - eg., user mailboxes, archive mailboxes, clutter enabled mailboxes, etc. This will help administrators capture a potential storage space crunch much before it actually occurs and affects user productivity. Also, this may enable administrators rapidly identify users who are over-utilizing the storage space available to them. Administrators can in fact alert such users, even before Exchange Online sends out notifications! This is exactly what the Mailbox Statistics test helps administrators perform!

This test monitors the usage of the user mailboxes, and proactively alerts administrators if these mailboxes exhibit abnormal growth trends. Detailed diagnostics of this test lead administrators to those users with large-sized mailboxes, thus enabling them to accurately identify which user is over-utilizing the storage space available to them, so that they can warn such users of the impending space contention and urge them to take appropriate action.  Additionally, the test also alerts administrators whenever Warning, Prohibit Send, or Prohibit Send/Receive notifications are sent out to any user. Detailed diagnostics provided by the test pinpoint the users who have received such notifications, so that administrators can intervene and ensure that such users quickly clear up storage space and do not cause mail traffic to be blocked. The usage of archive, inactive, and clutter enabled mailboxes are also monitored and administrators alerted if such mailboxes show signs of over-utilization.

Target of the test : Exchange Online

Agent deploying the test : A remote agent

Outputs of the test : One set of results for the Office 365 tenant being monitored

Configurable parameters for the test

Parameters Description

Test period

How often should the test be executed

Host

The host for which the test is to be configured. By default, this is portal.office.com

O365 User Name, O365 Password, and Confirm Password

For execution, this test requires the privileges of an O365 user who is vested with the View-Only Audit Logs, View-Only Recipients, Mail Recipients, and Mail Import Export permissions. Configure the credentials of such a user against O365 User Name and O365 Password text boxes. Confirm the password by retyping it in the Confirm Password text box.

While you can use the credentials of any existing O365 user with the afore-said privileges, it is recommended that you create a special user for monitoring purposes using the Office 365 portal and use the credentials of that user here. To know how to create a new user using the Office 365 portal and assign the required privileges to that user, refer to Creating a New User in the Office 365 Portal.

Domain, Domain User Name, Domain Password, and Confirm Password

These parameters are applicable only if the eG agent needs to communicate with the Office 365 portal via a Proxy server.

In this case, in the Domain text box, specify the name of the Windows domain to which the eG agent host belongs. In the Domain User Name text box, mention the name of a valid domain user with login rights to the eG agent host. Provide the password of that user in the Domain Password text box and confirm that password by retyping it in the Confirm Password text box.

On the other hand, if the eG agent is not behind a Proxy server, then you need not disturb the default setting of these parameters. By default, these parameters are set to none.

Proxy Host, Proxy Port, Proxy User Name, and Proxy Password

These parameters are applicable only if the eG agent needs to communicate with the Office 365 portal via a Proxy server.

In this case, provide the IP/host name and port number of the Proxy server that the eG agent should use in the Proxy Host and Proxy Port parameters, respectively.

If the Proxy server requires authentication, then specify the credentials of a valid Proxy user against the Proxy User Name and Proxy Password text boxes. Confirm that password by retyping it in the Confirm Password text box. If the Proxy server does not require authentication, then specify none against the Proxy User Name, Proxy Password, and Confirm Password text boxes.

On the other hand, if the eG agent is not behind a Proxy server, then you need not disturb the default setting of any of the Proxy-related parameters. By default, these parameters are set to none.

DD Frequency

Refers to the frequency with which detailed diagnosis measures are to be generated for this test. The default is 2:1. This indicates that, by default, detailed measures will be generated every second time the test runs, and also every time the test detects a problem. You can modify this frequency, if you so desire. Also, if you intend to disable the detailed diagnosis capability for this test, you can do so by specifying none against DD Frequency.

Detailed Diagnosis

To make diagnosis more efficient and accurate, the eG Enterprise embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option. The option to selectively enabled/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled:

  • The eG manager license should allow the detailed diagnosis capability
  • Both the normal and abnormal frequencies configured for the detailed diagnosis measures should not be 0.
Measurements made by the test
Measurement Description Measurement Unit Interpretation

Total mailbox size

Indicates the total mailbox size across all user mailboxes.

Number

Use the detailed diagnosis of this measure to view the top-10 users, in terms of their mailbox size.

Mailboxes growth rate

Indicates the percentage growth in mailbox size.

Percent

This measure is computed using the following formula:

[{Total mailbox size in the current measurement period (-) Total mailbox size in the last measurement period} / Total mailbox size in the last measurement period]*100

If the value of this measure is increasing consistently and is rapidly approaching 100%, it is a clear indication that one/more users are over-utilizing their mailbox storage. To know who those users are, use the detailed diagnosis of the Total mailbox size measure. This will point you to the top-10 users with large-sized mailboxes.

Mailboxes exceeding warning quota

Indicates the number of user mailboxes, the storage space of which has been consumed beyond the Warning limit configured.

Number

A user receives a Warning notification by email if his/her mailbox is approaching the maximum size limit. This warning is intended to encourage users to delete unwanted mail.

To know which users' mailboxes are about to run out of storage space soon, use the detailed diagnosis of this measure. THe current size of each mailbox and the Warning quota set for that mailbox is also displayed, so that administrators can understand how soon each mailbox will be running out of space.

Inactive mailboxes

Indicates the number of inactive mailboxes.

Number

When an employee leaves your organization (or goes on an extended leave of absence), you can remove their Office 365 account. The employee's mailbox data is retained for 30 days after the account is removed. During this period, you can still recover the mailbox data by undeleting the account. After 30 days, the data is permanently removed. But if your organization needs to retain mailbox content for former employees, you can turn the mailbox into an inactive mailbox by placing the mailbox on Litigation Hold or applying an Office 365 retention policy to the mailbox in the Office 365 Security & Compliance Center and then removing the corresponding Office 365 account. The contents of an inactive mailbox are retained for the duration of the Litigation Hold placed on the mailbox or the retention period of the Office 365 retention policy applied to it before the mailbox was deleted. You can still recover the corresponding user account for a 30-day period. However, after 30 days, the inactive mailbox is retained in Office 365 until the hold or retention policy is removed.

By observing the variations to the Inactive mailboxes size measure over time, you can figure out if your inactive mailboxes are growing in size abnormally and draining valuable storage space. If this is the case, then you may want to change the hold duration of the Litigation Hold or Office 365 retention policy applied to the inactive mailbox, or completely remove the Litigation Hold or retention policy applied to that mailbox. This will ensure that the email contents are not retained for much longer, and are instead, deleted permanently. This will release storage space.

Inactive mailboxes size

Indicates the total size of inactive mailboxes.

GB

Archive mailboxes

Indicates the number of archive mailboxes.

Number

An archive mailbox is a specialized mailbox that appears alongside the users’ primary mailbox folders in Outlook or Outlook Web App.

Users can drag and drop messages from .pst files into the archive, for easy online access. Users can also move email items from the primary mailbox to the archive mailbox automatically, using Archive Polices, to reduce the size and improve the performance of the primary mailbox.

Users can restore items they have deleted from any email folder in their archive. When an item is deleted, it is kept in the archive’s Deleted Items folder. It remains there until it is manually removed by the user, or automatically removed by retention policies.

If the Archive mailboxes size measure reveals that the archive mailboxes are growing in abnormally in size, it could mean one or both of the following:

  • User mailboxes are rapidly running out of space, owing to which many emails have been moved to the archive mailboxes, thereby eroding the archive space;
  • The Deleted Items folder of the archive mailboxes is rapidly filling up, but is not being emptied at the same pace either manually or by the retention policy

To make more space in the archive mailboxes, you may want to consider manually removing emails from the mailboxes or their Deleted Items folder, or change the retention policy of the Deleted Items folder.

Archive mailboxes size

Indicates the total size of archive mailboxes.

GB

Clutter enabled mailboxes

Indicates the number of clutter-enabled mailboxes.

Number

The idea of the Clutter feature is to take “low-priority” emails and automatically move them out of your inbox into another folder. The thought is if there is a particular type of email you rarely read, but isn’t junk/spam, the message will be filed away into a folder where you can review it later. In order to achieve this goal, Exchange Online needs to be able to watch your behavior for a period of time before it can be “trained” on what to identify as clutter.

Clutter is now enabled by default for all mailboxes. Users can disable Clutter themselves via “Options” within OWA. Otherwise, administrators can disable Clutter via PowerShell with the “Set-Clutter” cmdlet.

Clutter disabled mailboxes

Indicates the number of clutter-disabled mailboxes

Number

Mailboxes exceeding prohibit send quota

Indicates the number of user mailboxes, the storage space of which has been consumed beyond the Prohibit send limit configured.

Number

A user receives a prohibit-send notification email when the mailbox size limit is reached. The user cannot send new messages until enough email is deleted to bring the mailbox below the size limit..

To know which users' mailboxes have reached their prohibit-send limit, use the detailed diagnosis of this measure. THe current size of each mailbox and the Prohibit Send quota set for that mailbox is also displayed, so that administrators can understand why the Prohibit-send notification was sent. Administrators can then urge the concerned users to quickly clear up space in their mailboxes by either manually deleting mails or moving mails to archive mailboxes.

Mailboxes exceeding prohibit send/receive quota

Indicates the number of user mailboxes, the storage space of which has been consumed beyond the Prohibit send/receive limit configured.

Number

A user receives a prohibit send/receive notification email when the mailbox size limit is reached. Subsequently, Exchange Online rejects any incoming mail when the mailbox size limit is reached, and sends a non-delivery report (NDR) to the sender. The sender has the option to try resending the mail later. To receive messages again, the user must delete email until the mailbox is below the size limit.

To know which users' mailboxes have reached their prohibit send/receive limit, use the detailed diagnosis of this measure. The current size of each mailbox and the Prohibit Send/Receive quota set for that mailbox is also displayed, so that administrators can understand why the Prohibit Send/Receive notification was sent.

The detailed diagnosis of the Total mailbox size measure lists the top-10 users, in terms of their mailbox size. This will enable administrators identify those users whose mailboxes are growing abnormally in size. A quick glance at the detailed metrics also points administrators to those users whose mailboxes may run out of space very shortly - i.e., mailboxes that may be approaching the Warning quote configured. Before a Warning notification is sent to such users, administrators themselves may alert such users of the potential storage space crunch and prompt them to act fast. Likewise, the detailed metrics may also reveal the users whose mailboxes have already reached their maximum storage limit. Administrators can urge such users to clean up unnecessary mails from their mailboxes and free up storage space, so that Exchange Online does not prohibit such mailboxes from sending or receiving mails.

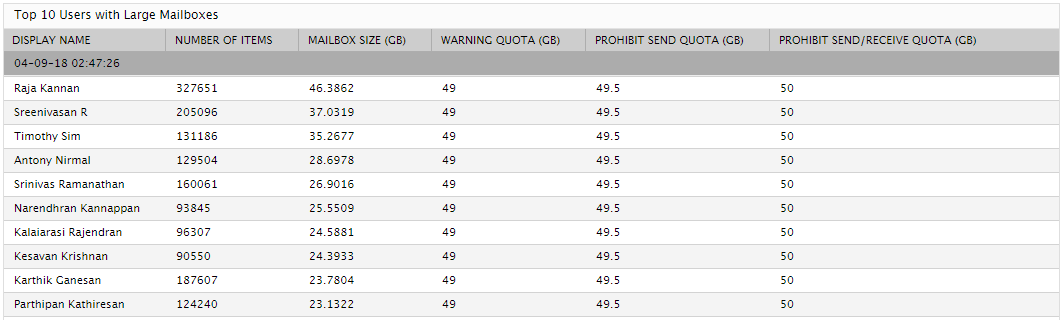

Figure 1 : The detailed diagnosis of the Total mailbox size measure
