Audio Streams Test

A/V conferencing enables real-time audio and video communications between the Microsoft Teams users. In environments where users use audio streams for communication, it becomes mandatory for the administrator to check the quality of the audio conferencing experience and the load on the Microsoft Teams so that administrators may proactively be alerted to abnormalities/technical glitches in the conferences. This is where the Audio Streams test helps.

Using this test, you can easily figure out the total number of audio streams and the count of audio streams that were classified as poor, good and unclassified. Administrators can also figure out the reason on why the audio streams were classified as poor - is it due to high roundtrip? or high packet loss? or jitter? or high degradation?

Target of the test : Microsoft Teams

Agent deploying the test : A remote agent

Outputs of the test : One set of results for the monitored Microsoft Teams

Configurable parameters for the test
Parameters Description

Test period

How often should the test be executed

Host

The host for which the test is to be configured. By default, this is portal.office.com

O365 User Name, O365 Password, and Confirm Password

For execution, this test requires the privileges of an O365 user who has been assigned the Service support admin role and is vested with the View-Only Audit Logs and Team administrator permissions. Configure the credentials of such a user against O365 User Name and O365 Password text boxes. Confirm the password by retyping it in the Confirm Password text box.

While you can use the credentials of any existing O365 user with the afore-said privileges, it is recommended that you create a special user for monitoring purposes using the Office 365 portal and use the credentials of that user here. To know how to create a new user using the Office 365 portal and assign the required privileges to that user, refer to Creating a New User in the Office 365 Portal.

Domain Name, Domain User Name, Domain Password, and Confirm Password

These parameters are applicable only if the eG agent needs to communicate with the Office 365 portal via a Proxy server.

In this case, in the Domain text box, specify the name of the Windows domain to which the eG agent host belongs. In the Domain User Name text box, mention the name of a valid domain user with login rights to the eG agent host. Provide the password of that user in the Domain Password text box and confirm that password by retyping it in the Confirm Password text box.

On the other hand, if the eG agent is not behind a Proxy server, then you need not disturb the default setting of these parameters. By default, these parameters are set to none.

Proxy Host, Proxy Port, Proxy User Name, Proxy Password and Confirm Password

These parameters are applicable only if the eG agent needs to communicate with the Office 365 portal via a Proxy server.

In this case, provide the IP/host name and port number of the Proxy server that the eG agent should use in the Proxy Host and Proxy Port parameters, respectively.

If the Proxy server requires authentication, then specify the credentials of a valid Proxy user against the Proxy User Name and Proxy Password text boxes. Confirm that password by retyping it in the Confirm Password text box. If the Proxy server does not require authentication, then specify none against the Proxy User Name, Proxy Password, and Confirm Password text boxes.

On the other hand, if the eG agent is not behind a Proxy server, then you need not disturb the default setting of any of the Proxy-related parameters. By default, these parameters are set to none.

Show All Poor Streams

By default, this flag is set to No indicating that the detailed diagnosis for all the measures of this test will show only the Top N poor streams configured against the Show N Poor Streams parameter. Set this flag to Yes if you wish to view the detailed diagnosis of all poor streams identified by this test.

Show N Poor Streams

By default, this parameter is set to 10, indicating that the detailed diagnostics will report the top-10 poor streams. You can change the 'N' in Show N Poor Streams by specifying any number of your choice in this text box.

DD Frequency

Refers to the frequency with which detailed diagnosis measures are to be generated for this test. The default is 1:1. This indicates that, by default, detailed measures will be generated every time the test runs, and also every time the test detects a problem. You can modify this frequency, if you so desire. Also, if you intend to disable the detailed diagnosis capability for this test, you can do so by specifying none against DD Frequency.

Detailed Diagnosis

To make diagnosis more efficient and accurate, the eG Enterprise embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option. The option to selectively enabled/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled:

  • The eG manager license should allow the detailed diagnosis capability
  • Both the normal and abnormal frequencies configured for the detailed diagnosis measures should not be 0.
Measurements made by the test
Measurement Description Measurement Unit Interpretation

Unclassified streams

Indicates the number of streams that were marked as Unclassified.

Number

A stream is marked Unclassified when Interactive Connectivity Establishment (ICE) connectivity fails or when all the metrics required to compute the stream classification are not reported.

If ICE connectivity succeeded for an Unclassified stream, the stream is likely considered Unclassified because key stream metrics were not reported. There are a few reasons these metrics may not be reported:

  • QoE reports were not received
  • Short calls
  • Low packet utilization

Total audio streams

Indicates the total number of audio streams.

Number



Poor streams

Indicates the total number of audio streams that were classified as poor.

Number

The detailed diagnosis of this measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the count of poor audio streams.

Percentage of poor audio streams

Indicates the percentage of audio streams that were classified as Poor.

Pecentage



Poor audio with high roundtrip

Indicates the number of times the audio was classified as poor due to high roundtrip.

Number

The detailed diagnosis of this measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times the audio was classified as poor due to high roundtrip.

Poor audio due to high packet loss

Indicates the number of times audio was classified as poor due to large amount of packets being lost.

Number

The detailed diagnosis of this measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times the audio was classified as poor due to large amount of packets being lost.

Poor audio due to jitter

Indicates the number of times audio was classified as poor due to jitter.

Number

The detailed diagnosis of this measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times audio was classified as poor due to jitter.

Poor audio due to high degradation

Indicates the number of times audio was classified as poor due to average network mean opinion score degradation.

Number

This measure indicates how much network loss and jitter have impacted the quality of received audio.

The detailed diagnosis of this measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times audio was classified as poor due to average network mean opinion score degradation.

Poor audio with high concealed ratio

Indicates the number of times audio was classified as poor due to average ratio of the number of audio frames with concealed samples generated by packet loss healing to the total number of audio frames.

Number

The detailed diagnosis of this measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times audio was classified as poor due to average ratio of the number of audio frames with concealed samples generated by packet loss healing to the total number of audio frames.

Good streams

Indicates the total number of audio streams that were classified as Good.

Number

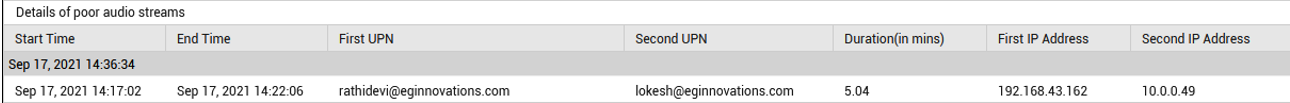

The detailed diagnosis of the Poor streams measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the count of poor audio streams.

Figure 1 : The detailed diagnosis of the Poor streams measure

The detailed diagnosis of the Poor audio due to jitter measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times audio was classified as poor due to jitter.

Figure 2 : The detailed diagnosis of the Poor audio due to jitter measure

The detailed diagnosis of the Poor audio due to high packet loss measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times the audio was classified as poor due to large amount of packets being lost.

Figure 3 : The detailed diagnosis of the Poor audio due to high packet loss measure

The detailed diagnosis of the Poor audio due to high degradation measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times audio was classified as poor due to average network mean opinion score degradation.

Figure 4 : The detailed diagnosis of the Poor audio due to high degradation measure

The detailed diagnosis of the Poor audio with high roundtrip measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times the audio was classified as poor due to high roundtrip.

Figure 5 : The detailed diagnosis of the Poor audio with high roundtrip measure

The detailed diagnosis of the Poor audio with high concealed ratio measure lists the start time, end time, first UPN, second UPN, first IP address, second IP address, conference ID and the number of times audio was classified as poor due to average ratio of the number of audio frames with concealed samples generated by packet loss healing to the total number of audio frames.

Figure 6 : The detailed diagnosis of the Poor audio with high concealed ratio measure
