SAML Enablement for Single Sign-On

Single Sign-On (SSO) is an authentication process that allows a user to access multiple applications with one set of login credentials. By logging in once, you can access all services registered with the credentials.

The key benefits of SSO are as follows:

  • Improves user productivity
  • Reduces risk of bad password habits
  • Simplifies login process for end-users

eG Enterprise supports SSO through SAML (Security Assertion Markup Language). SAML is an open standard that allows identity providers (IdP) to pass authorization credentials to service providers (SP).

A service provider (SP) needs the authentication from the identity provider (IdP) to grant authorization to the user. An identity provider performs the authentication that the end user is who they say they are and sends that data to the service provider along with the user’s access rights for the service.

An SSO Login can be SP-initiated or IdP-initiated. In the case of an SP-initiated SSO login:

  1. An end-user first connects to the SP and selects the SAML IdP that will provide the authentication.
  2. Upon selection of an IdP, the SP will automatically direct the end-user to the login page of the IdP, where the user will have to provide his/her login credentials.
  3. Once the IdP verifies and validates the credentials, the end-user will be automatically logged into the SP portal. What an end-user can do in the SP portal depends upon the access rights/privileges that have been configured for that user in the SP.

In the case of an IdP-initiated login:

  1. An end-user provides his/her login credentials in the IdP's login page.
  2. Upon successfully logging into the IdP's portal, the end-user chooses the SP that he/she wants to connect to.
  3. Once the SP is chosen, the end-user will be automatically directed to the SP's portal. What an end-user can do in the SP portal depends upon the access rights/privileges that have been configured for that user in the SP.

eG Enterprise supports both SP-initiated and IdP-initiated SSO logins via SAML. To configure support for such logins, the following broad steps should be followed:

  1. Enable support for SSO logins;
  2. Configure SAML as the Authentication Provider for eG Enterprise;
  3. Configure eG Enterprise as an SP in one/more IdPs;
  4. Configure one/more IdPs in eG Enterprise;
  5. Configure eG users to use SAML for authenticating their logins

Each of these steps have been elaborately discussed below.

Enabling the SSO Feature in eG Enterprise

To achieve this, follow the steps below:

  1. Login to the eG admin interface.
  2. Follow the Settings -> Manager menu sequence.
  3. Expand the Account Security node in the left panel of the MANAGER SETTINGS page, and select the Single Sign-On sub-node within.

  4. The right panel will change to display a Single Sign-On section (see Figure 13).

    Enabling Support for SSO Login

    Figure 13 : Enabling support for SSO login

  1. In the right panel of Figure 13, set the Enable single sign-on (SSO) flag to Yes, to enable support for SSO.

  2. If SSO is enabled, you can configure any user login to eG Enterprise to be authenticated by an IdP that the user chooses at the time of the login. This means that after a user successfully logs into eG Enterprise via an IdP, a session for that user will be open both on eG Enterprise and the IdP. However, by default, if the user logs out of eG Enterprise, that user's session on the IdP will continue to remain open. This is because, the Allow the user to logout from the SAML Identity Provider (IdP) flag is set to No by default.

    Sometimes, an open session on an IdP may leave the door open for Cross-Site Request Forgery (CSRF) and session hijacking attacks. To avoid such attacks, you may want to enable SAML Single Logout (SLO). This additional protocol helps address the problem of orphaned logins. If SLO is enabled, then all server sessions established via SAML SSO can be automatically terminated by initiating the logout process once. SLO can be initiated from either the SP or the IdP. Where eG Enterprise is the SP, you can initiate SLO from eG Enterprise by setting the Allow the user to logout from the SAML Identity Provider (IdP) flag to Yes. This setting ensures that if a user who is logged into eG Enterprise via SAML SSO logs out, his session on the IdP is automatically killed.

    Note:

    • As mentioned earlier, if the Allow the user to logout from the SAML Identity Provider (IdP) flag is set to No, then, even if a user logs out of eG Enterprise, his/her user session on IdP will continue to remain active. In this case, if the same user attempts to connect to the eG management console yet again, he/she will not be expected to enter his/her login credentials again; instead, the user will automatically login to the console upon hitting the eG manager's URL. This is because, when connecting to the eG manager, the user will only 'reconnect' to the session that is already open on the IdP. Since the IdP has already validated the user credentials in the 'active' session, the user will be allowed to automatically login to the eG management console.
    • If the user clears his/her browser cache after logging out of an SP, then that user's session on IdP will be terminated instantly, even if the Allow the user to logout from the SAML Identity Provider (IdP) flag is set to No.
  3. Finally, click the Update button.

Configuring SAML as the Authentication Provider for eG Enterprise

For this, do the following:

  1. Login to the eG admin interface.

  2. Follow the Settings -> Manager menu sequence. Figure 14 will then appear. Click the General Settings node in the tree structure in the left panel of Figure 14. Upon selection, the contents of the right panel will change to display the General Settings section, as depicted by Figure 14.

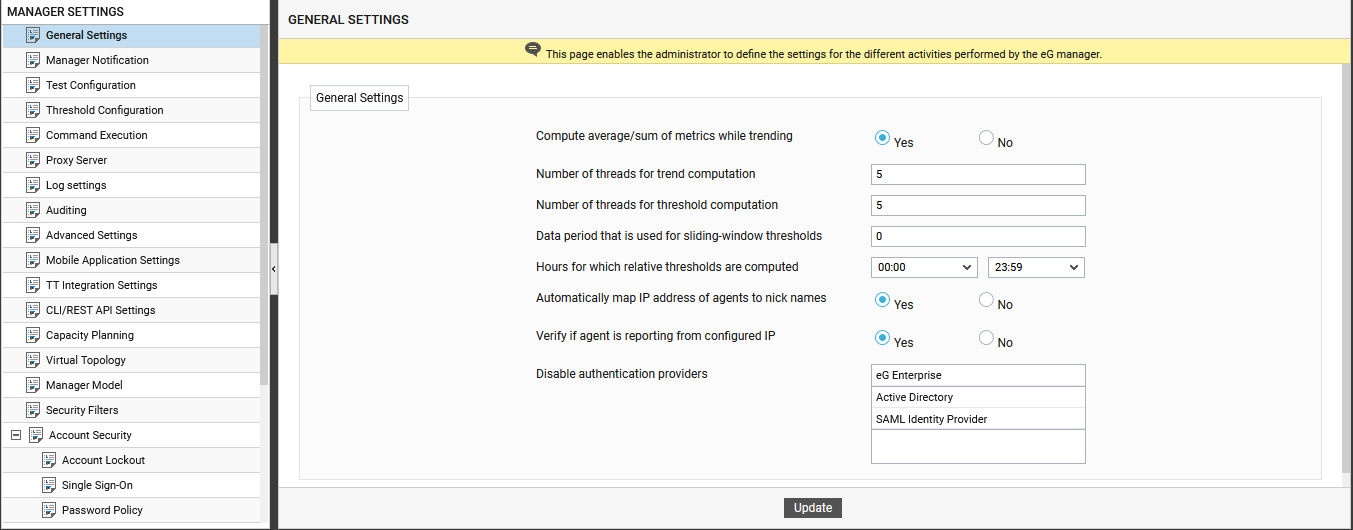

    Figure 14 : Selecting the authentication provider for logins

  3. From the Disable SAML Identity Providers list, select the IdPs that you want to disable. The unselected IdP will be automatically enabled. For instance, to set SAML Identity Provider as the IdP, select the eG Enterprise and Active Directory options in Figure 14, so the selection is automatically disabled, and SAML Identify Provider is enabled. Finally, click the Update button.

Configuring eG Enterprise as a Service Provider in the IdP

The next step is to configure eG Enterprise as an SP in the IdP. The procedure for this differs from one IdP to another. Some of the popular IdPs are OneLogin, Active Directory (AD), Microsoft Azure Active Directory (AD), AD FS, Okta etc. The procedure for configuring OneLogin and Azure AD are detailed below. For any other IdP, please refer to the documentation provided by that IdP.

Configuring eG Enterprise as a Service Provider in OneLogin

To register eG Enterprise as an SP with OneLogin, you can follow the steps detailed below:

  1. Login to the OneLogin console.

  2. Click on the Configuration option in the left panel of the console to configure a new SP (see Figure 15).

    Configuring IdP with SP Name

    Figure 15 : Configuring the IdP with the name of the SP

  3. In the right panel, provide a Display Name for the new SP.
  4. Upload an icon for the SP that you want displayed in OneLogin.

  5. Then, if you want to initiate Single Logout (SLO) from the IdP, provide the SAML Single Logout URL of the SP - in our case, this should be the Single Logout URL of eG Enterprise (see Figure 16). In case of IdP-initiated SLO, whenever a user attempts to log out of the IdP, the IdP generates a digitally signed LogoutRequest and appends it to the SP's SLO endpoint, which is a dedicated URL that expects to receive SLO messages from the IdP. This is the URL that you should specify against SAML Single Logout URL. Once the SP receives the LogoutRequest at the SAML Single Logout URL, it validates the request, terminates its own login session for the end-user, and sends out a LogoutResponse to the IdP. Upon receipt of the response from SP, the IdP terminates its session.

    Specifying Single Logout URL and ACS URL

    Figure 16 : Specifying the Single Logout URL and ACS URL of eG Enterprise

  6. Then, specify the ACS URL Validator of eG Enterprise. To configure an IdP to work with an SP, an Assertion Consumer Service (ACS) URL has to be specified. The ACS URL is an endpoint on the service provider where the identity provider will redirect to with its authentication response. This endpoint should be an HTTPS endpoint because it will be used to transfer Personally Identifiable Information (PII).

    Note:

    Where eG Enterprise is the SP, follow the steps below to determine the values to be configured against Identifier ID, Logout URL and Reply URL (or ACS URL):

    • Login to the eG admin interface.

    • Follow the User Management -> SAML Identity Providers menu sequence.

    • When Figure 17 appears, you will find a list of existing identity providers displayed therein. Click on the identity provider that maps to the eG manager.

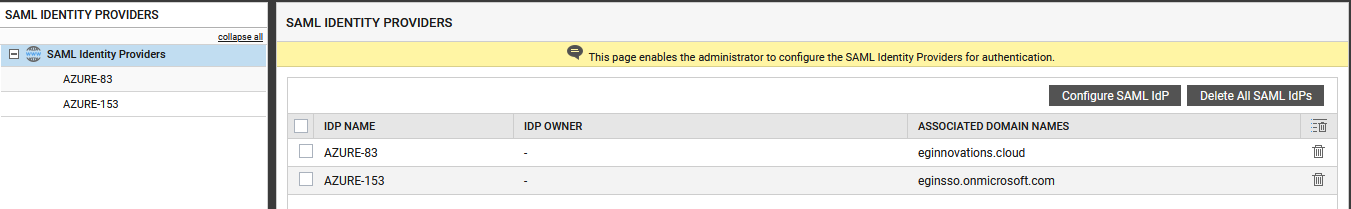

      Figure 17 : List of existing SAML Identity providers

    • Figure 18 will then appear. From the What would you like to do? drop-down in Figure 18, select the Modify SAML IdP Details option (see Figure 19).

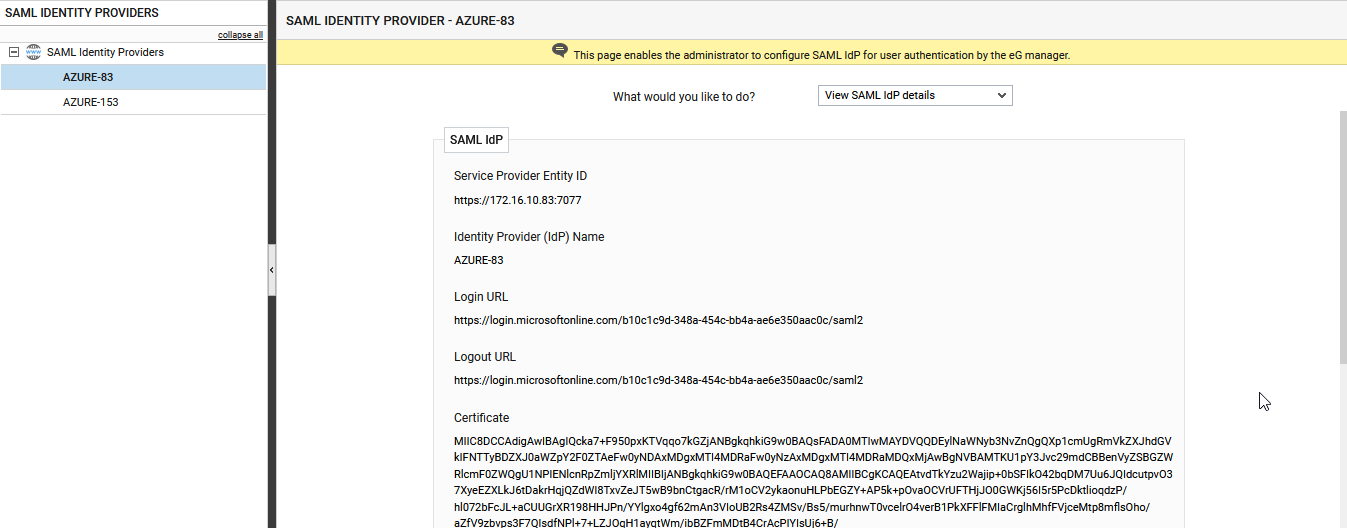

      Figure 18 : Viewing the details of the chosen Identity provider

      Figure 19 : Modifying the details of the chosen Identity provider

    • Click on the button adjacent to the Service Provider Entity ID display to view/download the metadata pertaining to the service provider. Figure 20 will then appear.

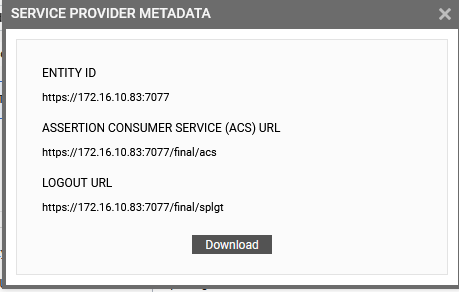

      Figure 20 : Viewing the metadata of the service provider

    • Figure 20 clearly displays the Logout URL and ACS URL of the service provider - i.e., eG Enterprise. Copy these values and set them as SAML Single Logout URL and ACS URL Validator, respectively, in Figure 28.

  7. Finally, click the Save button to save the configuration.

Configuring eG Enterprise as a Service Provider in Microsoft Entra

To register eG Enterprise as an SP with Microsoft Entra, do the following:

  1. Login to the Microsoft Entra Admin Center as a valid Azure user. Figure 21 will then appear.

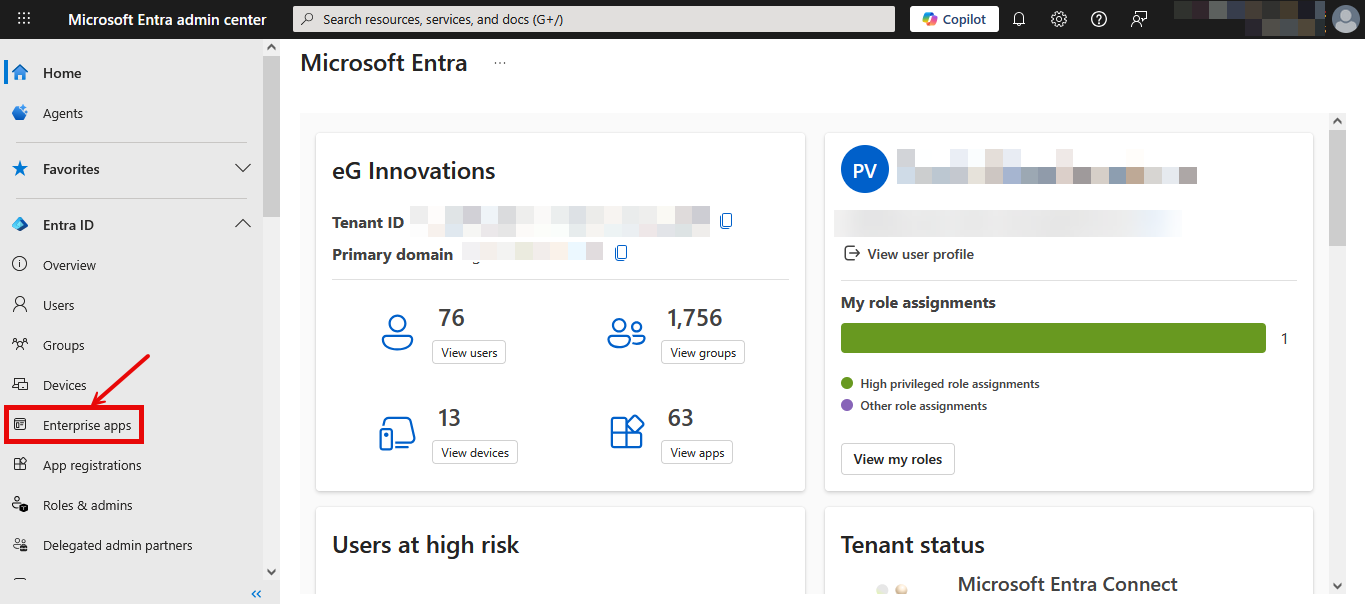

    Figure 21 : The Microsoft Entra Admin Center

  2. Next, click on the Enterprise apps option in the left panel of Figure 21. Figure 40 will then appear.

    Figure 22 : Clicking on New application option

  3. Figure 44 will then appear. Here, click on the Create your own application link to create a new application.

    Figure 23 : Clicking on the Create your own application link

  4. In Figure 24 that then appears, specify the Name of the custom application that you intend to create. Then, make sure that the Integrate any other application you don't find in the gallery (Non-gallery) option is chosen. Finally, click the Create button in Figure 24.

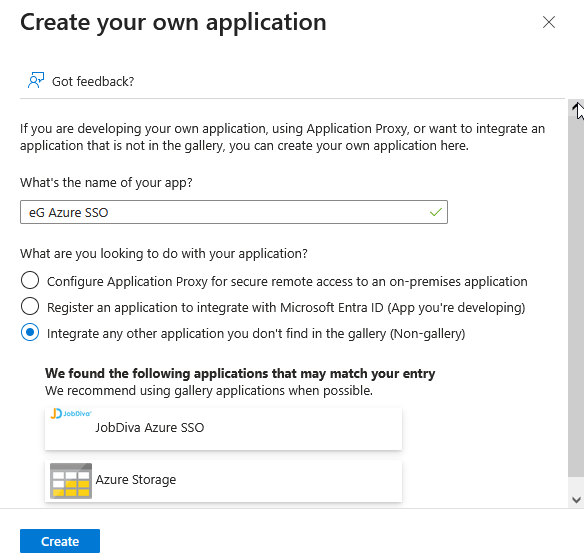

    Figure 24 : Creating a custom application

  5. Once the application is successfully created, Figure 25 will appear. Click on the Get started link in the Set up single sign on tile in Figure 25 to configure SSO for the new application.

    Figure 25 : Clicking on the Set up single sign on tile

  6. When Figure 26 appears, select the SAML tile.

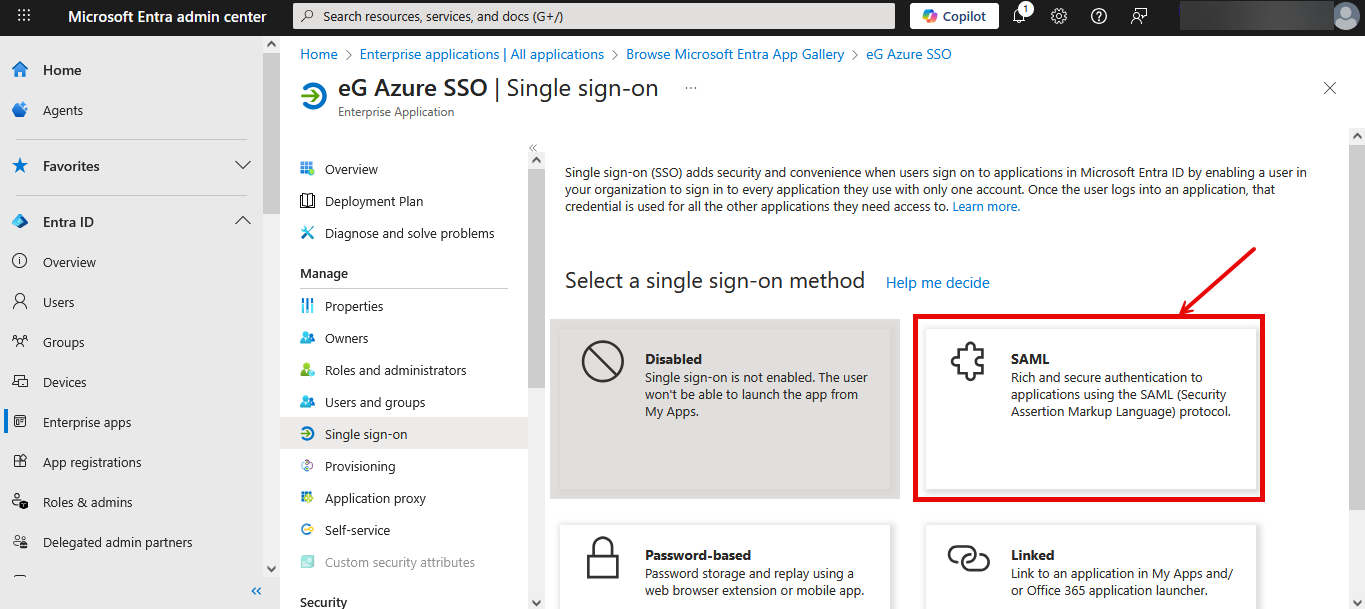

    Figure 26 : Selecting the SAML tile

  7. Next, click on the Edit option in the Basic SAML Configuration section of Figure 27.

    Figure 27 : Clicking on the Edit option in the Basic SAML Configuration section

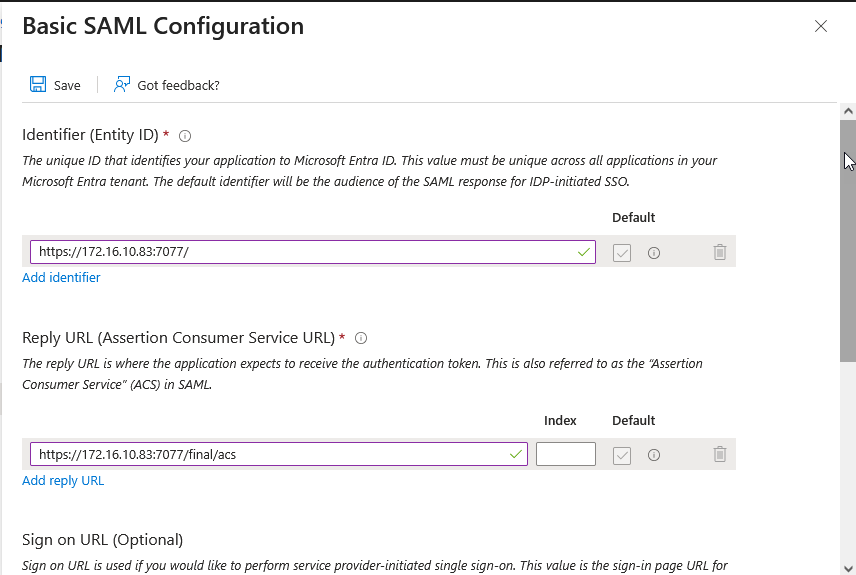

  8. In Figure 28 that then appears, first click on the Add identifier link and then specify the Identifier (Entity) IDof the eG manager in the text area that appears.

    Figure 28 : Configuring the Identity ID and Reply URL

  9. Then, click on the Add reply URL link and specify the Reply URL (Assertion Consumer Service URL) in the text area that appears. To configure an IdP to work with an SP, an Assertion Consumer Service (ACS) URL - i.e., Reply URL - has to be specified. The ACS URL is an endpoint on the service provider where the identity provider will redirect to with its authentication response. This endpoint should be an HTTPS endpoint because it will be used to transfer Personally Identifiable Information (PII).

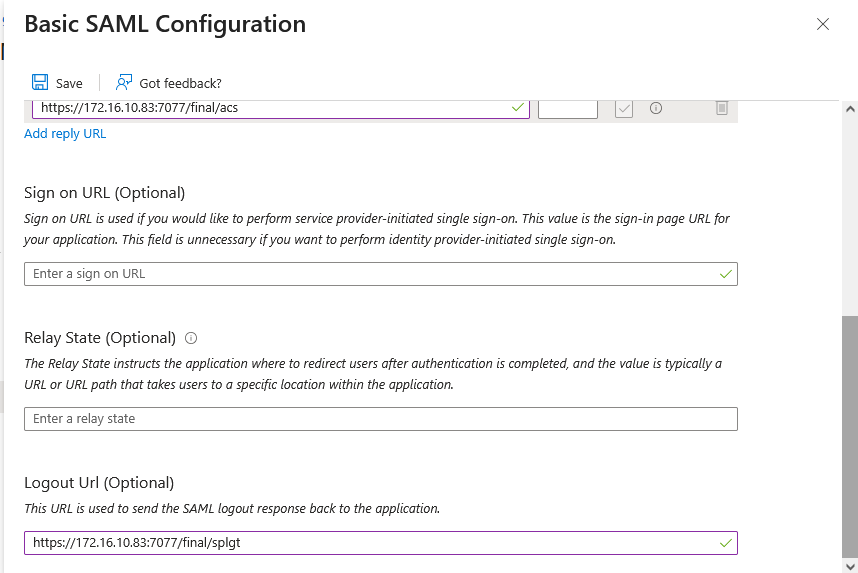

  10.  Next scroll down Figure 28 to specify the Logout URL (see Figure 29). If you want to initiate a log out from the IdP, provide the logout URL of the SP - in our case, this should be the logout URL of eG Enterprise (see Figure 16). In case of IdP-initiated logout, whenever a user attempts to log out of the IdP, the IdP generates a digitally signed LogoutRequest and appends it to the SP's SLO endpoint, which is a dedicated URL that expects to receive SLO messages from the IdP. This is the URL that you should specify against Logout URL. Once the SP receives the LogoutRequest at the Logout URL, it validates the request, terminates its own login session for the end-user, and sends out a LogoutResponse to the IdP. Upon receipt of the response from SP, the IdP terminates its session.

    Figure 29 : Configuring the Logout URL

    Note:

    Where eG Enterprise is the SP, follow the steps below to determine the values to be configured against Identifier ID, Logout URL and Reply URL (or ACS URL):

    • Login to the eG admin interface.

    • Follow the User Management -> SAML Identity Providers menu sequence.

    • When Figure 17 appears, you will find a list of existing identity providers displayed therein. Click on the identity provider that maps to the eG manager.

      Figure 30 : List of existing SAML Identity providers

    • Figure 18 will then appear. From the What would you like to do? drop-down in Figure 18, select the Modify SAML IdP Details option (see Figure 19).

      Figure 31 : Viewing the details of the chosen Identity provider

      Figure 32 : Modifying the details of the chosen Identity provider

    • Copy the Service Provider Entity ID displayed in Figure 19 and set it as the Identifier (Entity) ID in Figure 28. Then, click on the button adjacent to the Service Provider Entity ID display to view/download the metadata pertaining to the service provider. Figure 20 will then appear.

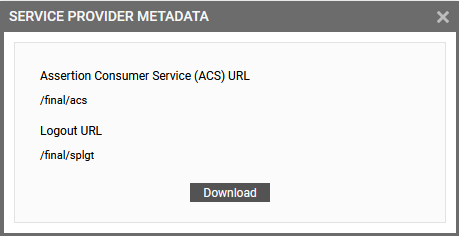

      Figure 33 : Viewing the metadata of the service provider

    • Figure 20 clearly displays the Logout URL and ACS URL (i.e., Reply URL) of the service provider - i.e., eG Enterprise. Copy these values and set them as Reply URL and Logout URL in Figure 28 and Figure 29 respectively.

  11. Finally, click the Save button at the top of Figure 28 to save the configuration.Figure 34 will then appear.

    Figure 34 : The page that appears once the basic SAML configuration is saved

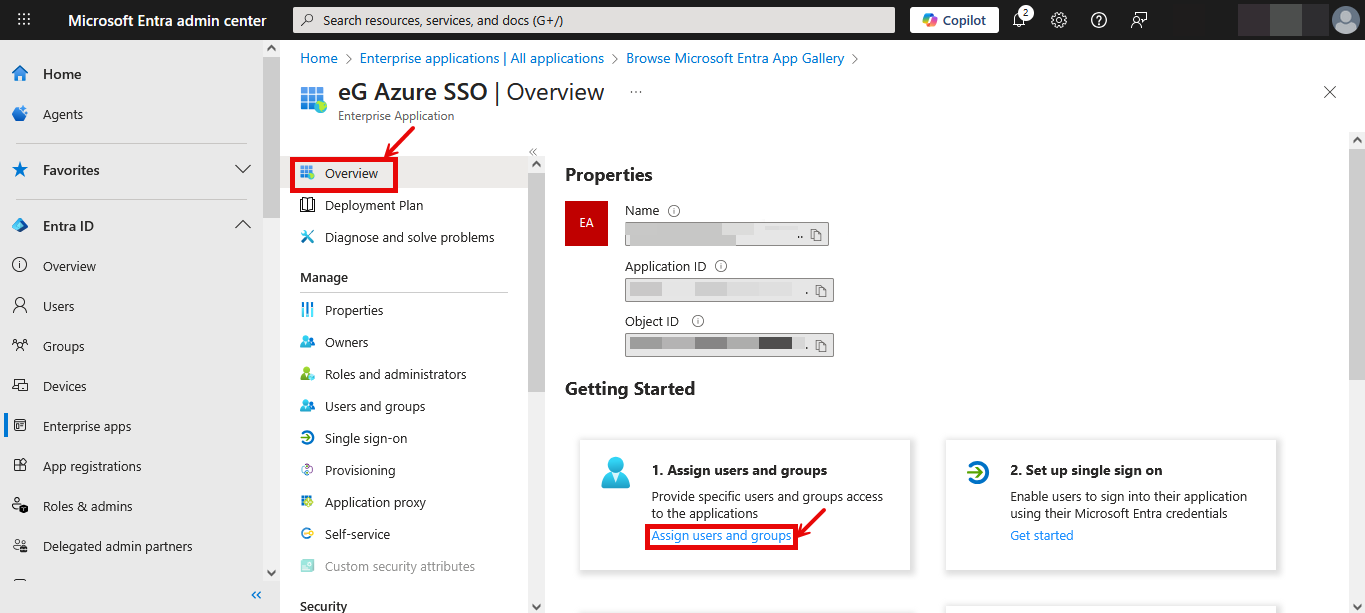

  12. Next, click on the Overview option in the left panel of Figure 34. In the right panel, click on the Assign users and groups link in the Assign users and group tile this time. Figure 35 then appears.

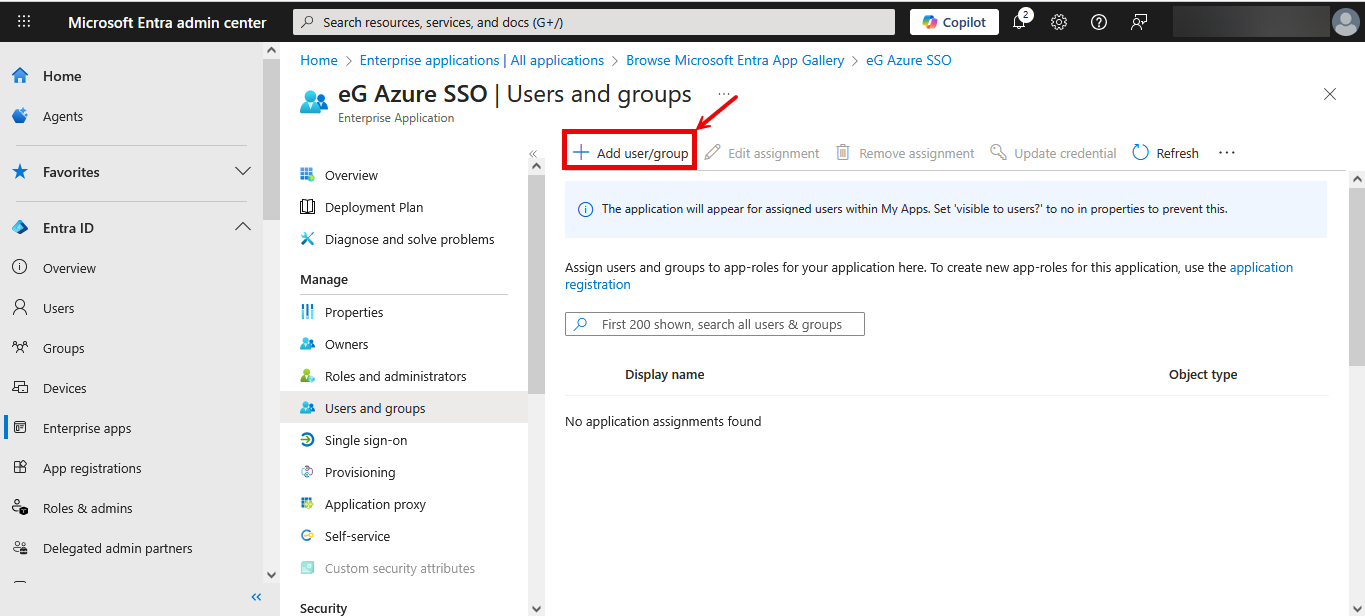

    Figure 35 : The Users and groups panel

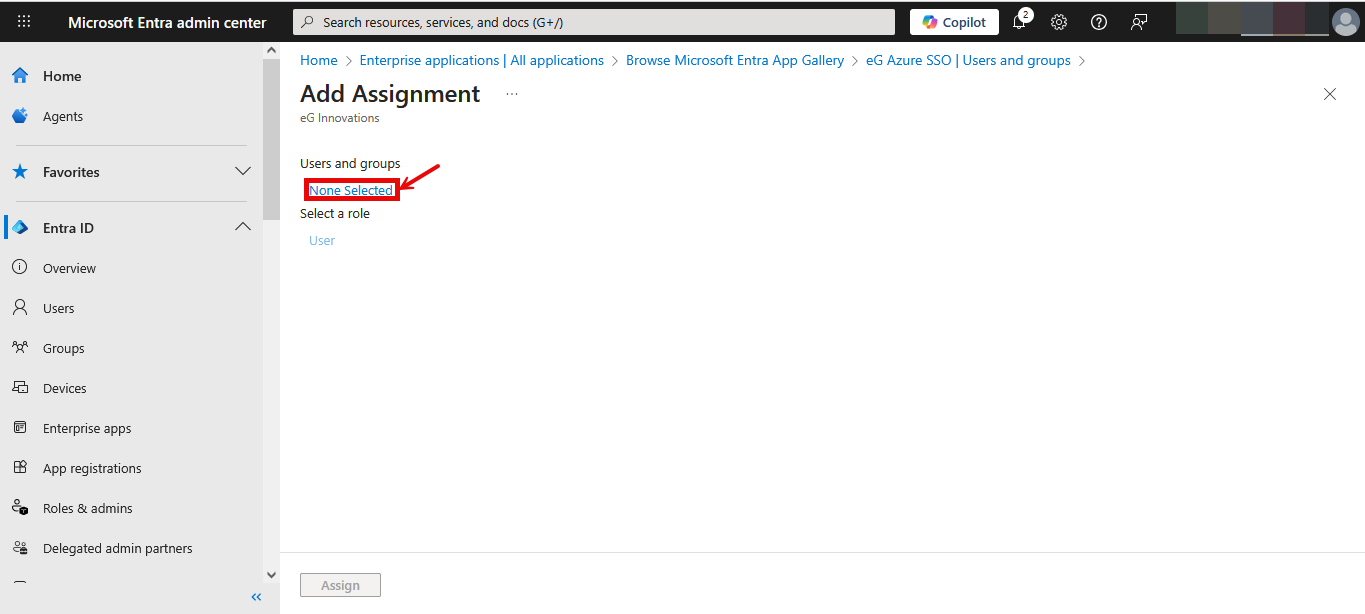

  13. To add a new user, click on the Add user/group link indicated by Figure 35. Figure 36 then appears. Click on the None Selected link highlighted in Figure 36.

    Figure 36 : Clicking on the None Selected link

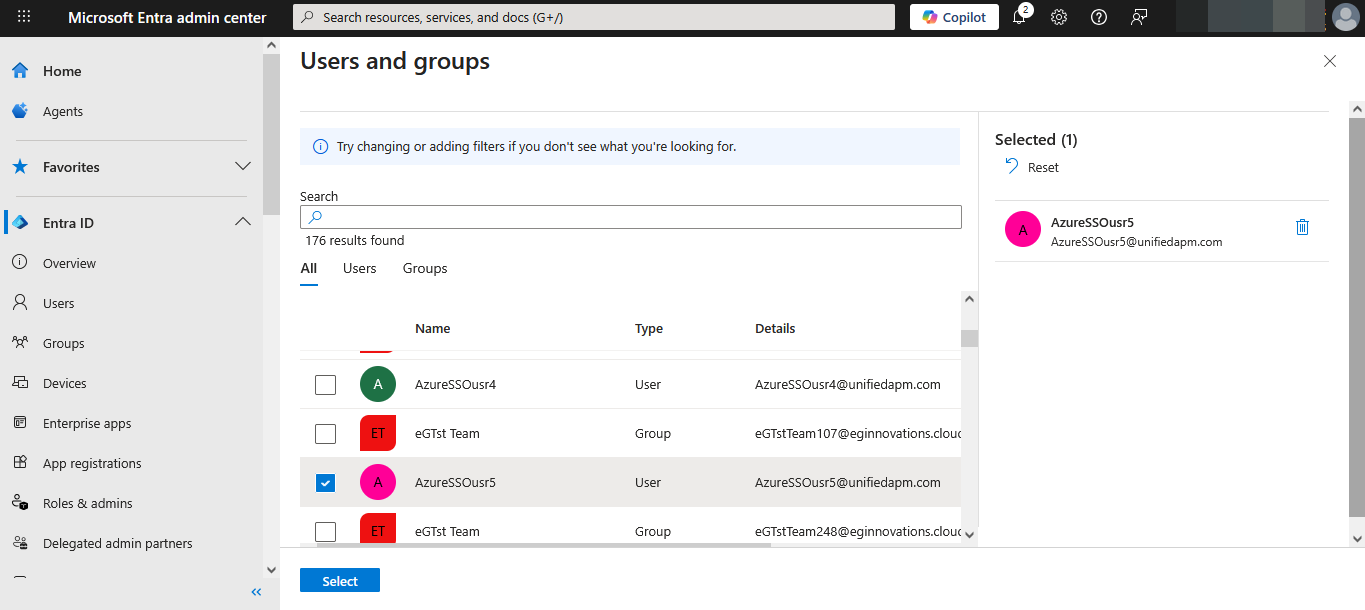

  14. Figure 37 will then appear. From the list of users displayed in Figure 37, select the user to whom the custom application is to be assigned. Then, click on the Select button therein.

    Figure 37 : Selecting the user

  15. Figure 38 will then appear. Click on the Assign button in Figure 38 to assign the application to the chosen user.

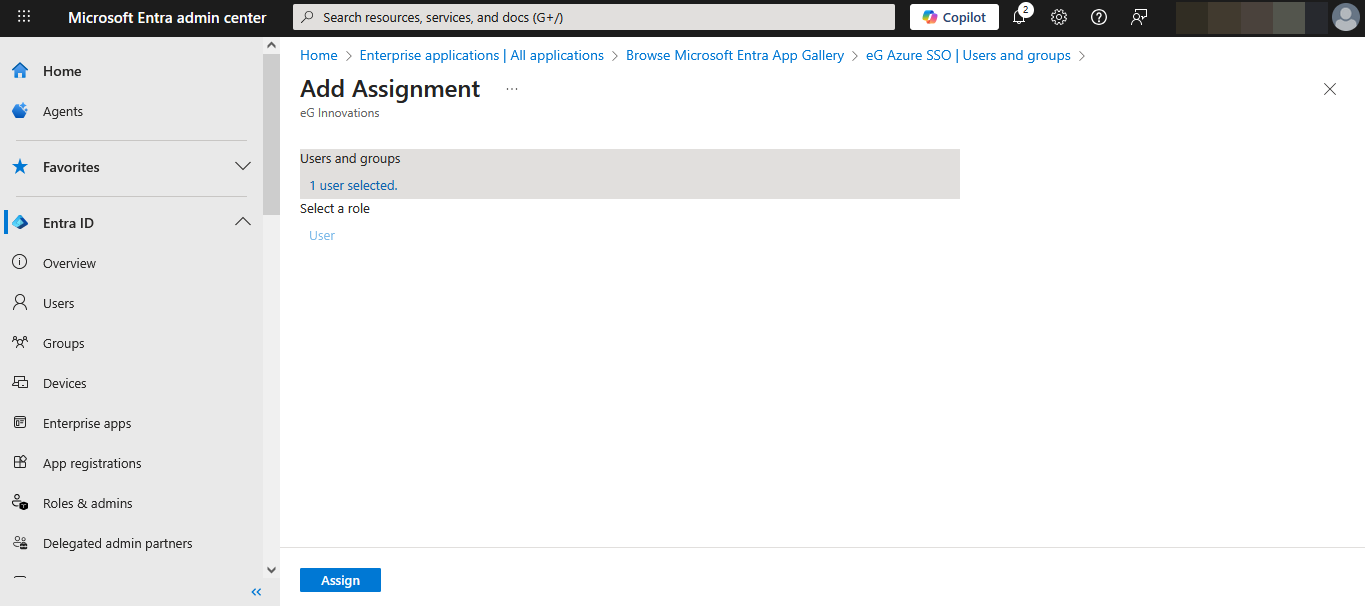

    Figure 38 : Assigning the application to the chosen user

Configuring One/More IdPs in eG Enterprise

After registering eG Enterprise as an SP with the IdP, proceed to configure the IdP in eG Enterprise. For that, do the following:

  1. Login to the eG admin interface.
  2. Follow the User Management -> SAML Identity Providers menu sequence.

  3. Figure 39 then appears, listing all the IdPs (if any) that pre-exist in the eG Enterprise system. To create a new IdP, click the Configure SAML IdP button in Figure 39.

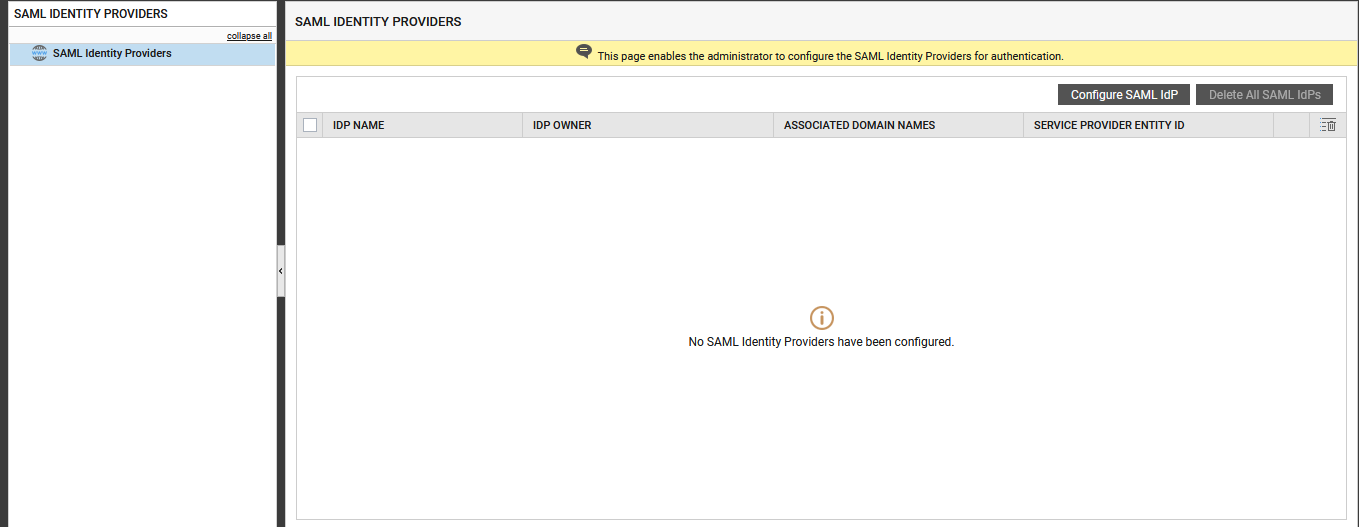

    Figure 39 : Clicking the Configure SAML IdP button

  4. Figure 40 then appears. Here, first specify the Identify Provider (IdP) Name. Then, specify the Login URL of the IdP. If Microsoft Entra is the IdP, then make sure you specify the Login URL displayed in Figure 28 here.

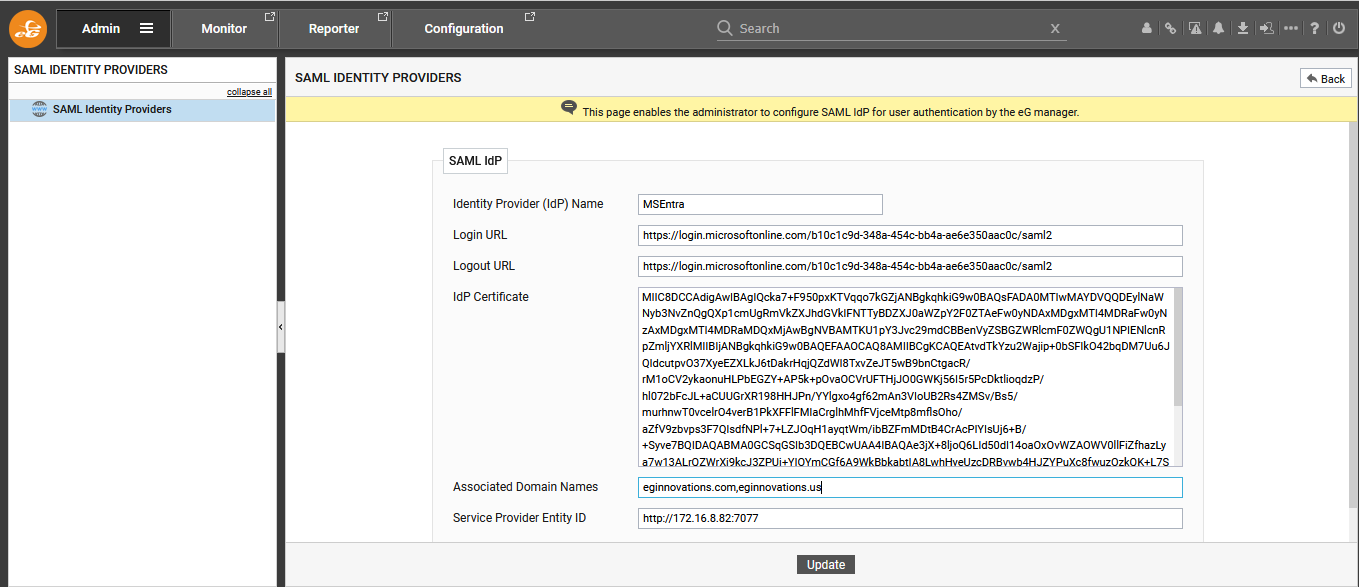

    Figure 40 : Configuring an IdP in eG Enterprise

  5. Next, if you want the SP - i.e., eG Enterprise - to initiate a SAML Single Logout (SLO), then specify the Logout URL of the IdP here. In case of an SP-initiated SLO, the initiating SP generates a digitally signed LogoutRequest SAML message and returns it to the end-user's browser. The IdP's SLO endpoint is appended with the LogoutReqest. The endpoint URL is a dedicated URL that expects to receive SLO messages from the SP. This is the URL that you should specify against Logout URL. When configuring OneLogin as the IdP, specify the SAML Single Logout URL that OneLogin provides as the Logout URL in Figure 40. When configuring Microsoft Entra as the IdP on the other hand, specify the Logout URL displayed in Figure 29 here.

  6. Then, configure the IdP Certificate. When registering eG Enterprise as an SP with the target IdP, the IdP will issue a trusted X.509 certificate for the eG manager. Copy the contents of that certificate and paste it here. If Microsoft Entra is being configured as the IdP for the eG manager, then you first need to download the certificate. This can be achieved only when configuring SAML-based sign-on for the custom application you create on Microsoft Entra. This procedure has been explained in detail in the previous section. When you reach step 7 of that procedure, you will find that a Set up Single Sign-On with SAML page opens (see Figure 27). Scroll down that page until the SAML Certificates section becomes visible (see Figure 41).

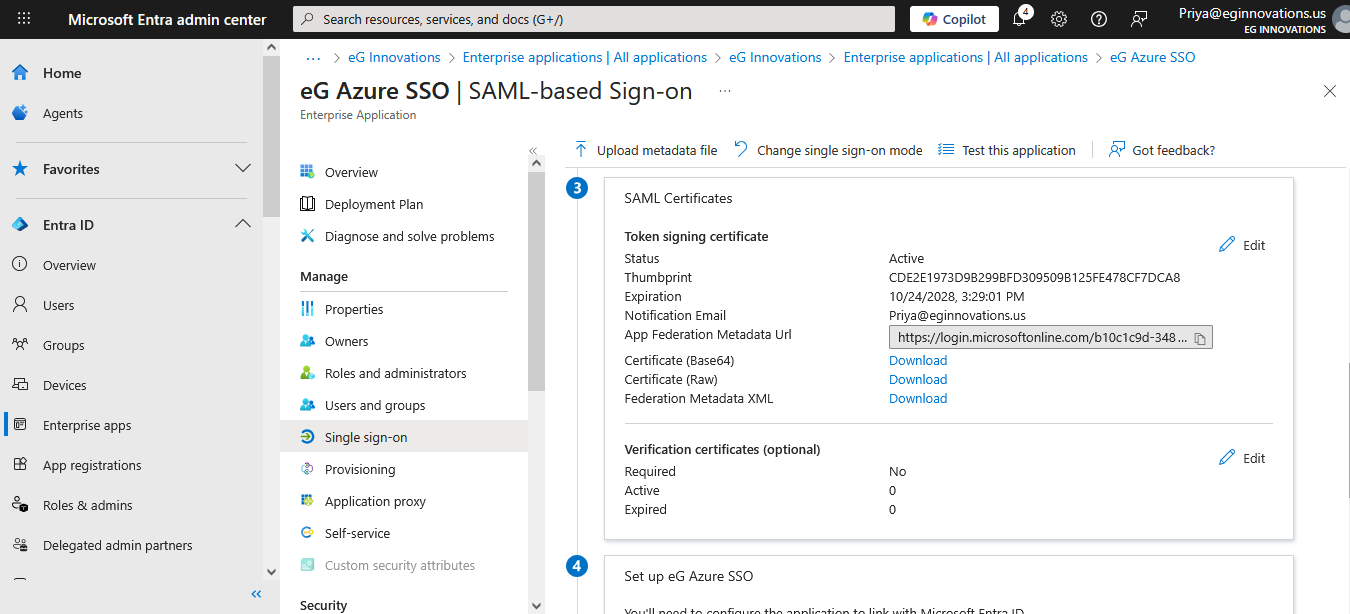

    Figure 41 : Downloading SAML Certificate

    Click on the Download link against Certificate (Base64) in Figure 41. Once the certificate is successfully downloaded, open the certificate in a text editor, copy its contents, and paste it in the IdP Certificate text area of Figure 40.

  7. Next, against Associated Domain Names, specify a comma-separated list of fully qualified domain names - e.g., eginnovations.com,eginnovations.cloud. This way, you can have the eG manager integrate with multiple domains managed by the IdP being configured. Whenever a user belonging to any of the associated domains logs into eG Enterprise, the eG manager will use the domain name provided at login to automatically discover the IdP, connect to that IdP, and have the login authenticated.
  8. Then, specify the Service Provider Entity ID. By default, the eG manager's URL will be displayed here, as the eG manager is the default service provider.
  9. Finally, click the Update button in Figure 40 to save the configuration.

  10. Figure 42 will then appear, displaying the newly added IdP.

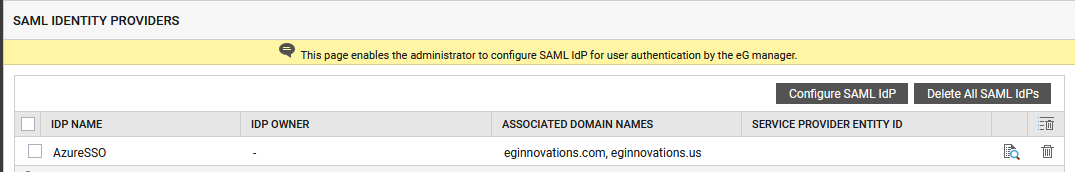

    Figure 42 : The newly added IdP being listed

  11. To delete any IdP listed here, click on the icon corresponding to it in Figure 42.

  12. To view/download the metadata of an IdP, click on the icon corresponding to it in Figure 42. Doing so will invoke Figure 43, displaying the Logout URL and ACS URL of the said IdP.

    Figure 43 : Viewing the IdP's metadata

  13. To download the displayed metadata, click on the Download button in Figure 43.

Configuring eG Users to Use SAML for Authenticating their Logins

The next step in the SAML-enablement process is to configure individual eG Enterprise users to use SAML for authenticating their logins. For this, do the following:

  1. Login to the eG admin interface.
  2. Follow the User Management -> Add User menu sequence.

  3. When adding a user, choose the User role. Then, set SAML as the User authentication mode (see Figure 44).

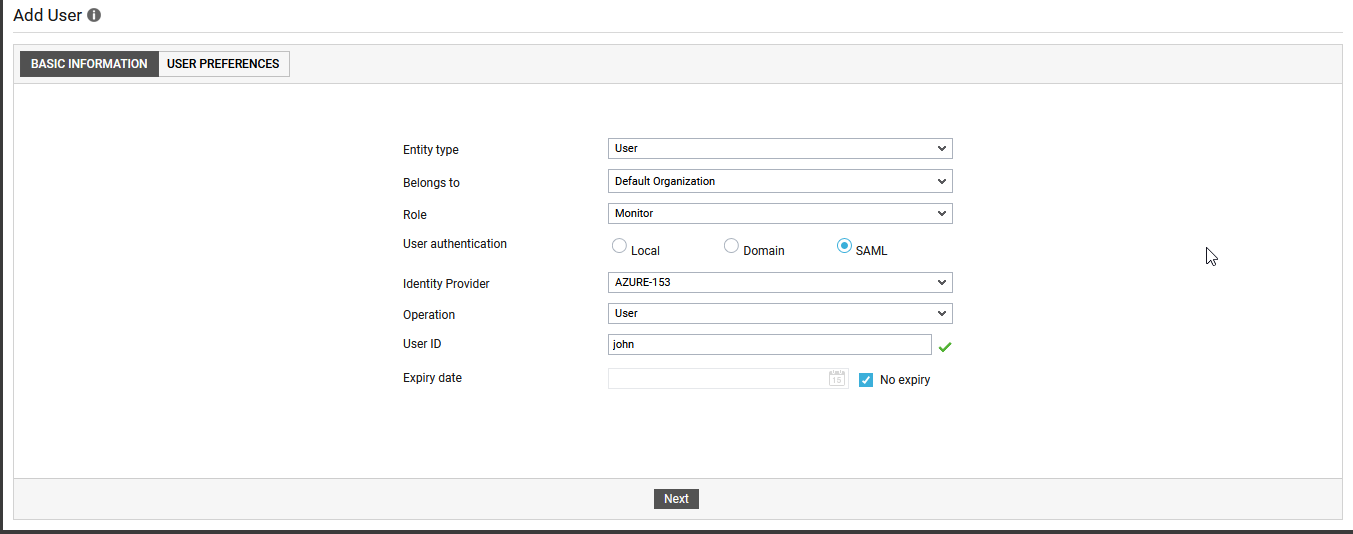

    Figure 44 : Setting SAML as the User type of a new eG user

  4. Once SAML is chosen as the User authenticationmode, you will be required to choose the Identity Provider that eG Enterprise should integrate with for SAML authentication.
  5. After selecting the IdP, provide the User ID. Note that you will not have to provide a password for that user in eG Enterprise. This is because, the login password will be created in and maintained by the IdP.
  6. Click the Next button to configure the user's alerting preferences, privileges, and monitoring scope.
  7. Finally, click the Add button to add the user.
