Retrieving Zone Details from eG Manager

To retrieve the details of the zones and the elements associated with the zone (services, segments, servers etc), administrators can use the eG REST API. The URL can be specified in the following format:

URL: http://<eG manager IP:port>/api/eg/miscservice/getZoneMapping

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

Not Applicable



Success Response
Type Code Content

JSON

200

[

{

"zone": "Zone-VDI",

"Group": [],

"Service": [],

"Segment": [],

"Server": [

"eGDP169:7077",

"java183:13600",

"win183",

"mssql100:1433"

]

},

.

.

.

}

]



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Unauthorized user"}

JSON

500 Server Error

{"code": 500,"error": " Server Error "}

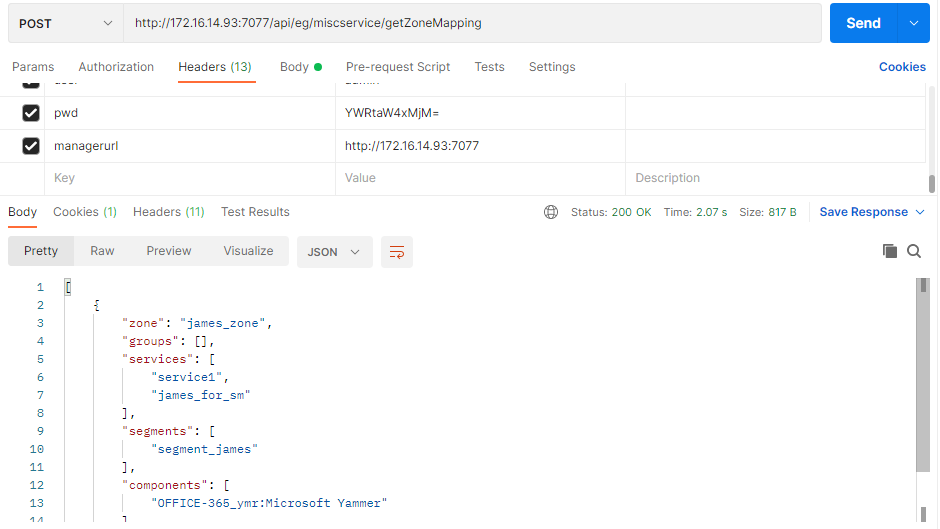

Figure 1 : Retrieving the details of the zones created in the target environment using Postman REST Client

Retrieving Zone Details from eG Manager using cURL

To retrieve the details of the zones and the elements associated with the zone (services, segments, servers etc) in the target environment using cURL, the command should be specified in the following format:

curl -location -request POST "http://<eG Manager IP:Port>/api/eg/miscservice/getZoneMapping" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>" --data-raw ""

Figure 2 shows an example for retrieving the details of all the zones created in the target environment using cURL.

Figure 2 : Retrieving the details of the zones created in the target environment using cURL
