Configuring Tests for Boomi Service

The eG Enterprise cannot automatically discover Boomi Service. This is why, you need to manually add a Boomi Service component to the eG Enterprise system to monitor it. The steps for manually adding the Boomi Service component are detailed below:

1. After adding Boomi Service component, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

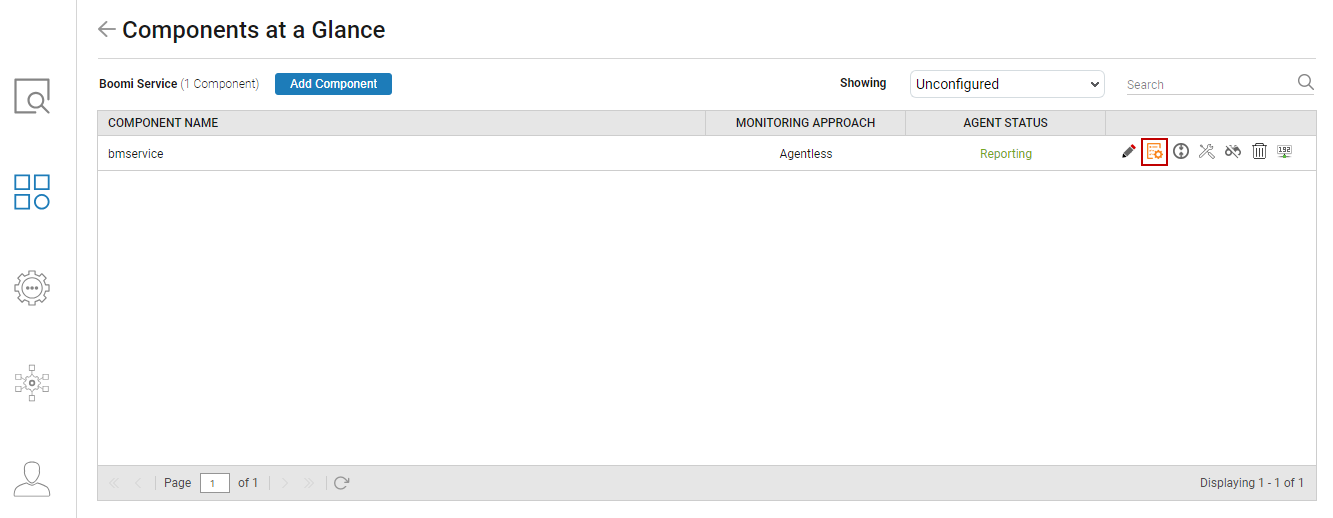

   Figure 1 : Listing the newly added Boomi Service component

2. To collect the performance metrics, you may need to configure the tests that are mapped to the Boomi Service component. To configure the tests that need manual configuration, click on the icon in Figure 1.

3. Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

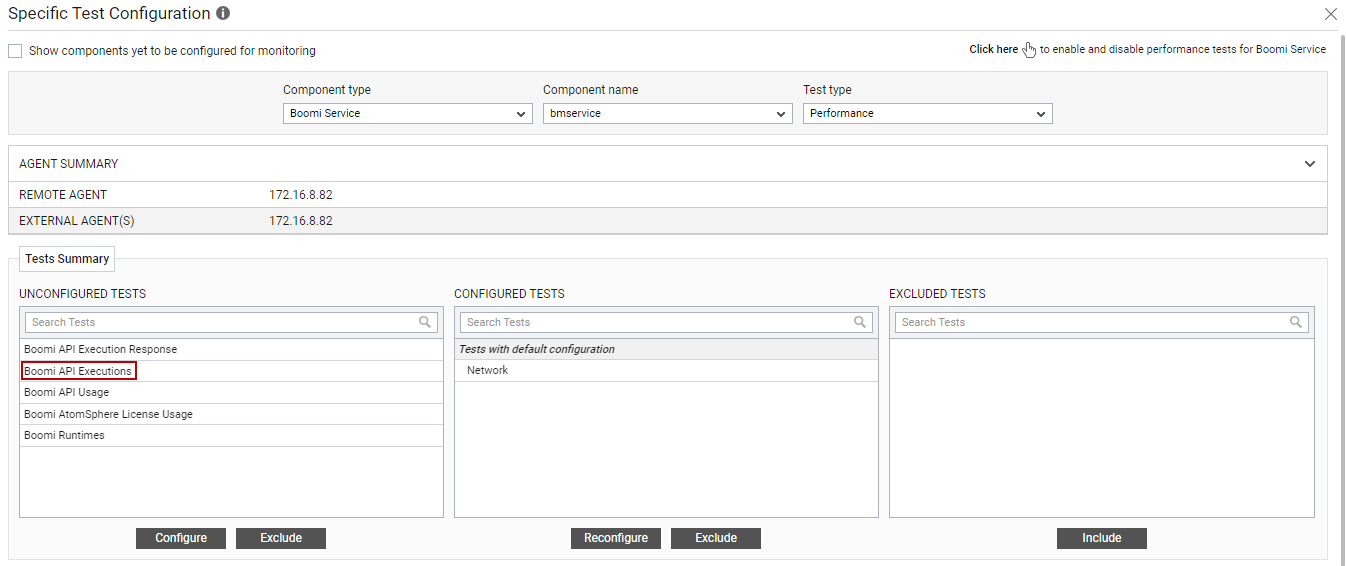

   Figure 2 : The list of unconfigured tests for Boomi Service component

4. Click on any of the tests in Figure 2 to configure it. For instance, if you click on the Boomi API Executions test, Figure 3 will appear. To know how to configure this test, refer to Boomi API Executions Test

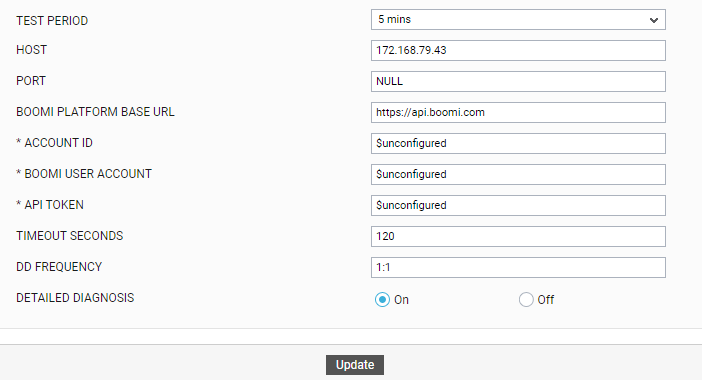

   Figure 3 : Configuring the Boomi API Executions test

5. Click the Update button in Figure 3 to update the test configuration. This will automatically configure all the other unconfigured tests for the Boomi Service component.
